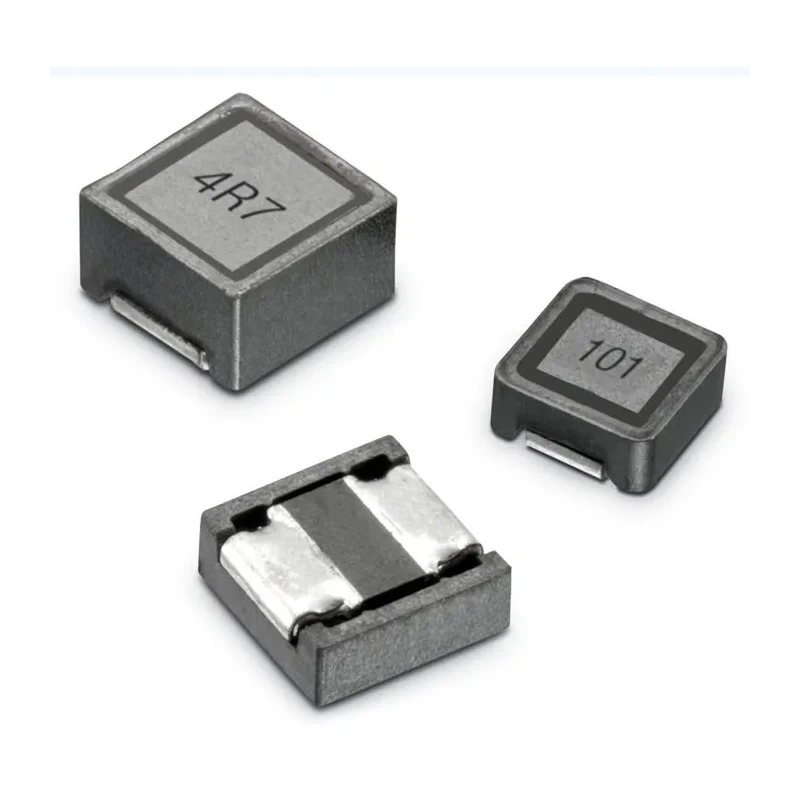

Wurth Elektronik WE-LQFS 3818 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±30% 940 mA 74406032100
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.8mm |
| Length | 3.8mm |
| Depth | 3.8mm |
| Packaging | Tape & Reel |
| Series | WE-LQFS |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | JEDEC JS709B, RoHS, REACH |
| Package/Case | 3818 |
| Maximum DC Current | 940mA |
| Pin Count | 2 |
| Maximum DC Resistance | 228mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 66MHz |
| Inductor Construction | Wirewound |
Key Features
- This inductor has a compact 3818 package size with dimensions 3.8 mm length, 1.8 mm height, and 3.8 mm depth.
- The wirewound construction with ferrite core provides effective EMI shielding and high performance.
- It operates within a temperature range of -40°C to 125°C to suit industrial applications.
- The inductor has a maximum DC resistance of 228 mΩ ensuring efficient current handling.
- Compliance with JEDEC JS709B, RoHS, and REACH standards guarantees quality and environmental safety.
- Termination style is Surface Mount for easy PCB integration and tape & reel packaging supports automated assembly.
- Its maximum self-resonant frequency is 66 MHz, making it suitable for high-frequency circuits.
Product Description
Wurth Elektronik 74406032100 WE-LQFS Shielded Wirewound Surface Mount Inductor with Ferrite Core features an inductance of 10 μH with ±30% tolerance and supports a maximum DC current of 940 mA. Designed in a 3818 package size, this SMD inductor includes a ferrite core to enhance magnetic properties and reduce electromagnetic interference.
This wirewound inductor is molded and equipped with shielding to minimize EMI emissions, making it ideal for use in high-efficiency switching controllers, integrated DC-DC converters, portable electronic devices such as smartphones, digital cameras, tablets, embedded laptops, and PCs. It operates reliably within a temperature range from -40°C to 125°C, suitable for various demanding industrial and commercial electronic applications.
The device presents a maximum DC resistance of 228 mΩ which supports efficient current conduction while maintaining low power losses. The termination style optimized for surface mount technology facilitates seamless PCB assembly with tape and reel packaging format for automated manufacturing processes.
Compliant with JEDEC JS709B, RoHS, and REACH standards, this inductor ensures environmental compliance and reliability. Its maximum self-resonant frequency of 66 MHz enables stable operation in high-frequency electronic circuits.
This inductor has a compact 3818 form factor measuring 3.8 mm by 1.8 mm by 3.8 mm. The ferrite core with wirewound construction provides superior shielding performance for sensitive applications. Suitable in embedded laptop, mobile, industrial and telecommunications equipment.
Package contains a reel of surface mount inductors, optimized for automated PCB mounting. Operating temperature range from -40°C up to 125°C supports broad application scenarios.
Discover more Wurth Elektronik Surface Mount Inductors and other fine electronic components in the Electronics & Electricals category on EnvMart for your industrial and commercial design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 10 μH with a tolerance of ±30%.
It supports a maximum DC current of 940 mA.
The dimensions of the 3818 package are 3.8 mm in length, 1.8 mm in height, and 3.8 mm in depth.
The maximum DC resistance is 228 mΩ, which helps in efficient current conduction.
It operates within a temperature range of -40°C to 125°C.
The maximum self-resonant frequency is 66 MHz, suitable for high-frequency circuits.
The core material used is ferrite, which enhances magnetic properties and reduces electromagnetic interference.
The termination style is surface mount, facilitating easy PCB integration.
It complies with JEDEC JS709B, RoHS, and REACH standards, ensuring quality and environmental safety.
The inductor is packaged in tape and reel format, which supports automated assembly processes.
This inductor is suitable for high-efficiency switching controllers, integrated DC-DC converters, and portable electronic devices such as smartphones and tablets.
This inductor has a pin count of 2.
