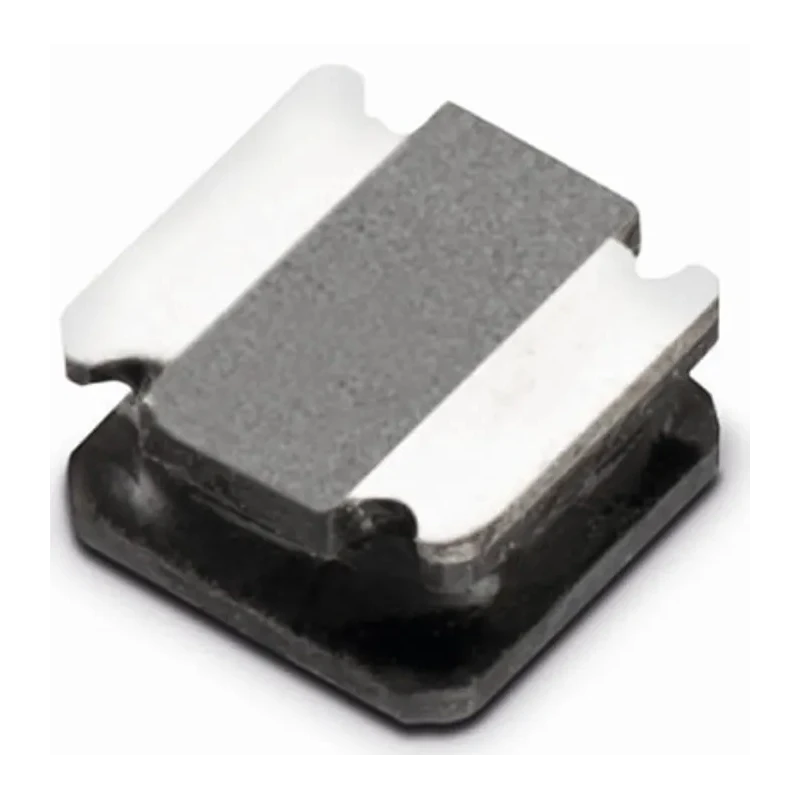

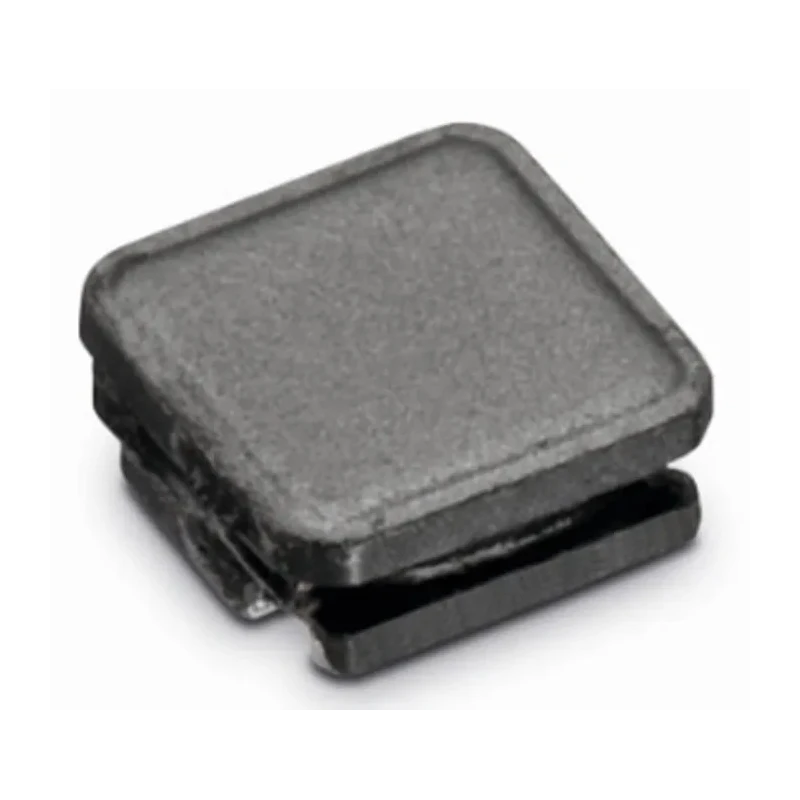

Wurth Elektronik Wirewound Surface Mount Inductor 10 μH ±20% 1.76 A 4025 Package with Ferrite Core 74404043100A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.5mm |
| Length | 4mm |
| Model | 74404043100A |
| Depth | 4mm |
| Packaging | Tape & Reel |
| Series | WE-LQS |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 |
| Package/Case | 4025 |
| Maximum DC Current | 1.76A |
| Pin Count | 2 |
| Maximum DC Resistance | 89mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 42MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a compact 4025 package size for PCB surface mounting.
- Constructed with a ferrite core for effective magnetic shielding.
- Operates reliably at temperatures from -40°C to 125°C.
- Complies with automotive AEC-Q200 standards ensuring high reliability.
- Offers a maximum DC resistance of 89 mΩ to minimize power loss.
- Maximum self-resonant frequency of 42 MHz suitable for high-frequency applications.
- RoHS and REACH compliant with JEDEC JS709B and IEC 61249-2-21 certifications.
- Designed for power inductors in switching controllers and portable electronic devices.
Product Description
Wurth Elektronik 74404043100A is a wirewound surface mount inductor featuring a ferrite core and a 4025 package size. This inductance device provides 10 μH with ±20% tolerance and is designed to handle a maximum DC current of 1.76 A, making it suitable for a wide range of high-efficiency power applications.
The compact design includes magnetic shielding and a molded construction that enhances robustness and reduces electromagnetic interference. Its operating temperature range from -40°C to 125°C supports use in demanding environments, complying with automotive grade AEC-Q200 standards.
With a maximum DC resistance of 89 mΩ, the inductor minimizes power loss in circuits. Its maximum self-resonant frequency of 42 MHz ensures it performs well in high-frequency applications such as switching power supplies and DC/DC converters.
Wurth Elektronik's WE-LQS series inductors use wirewound technology on a ferrite core to provide reliable inductance and improved current capabilities compared to unshielded alternatives. The tape and reel packaging facilitates automated PCB assembly.
This inductor is ideally suited for industrial and commercial electronics, including power management circuits in PDAs, smartphones, digital cameras, and televisions, where efficiency and compactness are critical.
Features a compact 4025 package size for PCB surface mounting. Constructed with a ferrite core for effective magnetic shielding. Operates reliably at temperatures from -40°C to 125°C. Complies with automotive AEC-Q200 standards ensuring high reliability.
Offers a maximum DC resistance of 89 mΩ to minimize power loss. Maximum self-resonant frequency of 42 MHz suitable for high-frequency applications. RoHS and REACH compliant with JEDEC and IEC certifications. Designed for power inductors in switching controllers and portable electronic devices.
Explore a wide range of Surface Mount Inductors and related electronic components on EnvMart for your industrial and electronic assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 10 μH with a tolerance of ±20%.
The maximum DC current for this inductor is 1.76 A.
The inductor has a height of 2.5 mm, a length of 4 mm, and a depth of 4 mm.
The maximum self-resonant frequency is 42 MHz, making it suitable for high-frequency applications.
It operates reliably within a temperature range of -40°C to 125°C.
This inductor is constructed with a ferrite core, which provides effective magnetic shielding.
It complies with automotive AEC-Q200 standards and is RoHS and REACH compliant, along with certifications from JEDEC and IEC.
The maximum DC resistance is 89 mΩ, which helps minimize power loss.
The termination style is surface mount, suitable for PCB assembly.
It is packaged in tape and reel format, facilitating automated PCB assembly.
It is designed for use in power inductors for switching controllers and portable electronic devices.
This model is part of the WE-LQS series of inductors from Wurth Elektronik.
