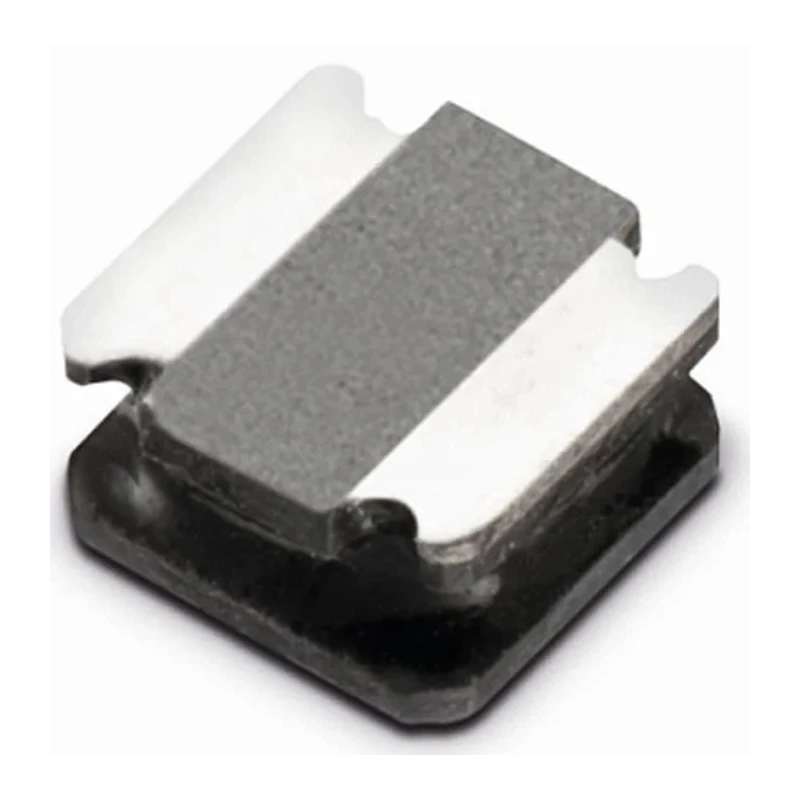

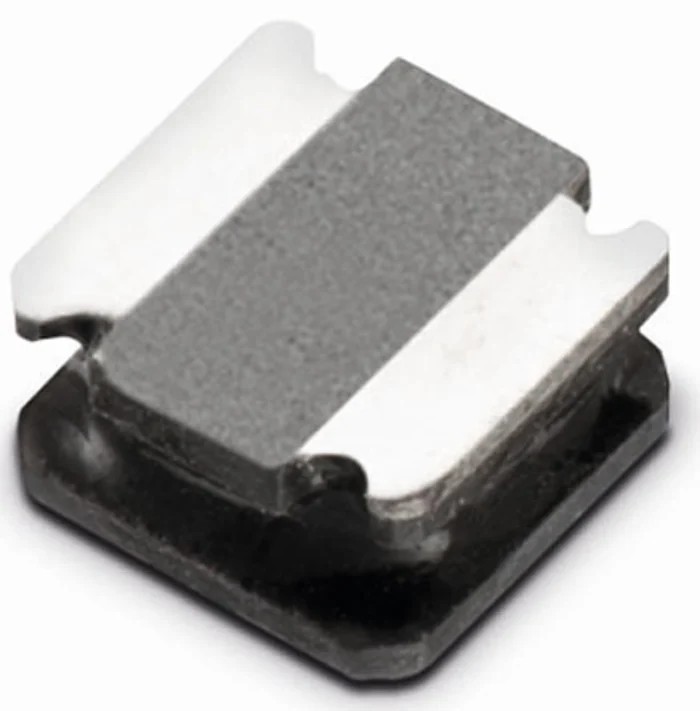

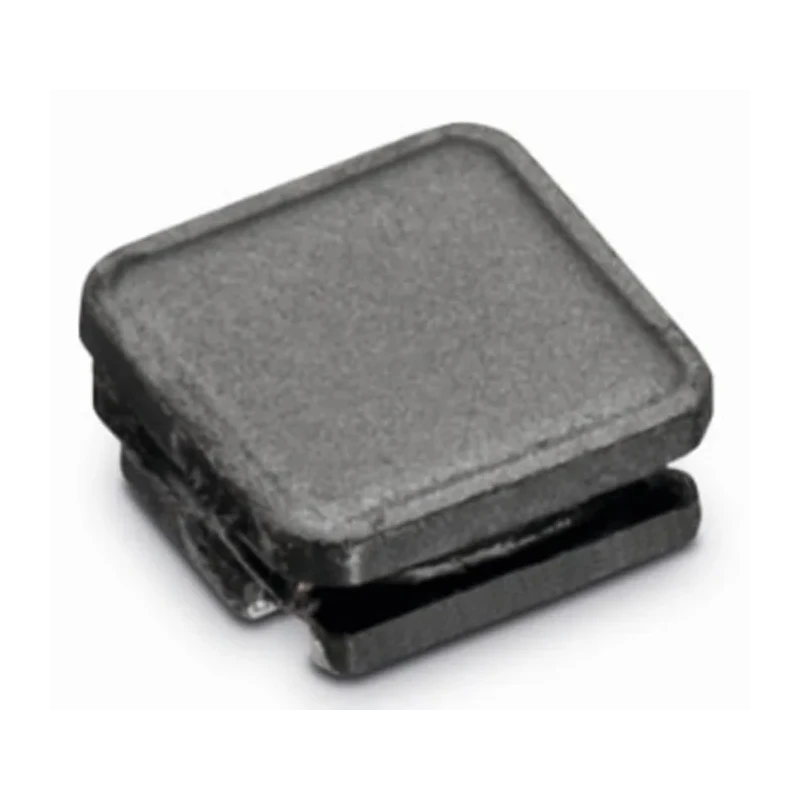

Wurth Elektronik WE-LQS 4025 Shielded Wirewound Surface Mount Inductor with Ferrite Core 47 μH ±20% 710 mA 74404043470A

Wurth Elektronik 74404043470A wirewound surface mount inductor features a shielded ferrite core providing stable inductance of 47 µH with a tolerance of ±20%. It supports a maximum DC current rating of 710 mA, making it suitable for precise filtering and energy storage in electronic circuits.

The 4025 package size and surface mount termination style enable compact PCB layouts. This inductor is magnetically shielded, minimizing interference with adjacent components, which is critical for high-density electronics in communication devices and embedded systems.

It operates reliably within a temperature range of -40°C to 125°C, ensuring robust performance across industrial and automotive environments. The maximum DC resistance is 492 milliohms, balancing low loss with thermal management. The inductor construction is wirewound and moulded, providing mechanical strength and durability.

Compliant with multiple industry standards including IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS, this component meets environmental and safety regulations.

Applications include switching controllers, power supplies, portable devices such as smartphones, PDAs, digital cameras, and televisions. The AEC-Q200 certification confirms suitability for automotive electronics requiring high reliability and stability under harsh conditions.

Compact 4025 package size for surface mount technology. Magnetically shielded design reduces electromagnetic emissions. Supports a maximum DC current of 710 mA to handle power loads. Wide operating temperature range suitable for harsh environments.

Compliant with IEC, JEDEC, REACH, and RoHS standards for quality assurance. Explore more Surface Mount Inductors and power components at EnvMart for your electronic design needs.
