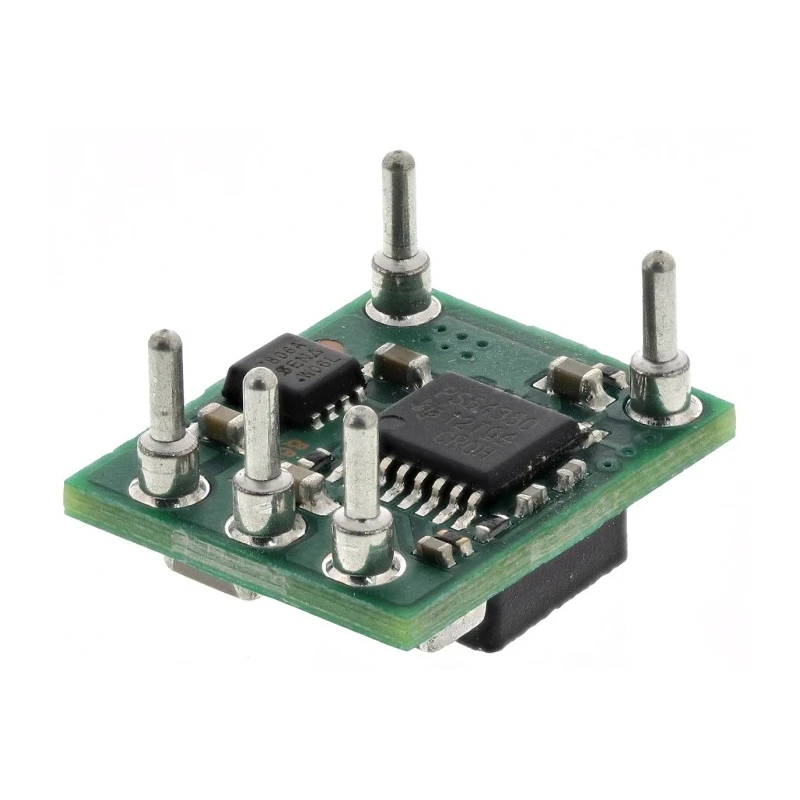

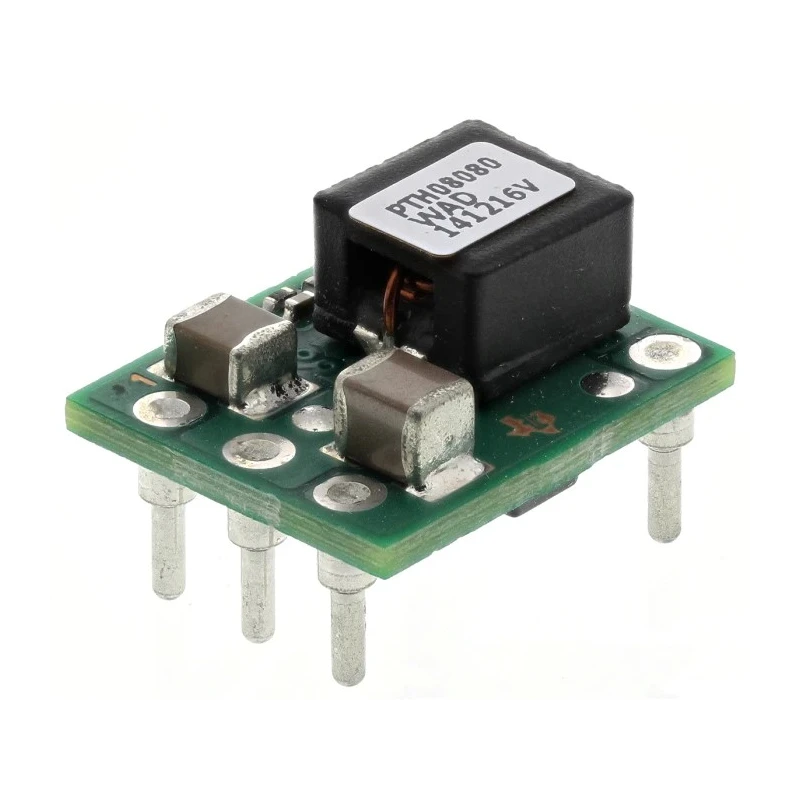

Texas Instruments DC/DC Power Supply Module 5-Channel 2.25 A 18V Input 300 kHz 5-Pin DIP PTH08080WAD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 7.93mm |
| Length | 15.24mm |
| Model | PTH08080WAD |
| Output Power | 10W |
| Mount Type | Through Hole |
| Series | PTH8080 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum Input Voltage | 18V |
| Maximum Switching Frequency | 300kHz |
| Minimum Input Voltage | 4.5V |
| Pin Count | 5 |
| Output Current 1 | 2.25A |
| Output Voltage 2 | 900mV |
Key Features
- Non-isolated step-down (buck) converter power module for efficient power management.
- Supports adjustable output voltages with a maximum switching frequency of 300 kHz.
- Designed with a 5-pin DIP through-hole mounting package for ease of PCB integration.
- Operates reliably within a temperature range of -40°C to 85°C.
- Features precision enable, soft-start, tracking, and best-in-class thermal performance.
- Complies with EN55022 (CISPR22) Class B radiated and conducted EMI standards.
- Suitable for industrial and electronic applications requiring efficient power conversion.
- Compact dimensions of 15.24 mm length and 7.93 mm height optimize space on circuit boards.
Product Description
Texas Instruments PTH08080WAD DC/DC Power Supply Module is a non-isolated step-down (buck) power module designed for high-efficiency power management. It delivers a maximum output current of 2.25 A with a maximum input voltage of 18 V, making it suitable for various industrial and electronic applications.
This 5-channel power module operates at a switching frequency up to 300 kHz and comes in a through-hole 5-pin DIP package, facilitating easy mounting on printed circuit boards. The module incorporates an integrated shielded inductor and features precision enable, soft-start, and tracking capabilities to provide reliable voltage sequencing.
Engineered for superior EMI protection and excellent thermal performance, it complies with EN55022 (CISPR22) Class B standards for radiated and conducted emissions. Its operational temperature range is -40°C to 85°C, ensuring reliability in challenging environments.
The compact size with dimensions of 15.24 mm length and 7.93 mm height allows usage in space-constrained designs. Pin-to-pin compatibility offers easy substitution with other modules within the PTH series catering to different load currents.
This power supply module is ideal for industrial controls, telecommunications, data processing, and other electronics systems that require efficient and reliable DC-DC conversion. It simplifies power management design while maintaining high performance and compliance with emission standards.
Non-isolated step-down (buck) converter power module for efficient power management. Supports adjustable output voltages with a maximum switching frequency of 300 kHz. Designed with a 5-pin DIP through-hole mounting package for ease of PCB integration.
Operates reliably within a temperature range of -40°C to 85°C. Features precision enable, soft-start, tracking, and best-in-class thermal performance. Complies with EN55022 (CISPR22) Class B radiated and conducted EMI standards.
Suitable for industrial and electronic applications requiring efficient power conversion. Compact dimensions of 15.24 mm length and 7.93 mm height optimize space on circuit boards. Pin-to-pin compatible with modules of different load currents for design flexibility.
Explore the comprehensive selection of Power Management ICs and DC-DC Power Supply Modules at EnvMart for reliable industrial and electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 2.25 A.
It operates with a minimum input voltage of 4.5 V and a maximum input voltage of 18 V.
The maximum switching frequency is 300 kHz.
This model has a length of 15.24 mm and a height of 7.93 mm.
It operates reliably within a temperature range of -40°C to 85°C.
It is designed for through-hole mounting with a 5-pin DIP package.
This power supply module is suitable for industrial controls, telecommunications, and data processing applications.
Yes, it complies with EN55022 (CISPR22) Class B radiated and conducted EMI standards.
It features precision enable, soft-start, and tracking capabilities for reliable voltage sequencing.
The output power of this model is 10 W.
The country of origin for this model is India.
