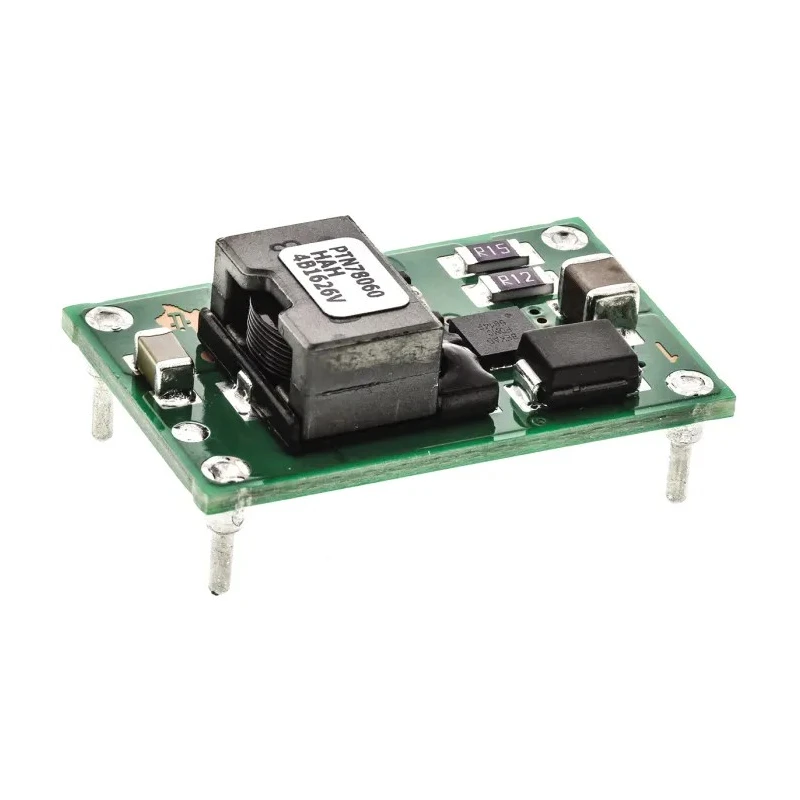

Texas Instruments Non-Isolated DC/DC Power Supply Module 5-Channel 3A 36V Input 22.5V Output 300kHz 7-Pin DIP PTN78060HAH
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 8.75mm |
| Length | 25.27mm |
| Model | PTN78060HAH |
| Output Power | 45W |
| Mount Type | Through Hole |
| Series | PTN8060 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum Input Voltage | 36V |
| Maximum Switching Frequency | 300kHz |
| Minimum Input Voltage | 15V |
| Pin Count | 7 |
| Output Current 1 | 3A |
| Output Voltage 2 | 2.5V |
Key Features
- Provides 45W output power with a maximum switching frequency of 300 kHz.
- Operates with input voltage range of 15V to 36V and output current of up to 3A.
- Features a 7-pin DIP package suitable for through-hole mounting on PCBs.
- Designed for industrial operating temperatures from -40°C to 85°C.
- Incorporates integrated shielded inductor and precision enable for sequencing.
- Non-isolated step-down (buck) power module for compact and efficient power conversion.
- Ensures best-in-class thermal performance and EMI protection.
- Passes EN55022 (CISPR22) Class B radiated and conducted EMI standard compliance.
Product Description
Texas Instruments PTN78060HAH is a high-performance, non-isolated DC/DC power supply module designed for step-down (buck) voltage regulation providing a 5-channel output with an output current of up to 3A per channel. It supports input voltage ranges from 15V to 36V and delivers an output voltage of 22.5V with precise switching at 300 kHz, packaged in a 7-pin DIP through-hole mount suitable for compact PCB integration.
This power module features an integrated shielded inductor along with precision enable, soft-start, and output tracking capabilities, facilitating reliable sequencing in complex power systems. The design emphasizes superior EMI protection and thermal management, ensuring stable operations within a wide temperature range from -40°C to 85°C. It complies with EN55022 (CISPR22) Class B Radiated and Conducted EMI standards, making it suitable for sensitive industrial environments.
The PTN78060HAH belongs to the Texas Instruments SIMPLE SWITCHER® family, offering space-saving solutions for low-power applications without the need for isolation. Its pin-to-pin compatibility with other PTN8060 series modules simplifies device interchange and system upgrades.
High efficiency and compact footprint for low-power step-down DC-DC applications. Non-isolated power module with integrated shielded inductors. Precision enable, soft-start, and tracking features for advanced power sequencing.
Excellent thermal performance ensuring long-term reliability. Wide operating temperature range of -40°C to 85°C suitable for harsh environments. Complies with EN55022 (CISPR22) Class B EMI standards for reduced interference.
Pin-to-pin compatible with the PTN8060 series for diverse application needs. Ideal for industrial controls, automotive electronics, communications, and power management circuits.
This DC/DC power supply module is a reliable choice for engineers seeking compact, efficient, and robust power regulation solutions. Explore similar Texas Instruments modules or additional power management products with this series for versatile design options.
Explore more products in our DC-DC Power Supply Modules category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this module is from 15V to 36V.
It provides a maximum output current of up to 3A per channel.
The output voltage of this model is 22.5V.
The maximum switching frequency is 300 kHz.
The module has a height of 8.75mm and a length of 25.27mm.
It operates within a temperature range of -40°C to 85°C.
This model is designed for through-hole mounting on PCBs.
It complies with EN55022 (CISPR22) Class B radiated and conducted EMI standards.
It belongs to the PTN8060 series of power supply modules.
Yes, it incorporates precision enable, soft-start, and output tracking capabilities for reliable sequencing.
The output power is rated at 45W.
Yes, it is pin-to-pin compatible with other modules in the PTN8060 series.
