MEAN WELL 8.05W Constant Current LED Driver, 1 Output, 11V to 23V, IP30 Rated, Screw Mount, IP30

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL 8.05W Constant Current LED Driver, 1 Output, 11V to 23V, IP30 Rated, Screw Mount, IP30

Name: MEAN WELL 8.05W Constant Current LED Driver, 1 Output, 11V to 23V, IP30 Rated, Screw Mount, IP30
Brand: MEAN WELL
SKU: 109911



Category LED Drivers Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	IP30
IP Rating	IP30
Mount Type	Screw
Series	APC-8
Configuration	Enclosed
Sub Type	LED Driver
Operating Modes	Constant Current
Number of outputs	1
Terminal type	Wire
Maximum Output Power	8.05W
Input Voltage	264, 90, 127, 370V ac
Output Voltage	11, 23V
Power Dissipation	8.05W
Standards/Approvals	CE
Primary Type	AC-DC, DC-DC

Key Features

Supports a wide input voltage range from 90 to 264 Vac for versatile application.
Enclosed screw mounting design with IP30 rating for indoor use protection.
Equipped with constant current operation mode ensuring stable LED performance.
Features short circuit protection and low no-load power consumption below 0.5W.
Constructed with a fully isolated, flame retardant plastic enclosure meeting Class II design.
Complies with UL8750, CSA C22.2 No.250.0-08, ENEC EN61347-1, EN61347-2-13 standards and CE certified.
Suitable for indoor LED lighting, decorative lighting, and office lighting applications.
Compact size designed for convection cooling without fan, enhancing reliability.

Product Description

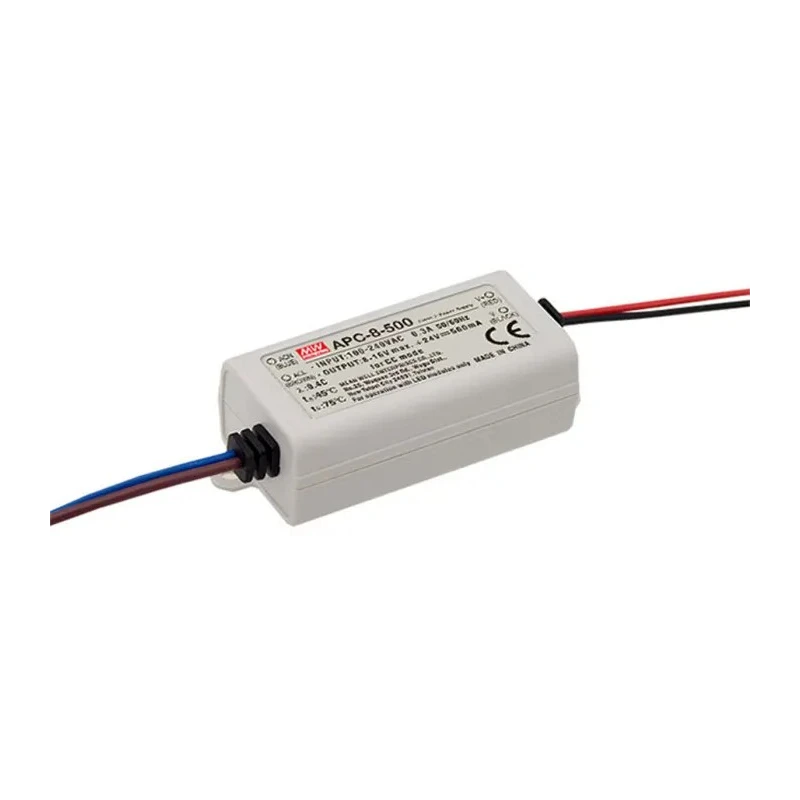

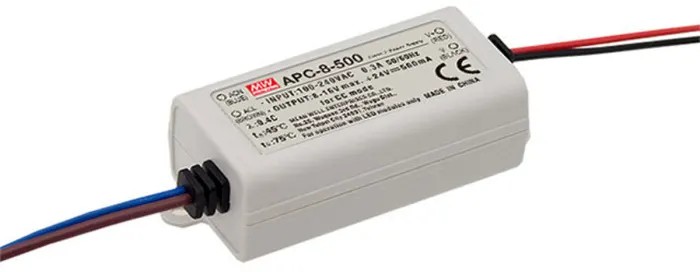

MEAN WELL APC-8-350 IP30 is a constant current LED driver delivering a maximum output power of 8.05W with a single output voltage ranging between 11V and 23V. It supports a universal AC input voltage range from 90 to 264 Vac, making it compatible with global electrical standards. This LED driver is designed with a screw mount type enclosure, rated IP30, ideal for indoor environments requiring moderate protection. The Class II design offers full isolation with a flame retardant plastic case for safety and reliability.

These drivers operate exclusively in constant current mode, which is crucial for LED applications requiring consistent brightness and lifespan. Equipped with features including short circuit protection and ultra-low no load power consumption (below 0.5W), the unit ensures energy efficiency and safety. Cooling is provided by natural free air convection, eliminating the need for additional fans and reducing maintenance.

Meeting rigorous international safety standards such as UL8750, CSA C22.2 No.250.0-08, and ENEC certifications, the APC-8-350 assures high reliability and quality. Its compact build makes it suitable for a variety of applications, including indoor LED lighting fixtures, decorative LED installations, and office lighting solutions seeking efficient and stable LED power control.

Wide universal AC input voltage ranging from 90 to 264 Vac. Constant current operation mode optimized for LED illumination. Short circuit protection enhances operational safety. IP30 rating supports indoor, dry environment use.

Compact, fully isolated Class II design with flame retardant enclosure. Low no-load power consumption for energy saving. Certified under UL, CSA, EN, and CE standards. Suitable for various indoor LED lighting applications.

This MEAN WELL APC-8-350 IP30 LED driver provides an efficient and reliable power solution for LED lighting in industrial, commercial, and residential sectors. Explore additional LED Drivers and power supply options from MEAN WELL to match your specific lighting needs at EnvMart.
