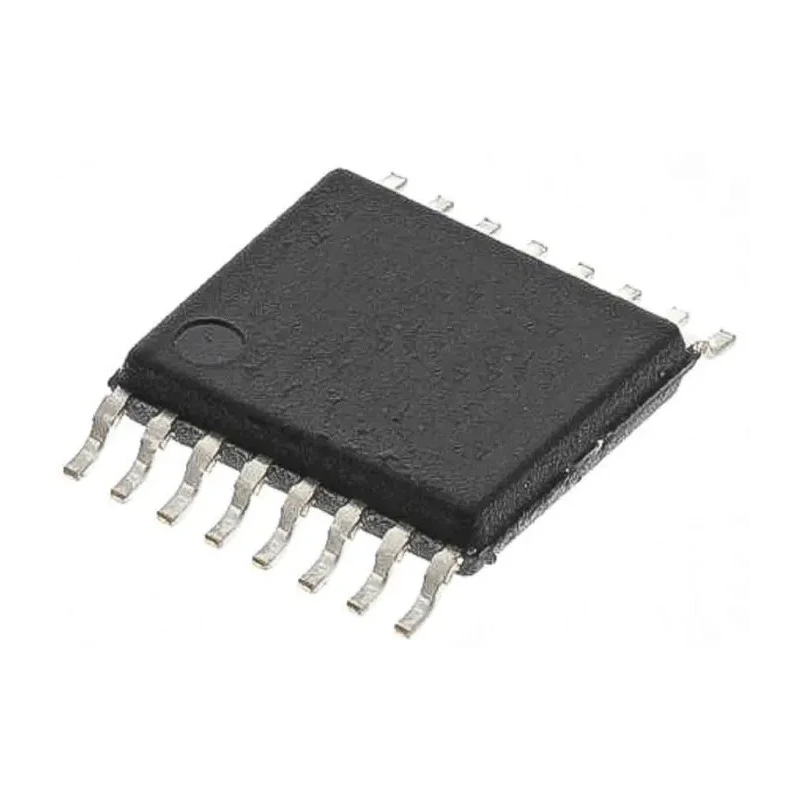

STMicroelectronics 8 Output Display Driver 20V 5-100mA Adjustable Current STP08CP05XTTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STP08CP05XTTR |
| Mount Type | Surface |
| Series | STP08CP05 |
| Output Current | 5-100 mA |
| Operating Modes | Constant Current |
| Number of outputs | 8 |
| Terminal type | So-16 |
| Input Voltage | 3, 5.5V |
| Output Voltage | 20V |
| Standards/Approvals | ECOPACK |
| Dimming Operation | 0 to 100%, Adjustable |
| Primary Type | 8 Bit Shift Register, Low voltage |
| Driver Current | 100, 5mA |
| LED Voltage | 20V |
Key Features
- The device features low voltage power supply operation down to 3 V.
- It offers eight constant current output channels for LED panel displays.
- Output current is adjustable via an external resistor for precise LED brightness control.
- Supports dimming operation from 0% to 100% through the OE pin.
- Provides a high clock frequency of up to 30 MHz for efficient data transmission.
- Compatible with 3.3 V microcontrollers for flexible interfacing.
- Utilizes a TSSOP exposed pad package for improved thermal dissipation.
- Offers ESD protection of 2.5 kV Human Body Model and 200 V Machine Model.
Product Description
STMicroelectronics STP08CP05XTTR is a monolithic 8-bit shift register display driver designed for LED panel display applications. It features low voltage and low current operation with constant current output capabilities between 5 mA and 100 mA, adjustable through an external resistor. The device operates with a power supply down to 3 V and supports up to 20V output voltage, enabling connection of multiple LEDs in series.
The driver contains an 8-bit serial-in, parallel-out shift register feeding an 8-bit D-type storage register. The output stage includes eight regulated current sources with an output current setup time of approximately 11 ns, enhancing system performance.
Dimming functions enable LED brightness control from 0% to 100% via the OE pin, offering high flexibility for display intensity management. The STP08CP05XTTR supports a clock frequency of 30 MHz, suitable for high volume data transmission requirements in industrial, commercial, and consumer electronic displays.
The package is a TSSOP with an exposed pad providing 2.5 times better heat dissipation compared to standard packages, improving reliability during extended operation. This device offers ESD protection of 2.5 kV for the Human Body Model and 200 V for the Machine Model.
Low voltage power supply down to 3 V for efficient operation. Eight constant current output channels for uniform LED driving. Adjustable output current through an external resistor for brightness control. Serial data input and parallel data output for easy interfacing.
3.3 V microcontroller compatible input logic levels. High clock frequency up to 30 MHz for fast data handling. High thermal efficiency TSSOP package with exposed pad. ESD protection up to 2.5 kV HBM and 200 V MM.
Suitable for applications in LED panel displays, industrial control systems, instrumentation, and other electronic display devices requiring reliable and adjustable LED driving capability. STMicroelectronics provides technical documentation and support to optimize device integration. Explore our extensive LED driver category for compatible components at EnvMart.
Explore more products in our LED Drivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output current range of this model is adjustable from 5 mA to 100 mA.
The STP08CP05XTTR supports a maximum output voltage of 20V.
It operates with an input voltage range from 3V to 5.5V.
This model features eight constant current output channels.
It supports dimming operation from 0% to 100%, adjustable via the OE pin.
The device can operate at a high clock frequency of up to 30 MHz.
It utilizes a TSSOP package with an exposed pad for improved thermal dissipation.
Yes, it is compatible with 3.3 V microcontroller input logic levels.
It provides ESD protection of 2.5 kV for the Human Body Model and 200 V for the Machine Model.
The STP08CP05XTTR is designed for surface mounting.
It is suitable for LED panel displays, industrial control systems, and instrumentation.
This model complies with ECOPACK standards.
