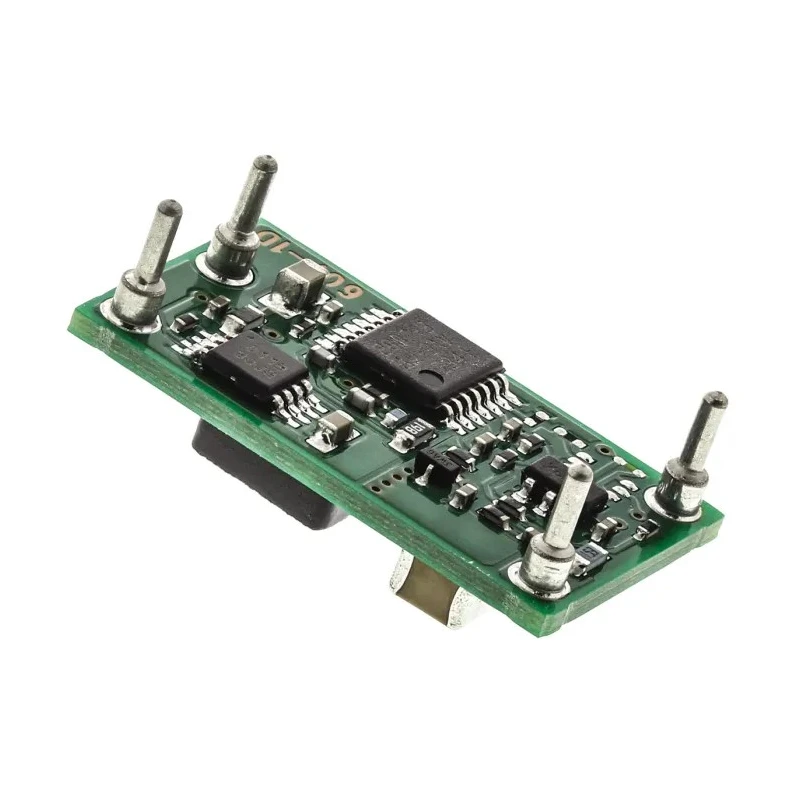

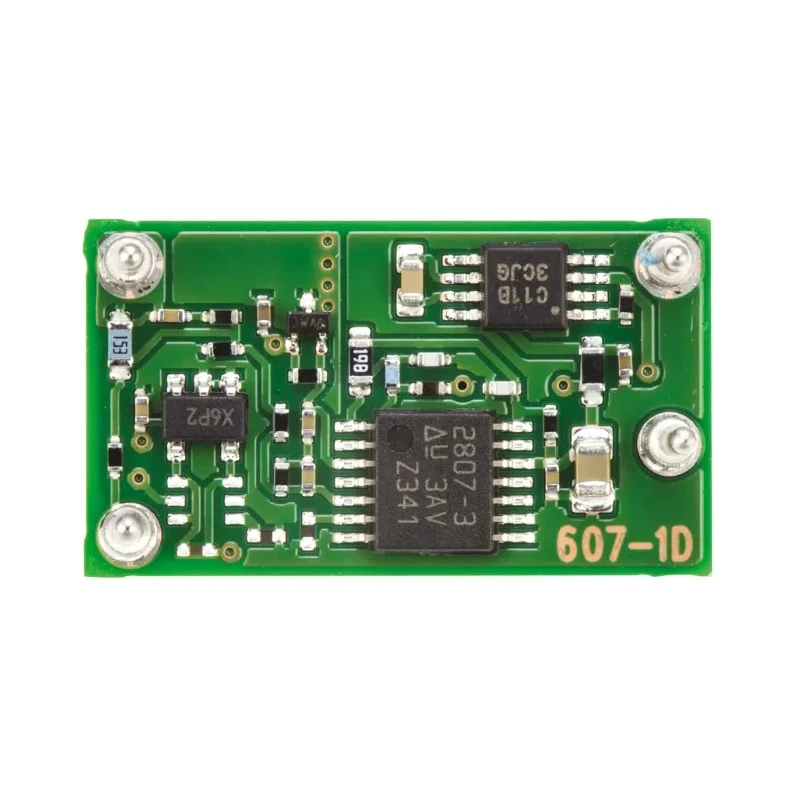

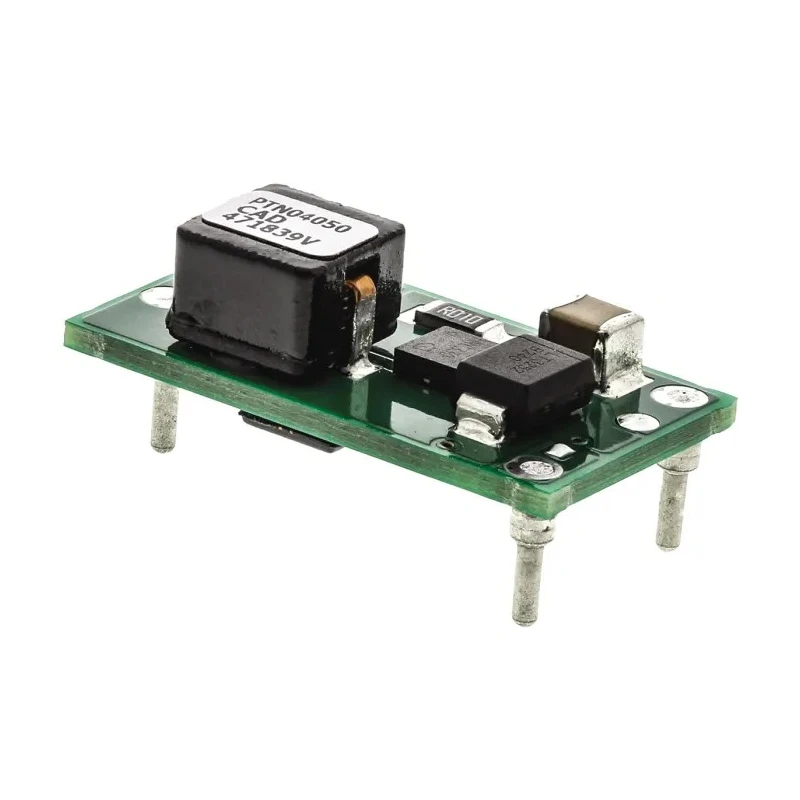

Texas Instruments DC/DC Power Supply Module 5-Channel 2.4 A 5.5V Input 600 kHz DIP PTN04050CAD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 8.25mm |
| Length | 18.92mm |
| Model | PTN04050CAD |
| Output Power | 12W |
| Mount Type | Through Hole |
| Series | PTN4050 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum Input Voltage | 5.5V |
| Maximum Switching Frequency | 600kHz |
| Minimum Input Voltage | 2.95V |
| Pin Count | 4 |
| Output Current 1 | 2.4A |
| Output Voltage 2 | 5V |
Key Features
- Non-isolated step-up (boost) power module for efficient DC/DC voltage conversion.
- Integrates shielded inductor, soft-start, and precision enable features.
- Supports input voltages from 2.95 V to 5.5 V for versatile applications.
- Operates at a maximum switching frequency of 600 kHz to reduce size of external components.
- Package type DIP with through-hole mount for easy PCB integration.
- Complies with EN55022 (CISPR22) Class B radiated and conducted EMI standards.
- Functions reliably from -40°C to 85°C ambient temperature.
- Compact size with dimensions 18.92 mm length and 8.25 mm height.
Product Description
Texas Instruments PTN04050CAD is a high-efficiency, non-isolated step-up (boost) DC/DC power supply module designed to deliver stable output voltages and currents with a compact footprint.
The device incorporates an integrated shielded inductor and precision enable, soft-start, and tracking features, ensuring smooth startup and reliable operation across multiple channels.
Operating from input voltages between 2.95 V and 5.5 V, it supports output currents up to 2.4 A per channel with a total output power of 12 W. The module utilizes a 4-pin DIP through-hole package suitable for easy PCB assembly and integration in diverse industrial and commercial applications.
This power supply module features a high switching frequency of 600 kHz that reduces external component size and enhances transient response. It delivers best-in-class thermal performance, allowing operation in harsh environments between -40°C and 85°C.
The PTN04050CAD complies with EN55022 (CISPR22) Class B radiated and conducted EMI standards, making it appropriate for sensitive electronic equipment. It supports designs requiring EMI protection, high output current, and voltage stability.
Typical applications include industrial automation, computing equipment power regulation, telecommunications, and other scenarios where a reliable DC/DC boost converter is essential.
Non-isolated step-up (boost) power module for efficient DC/DC voltage conversion. Integrated shielded inductor for EMI reduction and thermal efficiency. Precision enable, soft-start, and tracking for sequencing multi-channel power.
Wide input voltage range from 2.95 V to 5.5 V. 600 kHz maximum switching frequency to minimize solution size. Through-hole DIP package for easy PCB integration. Operating temperature range from -40°C to 85°C. EN55022 Class B EMI compliance for safe industrial use.
Total output power of 12 W with 2.4 A output current per channel. Explore more DC-DC Power Supply Modules and components within the Texas Instruments range on EnvMart for your industrial power management solutions.
