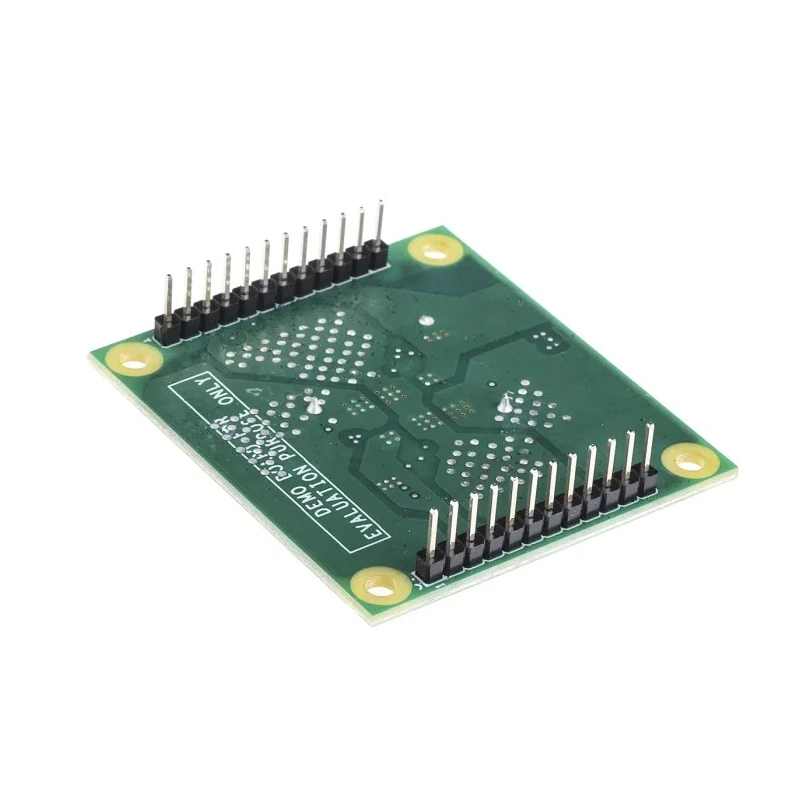

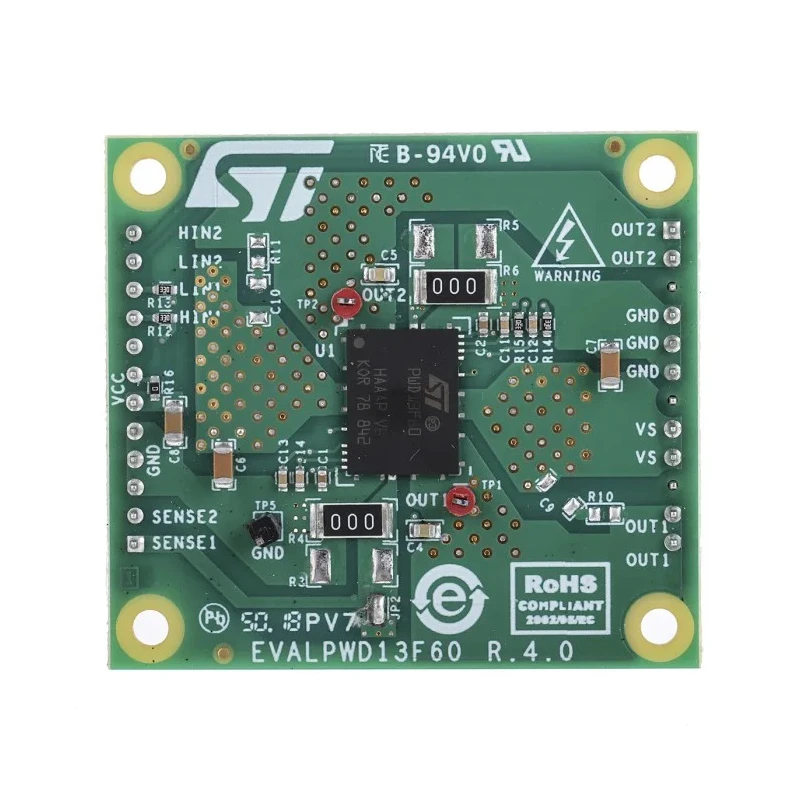

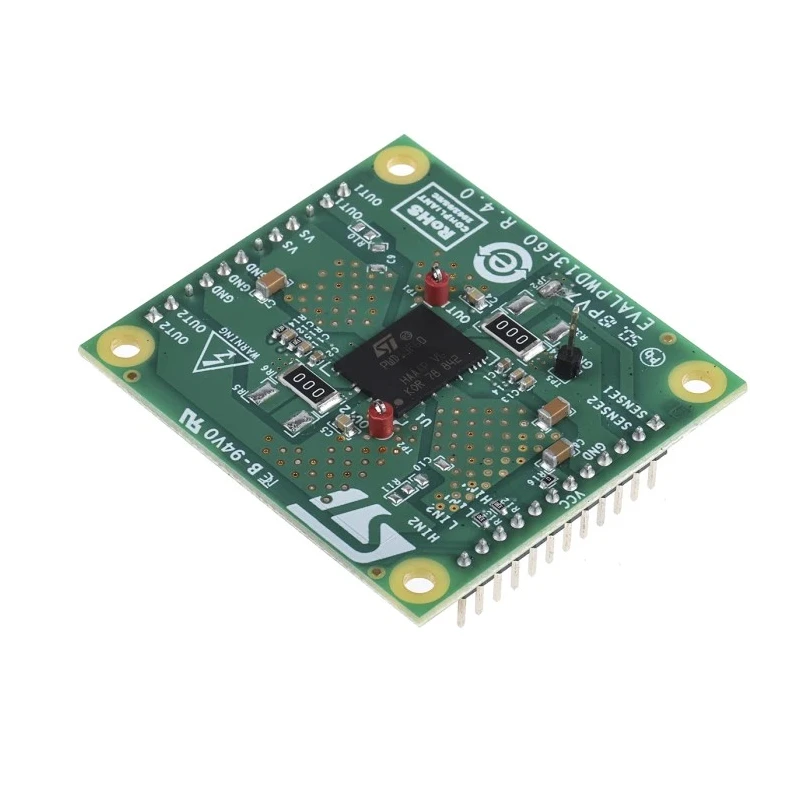

STMicroelectronics High Voltage Evaluation Board Full Bridge with Gate Drivers and Four N-channel Power MOSFETs EVALPWD13F60
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | EVALPWD13F60 |
| For Use With | PWD13F60 |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | EVALPWD13F60 |
| Kit Name | High Voltage Evaluation Board |
Key Features
- The board integrates gate drivers and four N-channel power MOSFETs in a dual half-bridge full-bridge configuration.
- Input pin extended range allows easy interfacing with microcontrollers, DSP units, or Hall effect sensors.
- Provides an interlocking function to prevent cross conduction, ensuring safe operation.
- Includes internal bootstrap diodes and suitable UVLO protection on the supply voltage.
- Features low RDS(on) of 320 milliohms and BVDSS rating of 600V for high-voltage applications.
- Compatible with input voltages ranging from 3.3V to 15V with hysteresis and pull-down.
- Compact layout ideal for integration in limited space applications.
- Applicable in DC-DC and DC-AC converters, motor drivers, factory automation, fans, pumps, HID, ballasts, and power supply units.
Product Description
STMicroelectronics EVALPWD13F60 Evaluation Board is a high-density power driver featuring integrated gate drivers and four N-channel power MOSFETs arranged in a dual half-bridge full-bridge topology. Its design allows for efficient load driving in a compact footprint suitable for industrial and commercial power electronics development.
The board supports input signals from 3.3V to 15V with hysteresis and pull-down functionality, facilitating interfacing with microcontrollers, DSPs, or Hall effect sensors. An interlocking feature prevents cross conduction, enhancing operational safety, while internal bootstrap diodes and UVLO protection on the supply voltage improve reliability.
The device's power MOSFETs have a low on-resistance of 320 milliohms and a breakdown voltage of 600V, making the board ideal for high voltage power management applications. Its compact and efficient layout helps integrate complex power stages in limited spaces.
Common use cases for this evaluation board include motor drivers for industrial and home appliances, DC-DC and DC-AC power converters, factory automation systems, fans and pumps control, HID ballasts, and power supply units.
The board features integrated gate drivers and four high-voltage power MOSFETs in a full-bridge configuration. Designed to prevent cross conduction through an interlocking function. Input signal compatibility from 3.3V to 15V with protection features.
Compact layout for integration in space-constrained systems. Low RDS(on) and high breakdown voltage power MOSFETs. Applications include motor control, power conversion, and automation. Includes internal bootstrap diodes and UVLO protection for enhanced safety.
This Evaluation Board offers design engineers a robust and integrated platform to test and develop high voltage power systems efficiently. Explore more products in the Power, Motor & Robotics Development Tools category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The evaluation board supports input voltages ranging from 3.3V to 15V, featuring hysteresis and pull-down functionality for compatibility with various control systems.
The power MOSFETs in this evaluation board have a breakdown voltage rating of 600V, making it suitable for high-voltage applications.
The MOSFETs feature a low RDS(on) of 320 milliohms, which contributes to efficient power management.
Yes, it includes internal bootstrap diodes and under-voltage lockout (UVLO) protection on the supply voltage to enhance operational reliability.
This evaluation board is applicable in various scenarios such as motor drivers, DC-DC and DC-AC converters, factory automation, and control of fans and pumps.
The interlocking function prevents cross conduction between the MOSFETs, ensuring safe operation during high-voltage applications.
The board features a compact layout, making it ideal for integration into space-constrained applications.
The evaluation board complies with RoHS standards, ensuring it meets environmental regulations.
Its primary purpose is to provide a robust platform for testing and developing high voltage power systems efficiently.
The board integrates gate drivers along with four N-channel power MOSFETs arranged in a dual half-bridge full-bridge configuration.
The evaluation board is manufactured in India.
The model number of this evaluation board is EVALPWD13F60.
