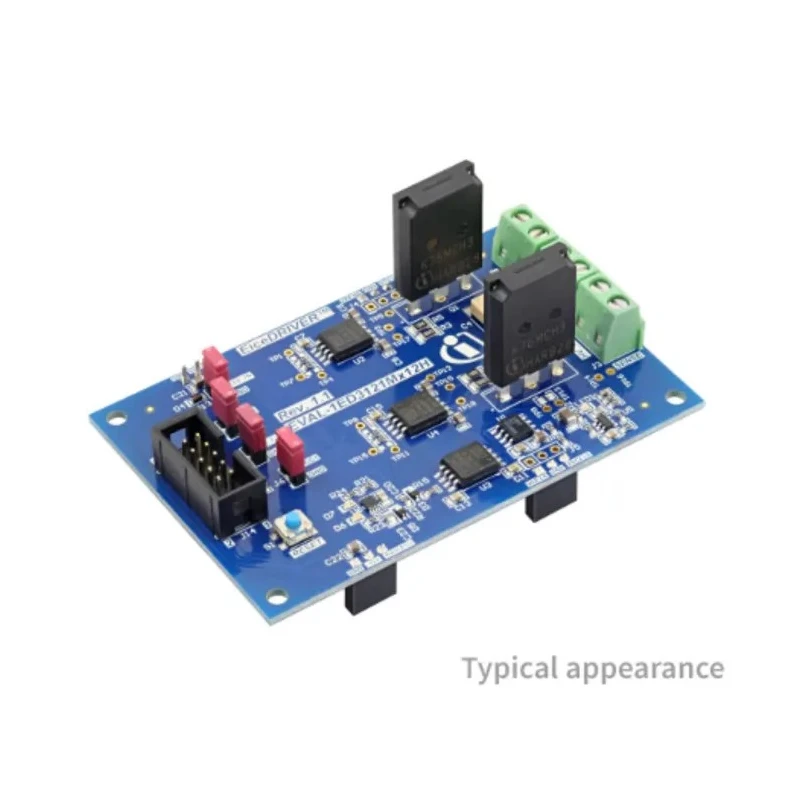

Infineon Evaluation Board MOSFET Gate Driver Module for Motors EVAL1ED3121MX12HTOBO1

Infineon EVAL1ED3121MX12HTOBO1 is an evaluation board MOSFET gate driver module specially designed for motor control applications. It incorporates two 1ED3121MU12H gate driver ICs in a half-bridge arrangement to facilitate the driving of power devices such as IGBTs and SiC MOSFETs.

This board features an additional gate driver IC that provides isolated over-current feedback from the high voltage domain to the logic control side, enhancing protection and monitoring capabilities. The inclusion of a fast operational amplifier as a comparator further supports precise over-current detection essential for safe operation.

Integrated filtering components minimize the need for external filters, improving design simplicity and reliability. The board is engineered to maintain tight propagation delays and minimal dead time, contributing to improved system efficiency and reduced harmonic distortion, key factors in motor drive performance.

With precise thresholds and timings, the evaluation board meets UL 1577 certification requirements, ensuring enhanced safety in application. Its high isolation capability supports use in demanding environments including 1500 V DC solar inverter systems.

This evaluation board is ideal for detailed double-pulse testing and development of high-performance motor control solutions across industrial, construction, and renewable energy sectors.

This Evaluation Board uses 1ED3121MU12H gate driver ICs in a half-bridge configuration to drive power switches like IGBTs and SiC MOSFETs. An additional gate driver IC provides isolated over-current feedback from the high voltage side to logic control.

Fast operational amplifier serves as a comparator for over-current detection. Integrated filters reduce the need for external filtering components. Tight propagation delay allows minimum dead time, improving system efficiency and decreasing harmonic distortion.

Precise threshold and timing combined with UL 1577 certification ensure superior application safety. High isolation capability makes it suitable for 1500 V DC solar inverter applications. Explore more power management and motor evaluation products to optimize your designs and solutions on EnvMart.
