Microchip PAC1944 4 Ch High Side DC Power Monitor Evaluation Board USB Interface

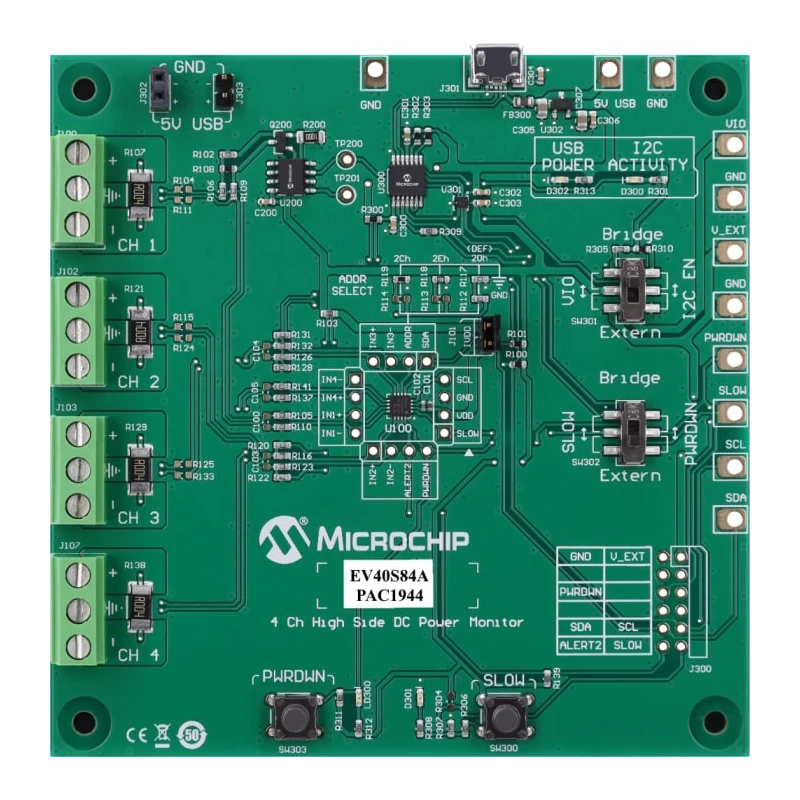

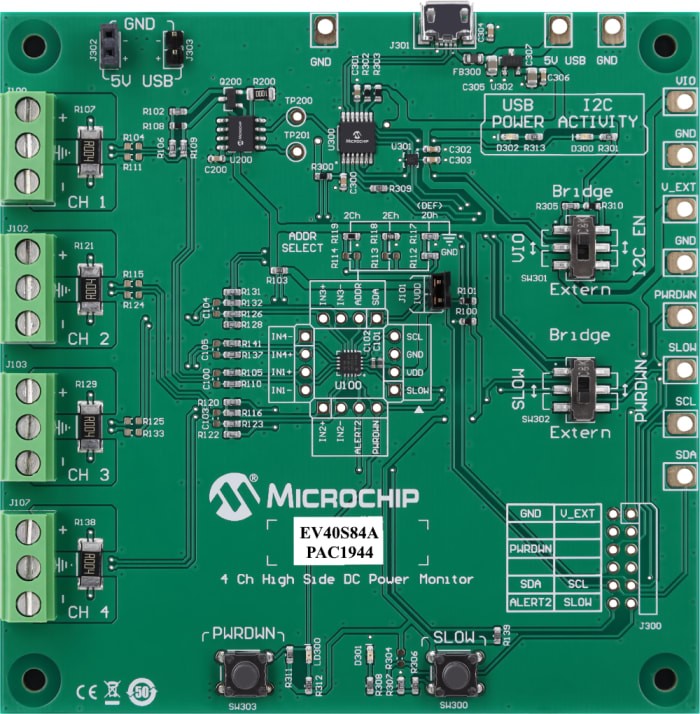

Microchip EV40S84A PAC1944 4 Ch High Side DC Power Monitor Evaluation Board provides an efficient method to evaluate and monitor power in DC applications. It features four high side measurement channels equipped with 4mOhm shunts routed via Kelvin connections for accurate current sensing.

The board includes an integrated I2C to USB bridge allowing seamless connection to PCs with GUI support to display real-time data. Additionally, the PC connection can be bypassed to communicate directly with other host controllers, enhancing flexibility.

Included is a demo square wave current generator for convenient testing, alongside comprehensive test headers and points to measure the PAC1944 power consumption precisely. This setup facilitates development in power management and energy metering fields.

Constructed to operate as an evaluation kit, it supports effective interfacing of the PAC1944 device to power sources and loads using its on-board precision current sensing resistors. The product complies with RoHS environmental directives, assuring safe and sustainable usage.

This Evaluation Board is a vital tool for industrial designers, engineers, and developers working on power monitoring solutions, laboratory testing, and embedded system power management. Its USB connectivity, multiple channels, and detailed measurement provision make it suited for advanced power diagnostics in commercial and industrial environments.

Features 4 high side measurement channels with 4mOhm shunts and Kelvin connection. Includes an on-board I2C to USB bridge for PC communication. Equipped with a demo square wave current generator for testing. Test headers and points available for PAC1944 power consumption measurements.

Supports direct communication with other host controllers by disconnecting the PC. Designed for easy connection to power sources and loads using on-board current sensing resistors. Compliant with RoHS standards ensuring environmentally friendly construction.

Ideal for power monitoring and energy metering applications in development and evaluation.
