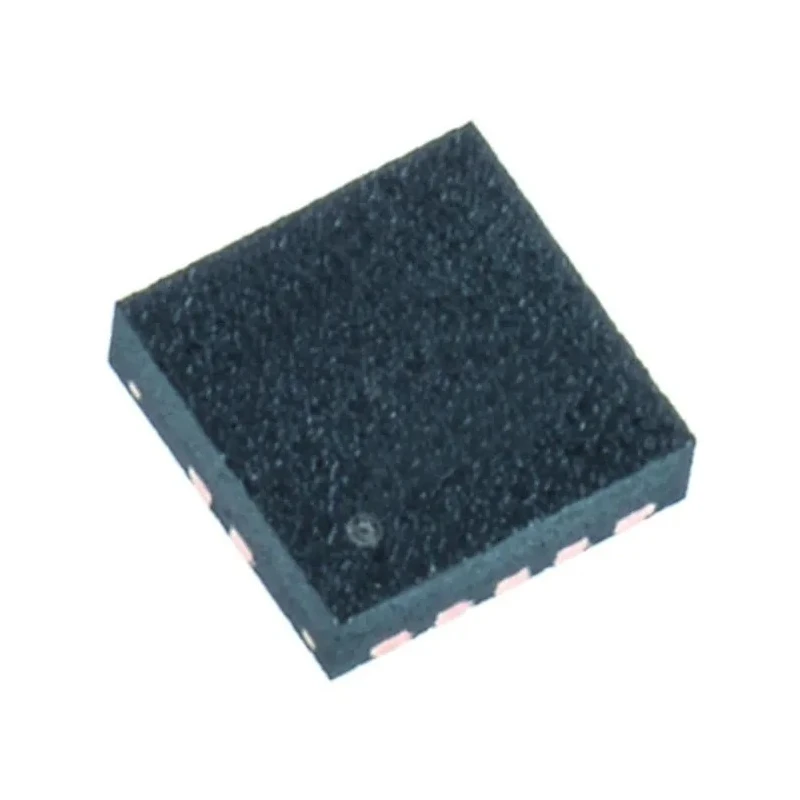

Texas Instruments 5-Channel Fixed DC/DC Converter 5.5V 1.2V 10-Pin SON TPS63002DRCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 900μm |
| Length | 3mm |
| Model | TPS63002DRCT |
| Width | 3mm |
| Mount Type | Surface |
| Output type | Fixed |
| Series | TPS63002 |
| Maximum Operating Temperature | 85°C |
| Package Type | SON |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Maximum Switching Frequency | 1.5MHz |
| Maximum Output Current | 1.2A |
| Maximum Output Voltage | 5.5V |
| Minimum Input Voltage | 1.8V |
| Pin Count | 10 |
| Minimum Output Voltage | 1.2V |
Key Features
- This converter features 5 outputs for versatile power management applications.
- It supports a minimum input voltage of 1.8V and a maximum input voltage of 5.5V.
- The maximum output current rating is 1.2A, ensuring steady power delivery.
- Operates with a maximum switching frequency of 1.5MHz for high efficiency.
- The component is mounted on the surface with a 10-pin SON package type.
- Designed to operate over a wide temperature range from -40°C to 85°C.
- Compact dimensions of 3mm length and width with a height of 900μm make it suitable for space-constrained designs.
- No automotive standard compliance is specified, targeting general electronic applications.
Product Description
Texas Instruments TPS63002DRCT is a highly efficient 5-Channel fixed DC/DC converter designed for power management applications requiring both step-up and step-down voltage conversions, operating from 1.8V to 5.5V input range with outputs fixed at 5.5V and 1.2V.
This surface-mounted device in a compact 10-pin SON package measures 3mm in length and width with a height of 900μm, making it ideal for compact electronic circuits requiring reliable power conversion.
Operating over a harsh industrial temperature range from -40°C to 85°C, it supports a maximum output current of 1.2A and achieves switching frequencies up to 1.5MHz to maximize efficiency and reduce power losses.
Applications include battery-powered devices, portable hand-held electronics, and embedded systems where efficient voltage regulation is critical.
The device uses a single inductor design facilitating smooth automatic transitioning between step-up (boost) and step-down (buck) modes, suitable for systems powered by alkaline, NiCd, NiMH, or single cell lithium batteries.
This converter features 5 outputs for versatile power management applications. Minimum input voltage rating is 1.8V, with a maximum input voltage of 5.5V. Maximum output current of 1.2A ensures steady power delivery within operating limits.
High switching frequency of 1.5MHz contributes to compact solutions with minimal ripple. Surface mount package type SON (Small Outline No-lead) ensures easy PCB integration. Wide operating temperature range from -40°C to 85°C supports industrial and commercial uses.
This product belongs to Texas Instruments’ TPS63002 series, well known for power management integrated circuits, offering reliable performance for DC/DC voltage regulation in diverse industries including industrial, consumer electronics, and telecommunications sectors.
Browse EnvMart’s catalog for additional Texas Instruments power management ICs or related DC/DC converters to find compatible solutions for your design needs.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 1.8V to 5.5V.
It has a maximum output current rating of 1.2A.
This converter provides fixed output voltages of 5.5V and 1.2V.
The maximum switching frequency of the TPS63002DRCT is 1.5MHz.
It is mounted in a 10-pin SON (Small Outline No-lead) package type.
The operating temperature range is from -40°C to 85°C.
This model measures 3mm in length and width, with a height of 900μm.
It is suitable for battery-powered devices, portable hand-held electronics, and embedded systems requiring efficient voltage regulation.
The minimum input voltage rating is 1.8V.
This converter uses surface mounting for easy PCB integration.
