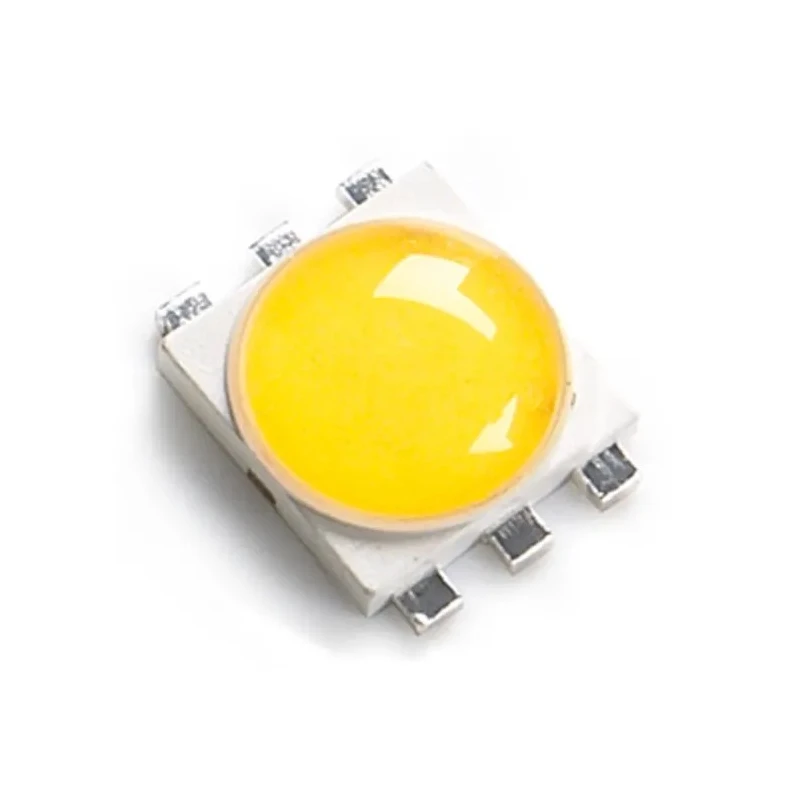

Broadcom 3.5 V White LED Tape & Reel Surface Mount LED ASMT-JW32-NWY01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ASMT-JW32-NWY01 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | ASMT-Jx3x |
| Number Of Leds | 1 |
| Maximum forward current | 700mA |
| Viewing angle | 140 ° |
| Package Type | Tape & Reel |
| Lens Colour | Yellow |
| Standards/Approvals | RoHS |
| Colour Temperature | 10000k |
| LED Colour | White |
| Forward Voltage | 3.5V |
| Number of Pins | 6 |
| Maximum Power Dissipation | 3W |
| Lens Dimensions | 4 x 4 x 1.85 mm |
| Lens Shape | Round |
Key Features
- The LED features a round yellow lens measuring 4 x 4 x 1.85 mm.
- It supports a maximum forward current of 700 mA for high-intensity illumination.
- The LED is delivered in Tape & Reel packaging suitable for efficient automated assembly.
- It has a 6-pin surface mount design compatible with SMT processes.
- Offers a color temperature of 10000K producing cool white light.
- The product adheres to RoHS standards ensuring environmental compliance.
- It is highly reliable with long operating life and is non-ESD sensitive.
- Its ultra-small footprint and low profile suit applications with space constraints.
Product Description
Broadcom ASMT-JW32-NWY01 White LED Tape & Reel Surface Mount LED operates at a forward voltage of 3.5 V and supports a maximum power dissipation of 3 W. Designed for use in electronic components and optoelectronic applications, this LED is characterized by its high thermal capacity and suitability for environments demanding high current operation.
The round yellow lens measures 4 x 4 x 1.85 mm and provides a wide viewing angle of 140°, making it effective for a broad range of lighting applications. The white LED emits light at a color temperature of 10000K, delivering a cool white tone with good color rendering properties.
Packaged in Tape & Reel format, this surface mount device (SMD) with 6 pins supports efficient automated PCB assembly, enhancing production throughput in manufacturing environments. Its non-ESD sensitivity ensures robust performance in demanding industrial and commercial electronics manufacturing.
The ASMT-Jx3x series of Avago LEDs, including this model, offer a small and low-profile footprint ideal for applications where space and height are limited, such as compact lighting modules and display backlighting.
The LED has an electrically isolated metal slug enhancing thermal management. It is silicone encapsulated, classified as MSL 1 for moisture sensitivity. The device conforms to RoHS regulations for hazardous substances. Offered color temperature is 10000K, suitable for daylight applications.
Designed for high reliability and long operating life under continuous operation. The wide viewing angle (>140°) maximizes light spread for uniform illumination. Non-automotive standard LED suited for general lighting and commercial usage.
This LED is suitable for industrial, electronic manufacturing, display, and lighting applications requiring small footprint, high power, and high current LEDs. It is excellent for prototyping, production line assembly, and replacement components in existing designs.
Explore more electronic components and optoelectronic devices in the LED category at EnvMart for your manufacturing and industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 700 mA, allowing for high-intensity illumination.
The LED emits light at a color temperature of 10000K, producing a cool white tone.
The forward voltage for this LED is 3.5 V, which is essential for its operation.
The lens dimensions are 4 x 4 x 1.85 mm, featuring a round shape.
This model has a wide viewing angle of 140°, maximizing light spread for uniform illumination.
The LED is packaged in Tape & Reel format, which is suitable for efficient automated assembly.
This LED features a 6-pin surface mount design, compatible with SMT processes.
Yes, this LED adheres to RoHS standards, ensuring environmental compliance.
The maximum power dissipation for the ASMT-JW32-NWY01 is 3 W, which is crucial for its performance.
The country of origin for this LED is India.
This LED is suitable for industrial, electronic manufacturing, display, and lighting applications requiring a small footprint and high power.
The ASMT-JW32-NWY01 belongs to the ASMT-Jx3x series of LEDs.
