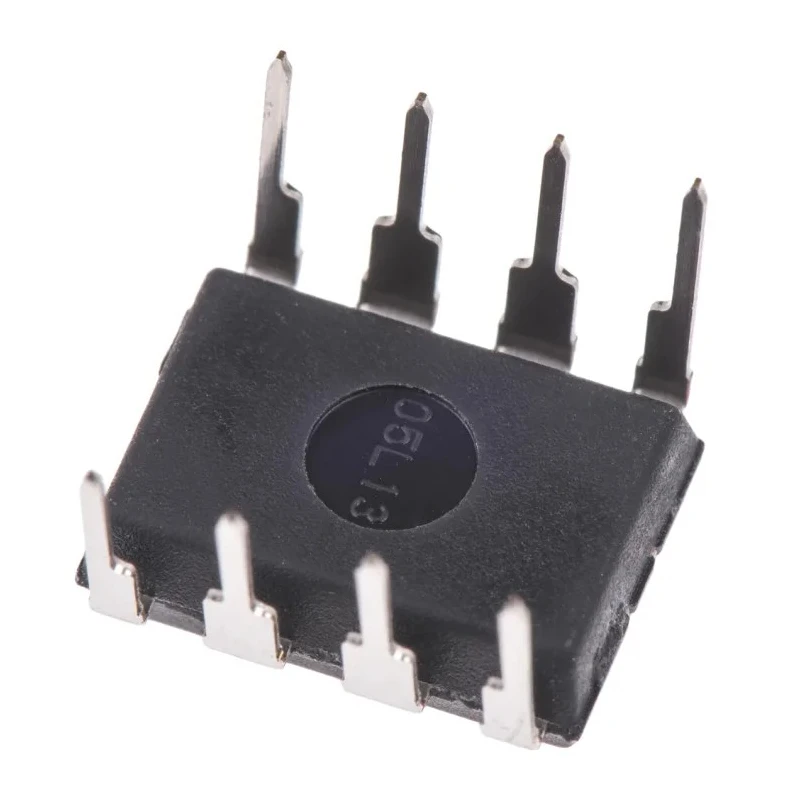

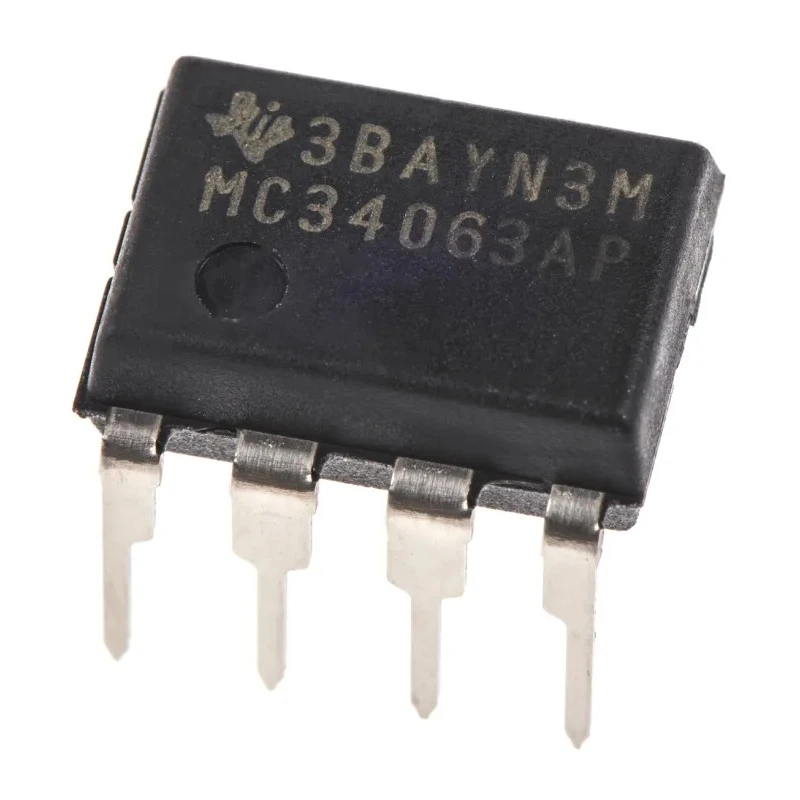

Texas Instruments 5-Channel Adjustable DC/DC Converter 8-Pin PDIP MC34063AP

Texas Instruments MC34063AP is a versatile 5-channel DC/DC converter integrated circuit housed in an 8-pin PDIP package. It supports input voltages from 3V to 40V with the capability of delivering a maximum output current of 1.5A. This device is designed for efficient DC power regulation and conversion needs in electronic circuits.

The MC34063AP offers adjustable output settings and operates at a maximum switching frequency of 100kHz, making it suitable for a variety of power management applications ranging from consumer electronics to industrial control systems. Its through-hole mounting and compact dimensions (9.81mm length, 6.35mm width, 4.57mm height) facilitate straightforward PCB assembly and integration.

Operating reliably within a temperature range of 0°C to 70°C, it is well-suited for stable performance in common ambient conditions. Although it does not adhere to specific automotive standards, it is a robust component for general purpose DC/DC voltage regulation and switching power supply designs.

Supports input voltage range of 3V to 40V. Maximum output current of 1.5A across 5 channels. Adjustable output voltage type for flexible applications. Maximum switching frequency of 100kHz for high efficiency. Through-hole mount with 8-pin PDIP package format.

Operates within 0°C to 70°C temperature range. Compact dimensions for easy PCB integration.

This product is commonly used in power management for electronic devices, including laboratory power supplies, industrial equipment, and consumer electronics. Texas Instruments' MC34063AP ensures reliable voltage regulation and efficient power conversion in demanding environments.
