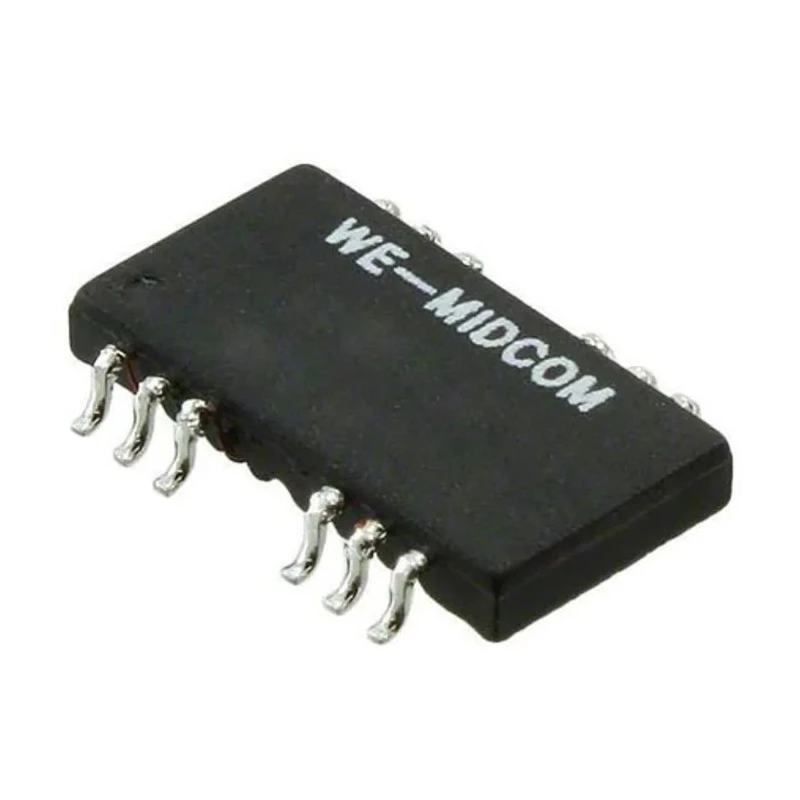

Wurth Elektronik LAN Ethernet Transformer Surface Mount 1 Output 1500V Isolation Voltage 749020100
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Length | 12.7mm |
| Depth | 2.16mm |
| Width | 8.6mm |
| Mount Type | Surface |
| Termination Type | Solder |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet |
| Number of outputs | 1 |
| Inductance | 350μH |
| Standards/Approvals | RoHS |
| Isolation Voltage | 1500V ac |
| Insertion Loss | -1.1dB |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
Key Features
- Compatible with IEEE 802.3, IEEE 802.3af, and IEEE 802.3at standards.
- Designed for 10/100/1000 Mbps Ethernet speed.
- Isolation voltage rated at 1500V AC for advanced protection.
- Inductance of 350µH ensures effective signal integrity.
- Operating temperature range from 0°C to 70°C for stable performance.
- Termination type is solder for secure PCB mounting.
- Supports most common Ethernet ICs including AMD, Intel, Globespan, and Realtek.
- Ideal for hubs, routers, and switches in industrial and commercial networking environments.
Product Description
Wurth Elektronik 749020100 LAN Ethernet Transformer is a Surface Mount transformer designed to meet the demanding requirements of Ethernet and Power over Ethernet (PoE) applications. It supports data rates of 10/100/1000 Mbps, ensuring robust and high-speed network connectivity. This transformer complies with industry standards such as IEEE 802.3, IEEE 802.3af, and IEEE 802.3at, delivering reliable performance in networking devices.
With an isolation voltage of 1500V AC, it offers effective electrical isolation to protect sensitive components. The compact package dimensions of 12.7mm length, 8.6mm width, and 2.16mm depth make it suitable for high-density PCB designs. An inductance of 350 microhenries provides signal integrity for optimal Ethernet communication.
The transformer supports surface mount solder termination for ease of assembly and durability. It is widely compatible with popular Ethernet ICs from manufacturers such as AMD, Intel, Globespan, and Realtek, making it a versatile choice for hubs, routers, and switches.
Typical applications include industrial, commercial, and laboratory Ethernet networking setups requiring stable and efficient Power over Ethernet and data transmission solutions. The component is RoHS compliant, ensuring environmentally responsible manufacturing.
Compatible with IEEE 802.3, IEEE 802.3af, and IEEE 802.3at standards. Designed for 10/100/1000 Mbps Ethernet speed. Isolation voltage rated at 1500V AC for advanced protection. Surface mount type with compact dimensions: 12.7mm length, 8.6mm width, and 2.16mm depth.
Inductance of 350µH ensures effective signal integrity. Operating temperature range from 0°C to 70°C for stable performance. Termination type is solder for secure PCB mounting. Supports most common Ethernet ICs including AMD, Intel, Globespan, and Realtek.
Ideal for hubs, routers, and switches in industrial and commercial networking environments. Explore the wide range of transformers and power supply products at EnvMart to optimize your network hardware and electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The isolation voltage is rated at 1500V AC, providing advanced protection for sensitive components.
This model has compact dimensions of 12.7mm in length, 8.6mm in width, and 2.16mm in depth.
The inductance of this transformer is 350 microhenries (µH), ensuring effective signal integrity for Ethernet communication.
It is compatible with IEEE 802.3, IEEE 802.3af, and IEEE 802.3at standards, making it suitable for various networking applications.
The operating temperature range is from 0°C to 70°C, allowing for stable performance in various environments.
It uses solder termination for secure PCB mounting, facilitating ease of assembly.
This model is designed for data rates of 10/100/1000 Mbps, ensuring robust and high-speed network connectivity.
It supports surface mount type installation, which is suitable for high-density PCB designs.
It supports most common Ethernet ICs, including those from AMD, Intel, Globespan, and Realtek.
Typical applications include hubs, routers, and switches in industrial and commercial networking environments.
Yes, this transformer is RoHS compliant, ensuring environmentally responsible manufacturing practices.
The insertion loss is rated at -1.1dB, which is an important factor for signal quality in Ethernet applications.
