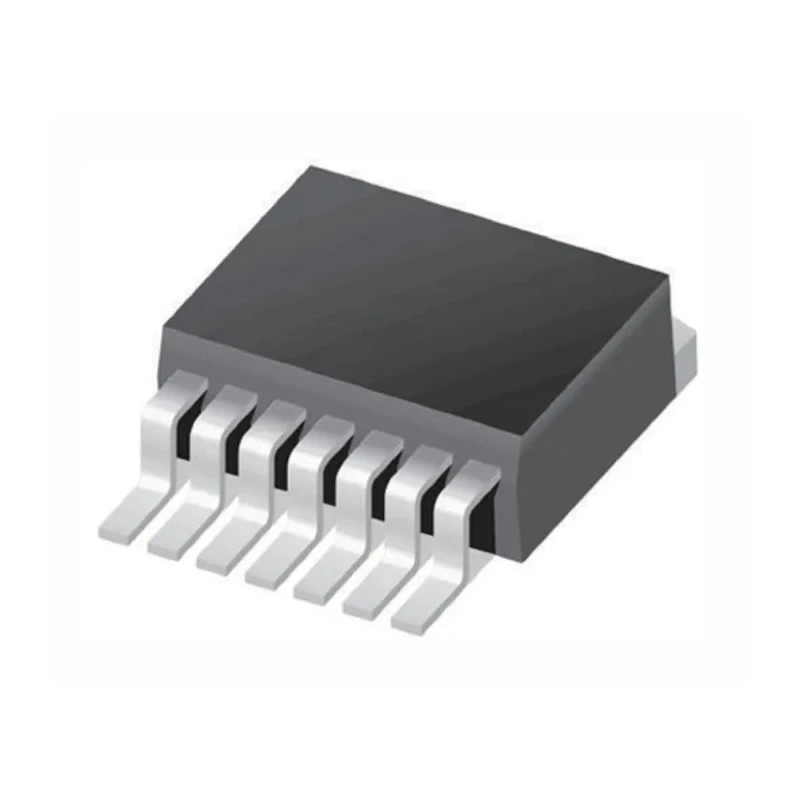

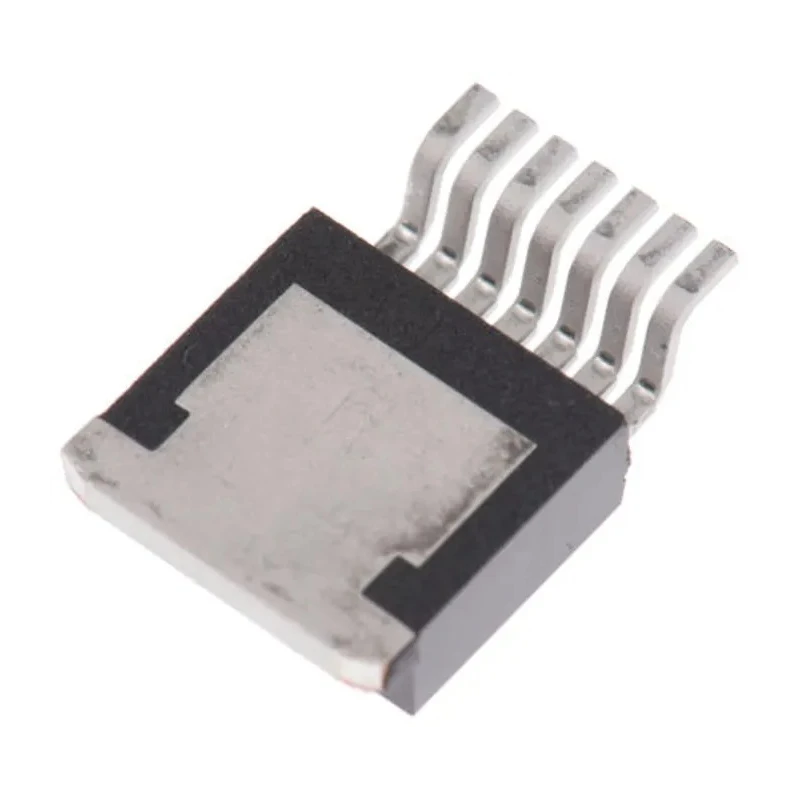

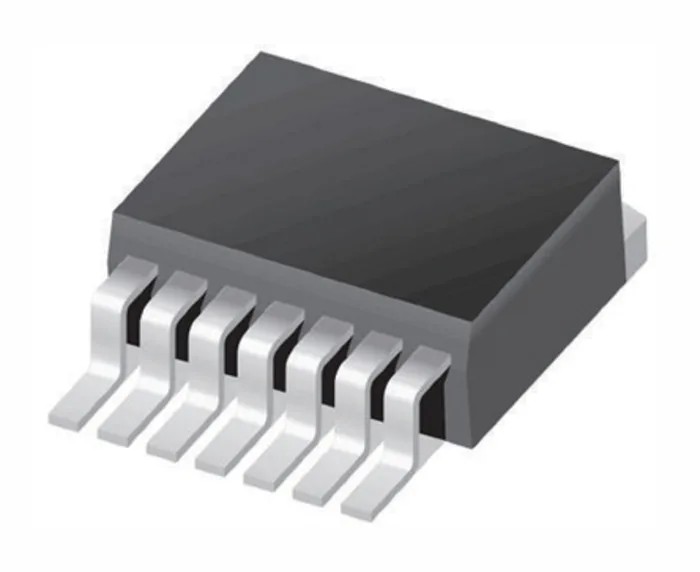

Texas Instruments Operational Amplifier 3 MHz Gain Bandwidth Product, 8-Pin TO-263 Surface Mount Package OPA551FAKTWT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.44mm |
| Length | 10.1mm |
| Model | OPA551FAKTWT |
| Width | 8.89mm |
| Mount Type | Surface |
| Series | OPA551 |
| Output Current | 200mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS, REACH |
| Pin Count | 8 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 4V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | ±100 pA |
| Vos - Input Offset Voltage | ±5 mV |
| Slew Rate | 15V/μs |
Key Features
- Designed for high voltage supply up to 30 V with a minimum supply voltage of 4 V.
- Operates over a temperature range from -40°C to 125°C for reliable performance.
- Features a high slew rate of 15 V/μs suitable for fast signal processing.
- Input offset voltage is ±5 mV and input bias current is ±100 pA, ensuring precision.
- Provides a high output current capability of 200 mA for driving low impedance loads.
- Compact dimensions of 10.1 mm length, 8.89 mm width, and 4.44 mm height in a surface mount package.
- Meets RoHS and REACH standards for environmental compliance.
- Ideal for applications including motor speed controllers, servo amplifiers, power supplies, and instrument systems.
Product Description
Texas Instruments OPA551FAKTWT is an advanced operational amplifier featuring a 3 MHz gain bandwidth product and housed in a robust 8-pin TO-263 surface mount package. It supports high voltage operation up to 30 V and is suitable for driving difficult low impedance loads.
This high-current operational amplifier operates reliably over a wide temperature range from -40°C to 125°C and delivers a swift slew rate of 15 V/μs, making it ideal for high-speed and high-power industrial applications. The device also features low input offset voltage of ±5 mV and minimal input bias current of ±100 pA, ensuring high precision signal amplification.
Designed for demanding environments, the OPA551FAKTWT is suitable for applications such as driving MOSFETs and power transistors, bridge amplifiers, motor speed controllers, servo amplifiers, power supplies, and instrumentation systems. Its compact form factor with dimensions of 10.1 mm length, 8.89 mm width, and 4.44 mm height ensures easy PCB integration.
The device is RoHS and REACH compliant, reflecting adherence to environmental and safety standards. High voltage operational amplifier with gain bandwidth of 3 MHz. Supports supply voltage range of 4 V minimum to 30 V maximum.
Input offset voltage of ±5 mV and input bias current ±100 pA for precision. Slew rate of 15 V/μs for fast dynamic response. Output current capacity up to 200 mA for driving low impedance loads. Surface mount package type TO-263 with 8 pins.
Operating temperature range from -40°C to 125°C for industrial environments. Compact dimensions suitable for efficient PCB layout.
This operational amplifier is widely used in industrial and commercial electronics, laboratory instrumentation, motor control applications, and power management systems. It offers reliability and performance for demanding designs requiring high voltage and current handling capabilities.
Explore more Operational Amplifiers and semiconductor components in the electronics category on EnvMart for a wide range of applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OPA551FAKTWT has a gain bandwidth product of 3 MHz.
This operational amplifier supports a maximum supply voltage of 30 V.
It provides an output current capability of up to 200 mA for driving low impedance loads.
The device operates reliably over a temperature range from -40°C to 125°C.
The dimensions are 10.1 mm in length, 8.89 mm in width, and 4.44 mm in height.
It comes in an 8-pin TO-263 surface mount package.
The input offset voltage is ±5 mV, ensuring precision in signal amplification.
It has a slew rate of 15 V/μs, suitable for fast signal processing.
Yes, it meets RoHS and REACH standards for environmental compliance.
The input bias current is ±100 pA, which contributes to its precision.
It is ideal for applications such as motor speed controllers, servo amplifiers, power supplies, and instrumentation systems.
The OPA551FAKTWT is manufactured in India.
