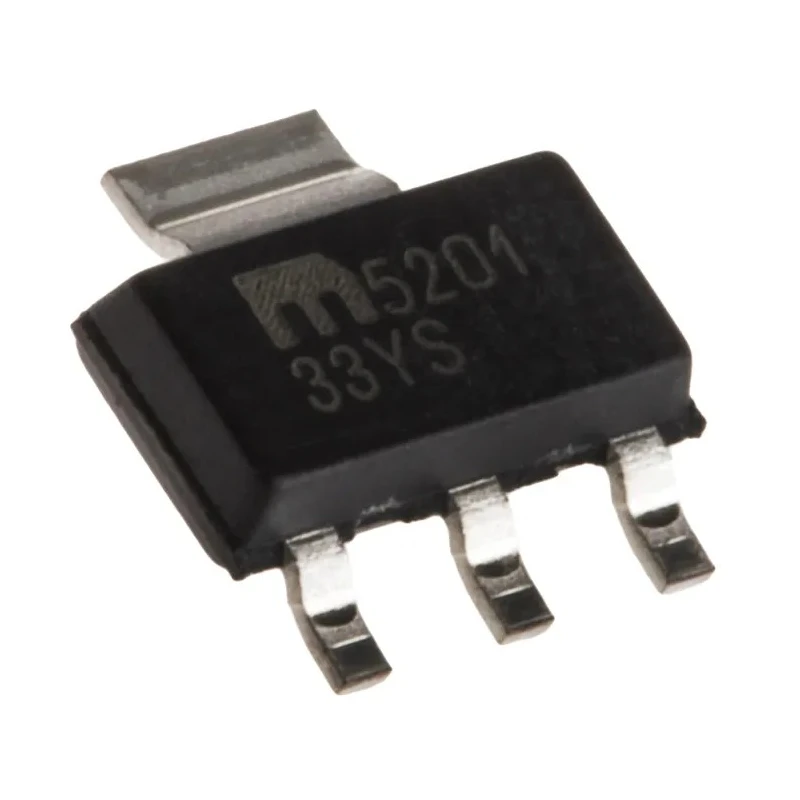

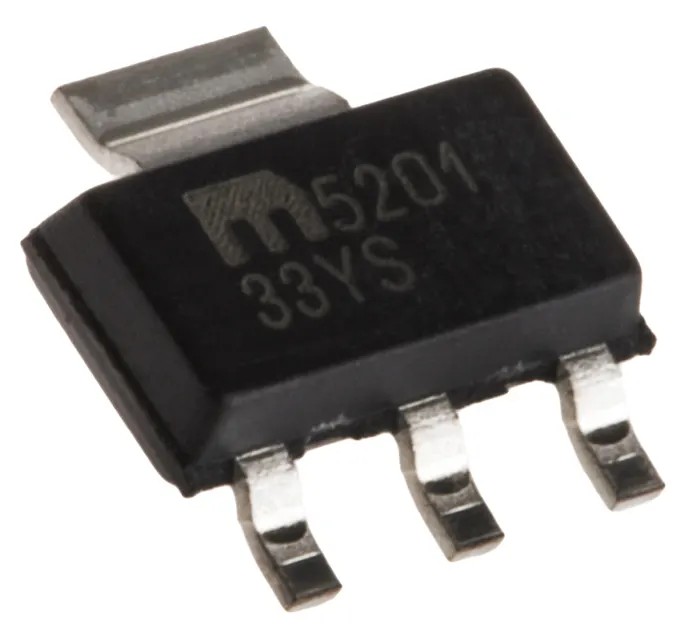

Microchip Low Dropout Voltage Regulator 3.3 V 200mA 26 V Maximum Input Voltage SOT-223 4-Pin MIC5201-3.3YS-TR

Microchip MIC5201-3.3YS-TR is a precision low dropout (LDO) voltage regulator designed to provide a stable 3.3 V output voltage with a maximum current capacity of 200 mA. Housed in a compact SOT-223 4-pin surface mount package measuring 6.7 mm in length, 3.71 mm in width, and 1.7 mm in height, it is well-suited for compact electronic circuits requiring regulated power.

This regulator features a very low quiescent current of 10 nA, making it highly energy efficient for battery-powered and low-power applications. It operates with a wide input voltage range from 2 V to a maximum of 26 V and maintains voltage regulation with positive polarity, ensuring consistent performance across varying loads and temperatures up to 125°C.

Engineered for applications in electronics manufacturing, embedded systems, and power management IC designs, the MIC5201-3.3YS-TR provides reliable output voltage regulation in a small footprint, allowing designers to optimize space on printed circuit boards.

Key features include its surface mount compatibility for easy automated assembly, low dropout voltage for enhanced efficiency, and stable operation under high temperature environments. This voltage regulator is suitable for industrial, consumer electronics, and laboratory instrumentation applications requiring precise voltage control.

Features low quiescent current of 10 nA for energy-efficient applications. Compact surface mount SOT-223 package measuring 6.7 mm length by 3.71 mm width and 1.7 mm height. Maintains stable voltage regulation with positive polarity and low dropout voltage.

Operates reliably up to a maximum ambient temperature of 125°C. Designed for surface mount applications requiring a regulated 3.3 V power supply. Supports input voltage range from 2 V minimum up to 26 V maximum. Includes 4 pins for easy PCB integration and electrical connectivity.

Ideal for electronics, power management IC circuits, and embedded system power solutions.

This product is a new condition power management IC from Microchip offering high performance and reliability. It is part of the MIC5201 series optimized for voltage regulation tasks in demanding electronic systems. Available with standard SOT-223 packaging, it integrates easily into various circuit designs, ensuring power supply stability and efficiency.
