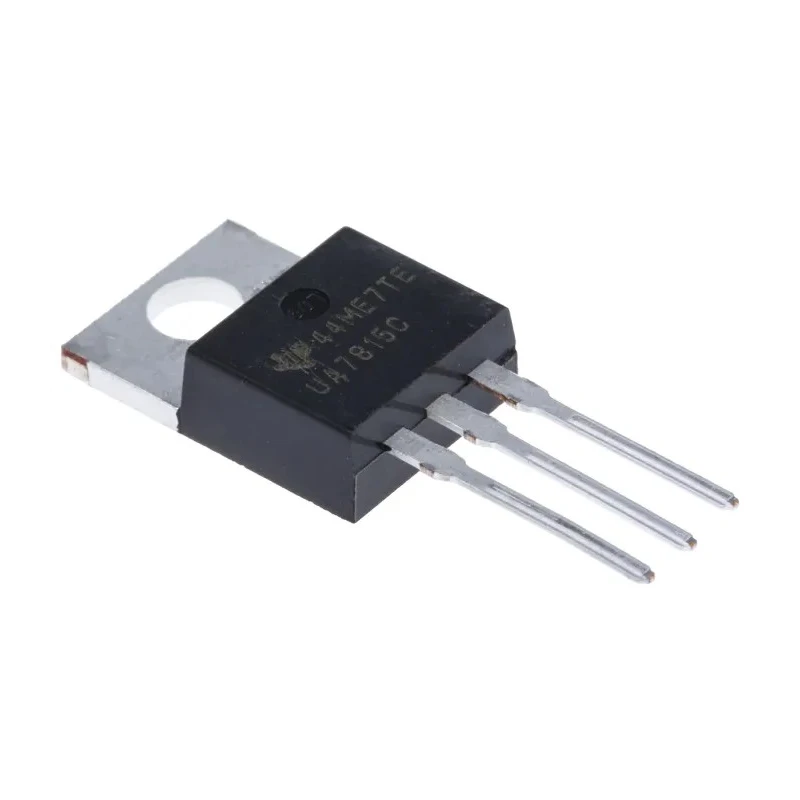

Texas Instruments Voltage Regulator 30V TO-220 3-Pin UA7815CKCS

Texas Instruments UA7815CKCS is a high-quality linear voltage regulator in a TO-220 3-pin package, offering a fixed 15V output voltage suitable for a wide range of industrial and electronic applications. It efficiently regulates voltage in circuits requiring a stable power supply with an input voltage range of 17.5V to a maximum of 30V.

This device integrates internal thermal overload shutdown and current limiting features, ensuring safe operation and protecting the circuit from damage due to excessive current or temperature conditions. The robust through-hole mounting style and compact dimensions (10.16 mm length, 8.7 mm height, and 4.58 mm width) make it adaptable for incorporation in various electronic assemblies.

The UA7815CKCS regulator can deliver up to 1.5A output current within the μA78xx family and is designed to provide linear voltage regulation with minimal external parts, simplifying circuit design and increasing reliability. Its positive polarity and stable output make it suitable for telecommunications equipment, computing hardware, portable devices, and on-card regulation where single-point voltage regulation is problematic.

Operating temperature tolerance up to 125°C allows the regulator to be used in demanding environments typical in industrial, laboratory, and manufacturing settings. The product falls under the broad category of power management integrated circuits, supporting dependable voltage regulation and energy efficiency.

Provides a stable 15V output voltage with internal current limiting. Supports a maximum input voltage of 30V and minimum input of 17.5V. Features internal thermal overload protection for safe operation. Mounts via through-hole installation suitable for robust circuits.

Compact TO-220 package with dimensions 10.16 mm length, 8.7 mm height, and 4.58 mm width. Designed for linear regulation applications in telecommunications and computing. Output current capability is up to 1.5A for the μA78xx series.

Operates at temperatures up to 125°C maximum. Simple to use with no need for external components in typical applications. Ideal for on-card regulation to reduce noise in electronic circuits. Explore our broad selection of power management ICs and Voltage Regulators at EnvMart for reliable electronic circuit performance enhancement.
