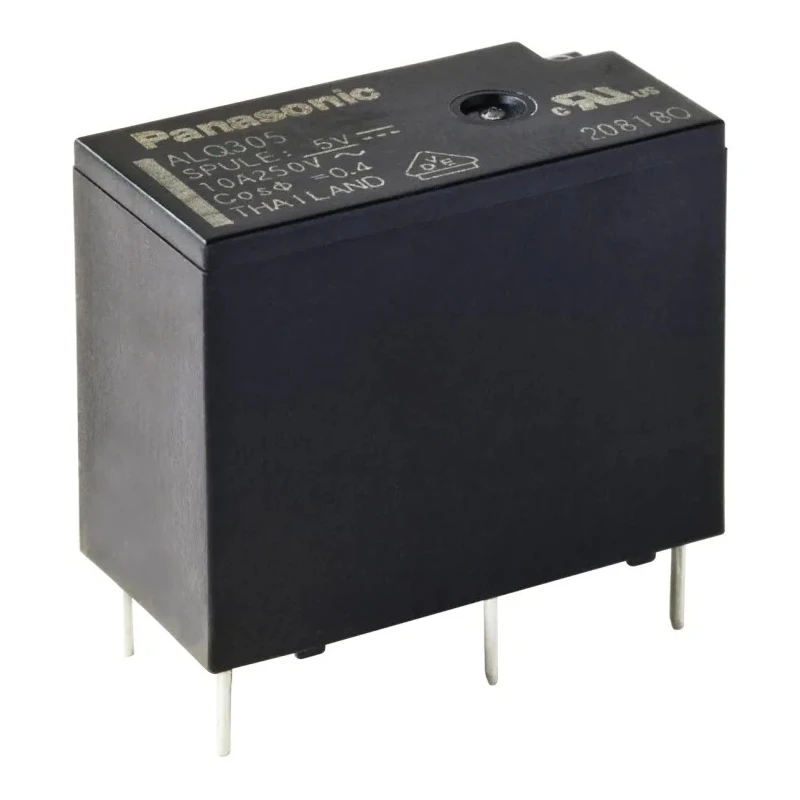

Panasonic PCB Power Relay 12V DC Coil 10A Switching Current SPDT ALQ1F12
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 15.6mm |
| Length | 20mm |
| Model | ALQ1F12 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ALQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Ambient Temperature | - 40°C to +85°C |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, cULus, cUL, UL, VDE, CQC |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 400mW |
| High surge voltage | 8000 V |
| High breakdown voltage | 4000 V |
Key Features
- Compact relay optimized for PCB mounting with dimensions 20mm x 10mm x 15.6mm.
- Operates reliably between - 40°C and +85°C ambient temperatures.
- Silver alloy contacts ensure durable electrical performance with low 100mΩ contact resistance.
- High surge voltage tolerance of 8000 V and breakdown voltage of 4000 V for enhanced durability.
- Coil resistance is 360Ω consuming 400mW coil power to operate.
- Switching capacity supports up to 500VA power and 250V AC voltage.
- Complies with multiple safety and industry standards including CSA, UL, VDE, and CQC.
- Designed for diverse industrial environments including appliances, robotics, power supplies, and HVAC systems.
Product Description
Panasonic ALQ1F12 PCB Power Relay is a compact and highly reliable power relay designed for mounting on printed circuit boards (PCB). Featuring a 12V DC coil voltage and 10A switching current with Single Pole Double Throw (SPDT) contact configuration, this relay excels in a wide range of industrial and commercial applications.
The relay measures 20mm in length, 10mm in width, and 15.6mm in height, making it suitable for space-constrained designs. It operates efficiently over a broad ambient temperature range from -40°C to +85°C, ensuring consistent performance under extreme conditions.
Constructed with silver alloy contacts, the relay offers excellent conductivity and durability, maintaining a low contact resistance of 100 milliohms. The coil resistance is precisely 360 ohms, with a coil power consumption of 400 milliwatts, contributing to low power operation. It withstands high surge voltages up to 8000 V and breakdown voltages up to 4000 V, enhancing longevity in demanding electrical environments.
The ALQ1F12 supports switching power up to 500 VA and switching AC voltages as high as 250V, suitable for controlling motors, appliances, and industrial equipment. The relay holds approvals from rigorous safety and standards organizations including CSA, cULus, UL, VDE, and CQC, reflecting its compliance with international safety and quality standards.
This Panasonic PCB Power Relay finds extensive use in applications such as refrigerators, cooking ovens, washing machines, air conditioners, motor controls, robots, and power supply systems. Its compact size combined with robust electrical ratings makes it ideal for automation and signal conditioning systems requiring dependable switching performance.
Compact relay suitable for printed circuit board mounting. Wide operating temperature range from -40°C to +85°C ensures suitability in harsh conditions. High surge and breakdown voltages provide electrical robustness. Silver alloy contacts ensure low contact resistance and longevity.
Consumes low coil power of 400mW at 12V DC coil voltage. Switching current rating up to 10A with AC and DC voltage compatibility. Conforms to multiple international safety standards. Ideal for industrial automation, HVAC, and appliance applications.
Manufactured in Thailand under strict quality controls. Explore a wide range of Power Relay products and components at EnvMart to meet your electronic and industrial control needs with confidence.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 10A.
The relay measures 20mm in length, 10mm in width, and 15.6mm in height.
It operates with a coil voltage of 12V DC.
The relay operates reliably within an ambient temperature range of -40°C to +85°C.
This unit features a Single Pole Double Throw (SPDT) contact configuration.
The contact resistance is 100 milliohms (100mΩ).
The coil resistance is 360Ω, and it consumes 400mW of power to operate.
It can withstand high surge voltages up to 8000 V and has a breakdown voltage of 4000 V.
This relay complies with multiple safety standards including CSA, cULus, UL, VDE, and CQC.
This relay is suitable for applications in appliances, robotics, power supplies, and HVAC systems.
The relay supports switching AC voltage up to 250V and DC voltage up to 30V.
This model is designed for PCB (Printed Circuit Board) mounting.
