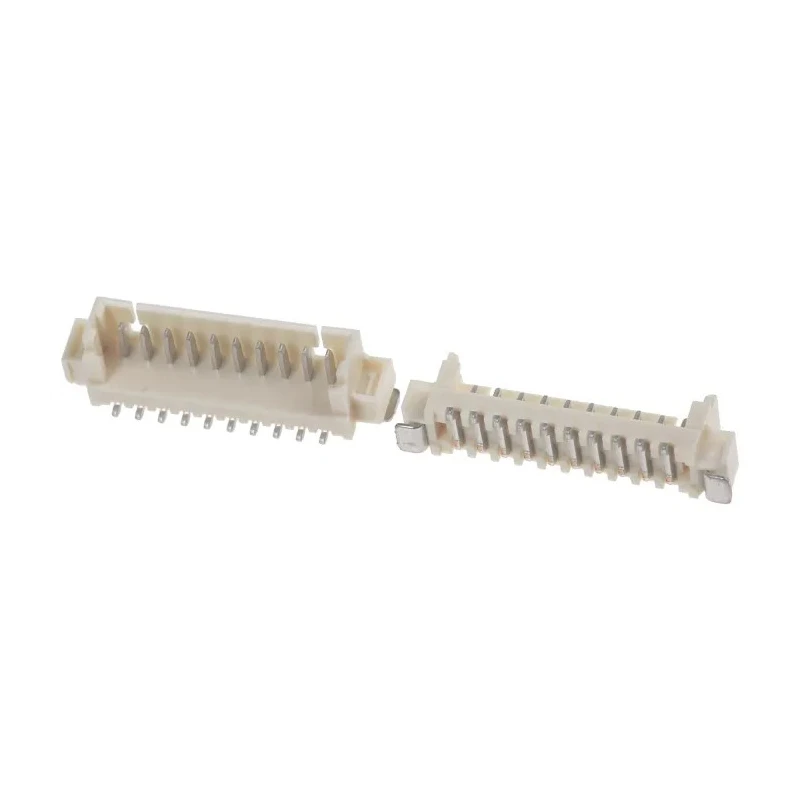

Molex 53398 Series Straight Surface PCB Header, 10 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 53398-1071

Molex 53398-1071 is a Straight Surface PCB Header from the 53398 Series, featuring 10 male contacts in a single row with a 1.25 mm pitch. This shrouded wire-to-board connector is designed for surface mounting, supporting a maximum voltage of 125V and current of 1A per contact. The housing is made of durable nylon while contacts utilize phosphor bronze with tin plating, providing reliable electrical conductivity and resistance to corrosion.

The header has a tail pin length of 0.6 mm optimized for surface soldering on PCBs, enhancing mechanical stability and strain relief. It operates efficiently in extreme temperature conditions ranging from -40°C to 105°C, making it suitable for industrial and harsh environment applications.

Its compact 1.25 mm pitch allows significant PCB space savings compared to larger pitch connectors, supporting high-density electronic assemblies. The product includes a secure friction locking mechanism that prevents accidental disconnection caused by vibration or handling errors. Tested for 30 mating cycles, it guarantees durability even in applications requiring frequent connections and reconnections.

At an approximate weight of 0.3 grams, this PCB header minimizes mechanical stress on circuit boards. It is perfectly suited for telecommunications systems, industrial automation controls, and healthcare technology equipment where dense and reliable PCB connections are critical.

Supports up to 1A current per contact ensuring reliable electrical performance. Constructed with a nylon housing and phosphor bronze contacts plated with tin for durability. Operates reliably in temperatures ranging from -40°C to 105°C for harsh environments.

Tail pin length of 0.6 mm designed for surface soldering enhances overall connection stability. Compact 1.25 mm pitch saves PCB space, ideal for high-density electronic assemblies. Designed with a friction locking mechanism to prevent accidental unmating and vibration issues.

Durability tested for up to 30 mating cycles, suitable for frequent rewiring applications. Lightweight construction at approximately 0.3 g minimizes board strain during use. Ideal for telecommunications, industrial automation, and healthcare technology applications.

Ensures high-performance wire-to-board interconnections with strong mechanical retention. Explore more PCB Headers and Connector solutions at EnvMart for your industrial, electronic, and telecommunications projects.
