Panasonic PCB Power Relay 12V dc Coil 90A Switching Current SPST HE1AN-W-DC12V-Y6

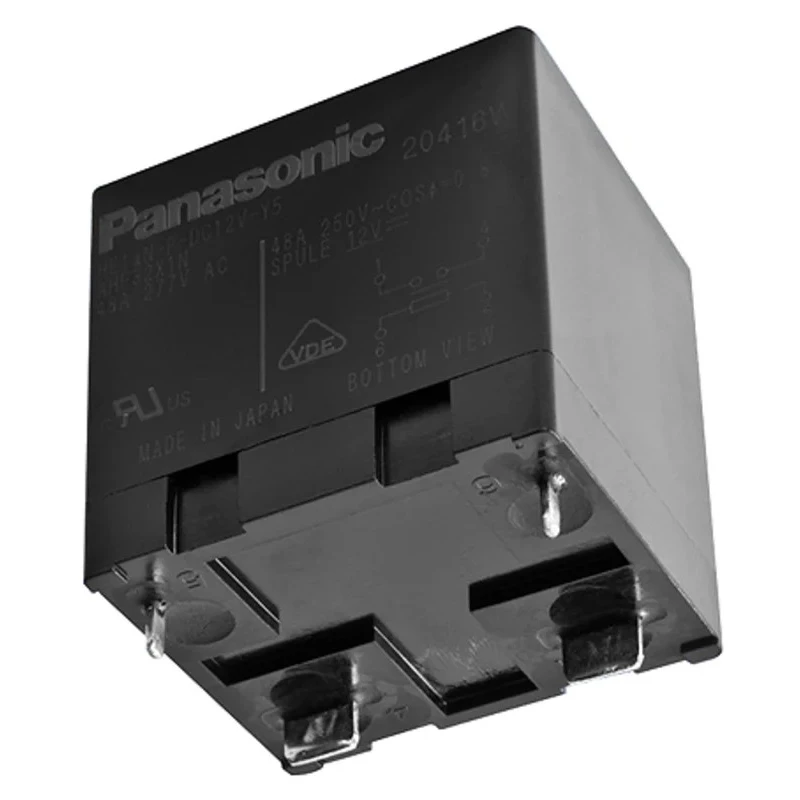

Panasonic HE1AN-W-DC12V-Y6 PCB Power Relay is engineered for industrial and commercial electrical applications requiring reliable switching at high current loads. With a 12V dc coil voltage and a switching current capacity of 90A, this relay supports efficient and durable circuit control for demanding environments.

The relay utilizes silver alloy contacts known for excellent conductivity and resistance to welding under load, enhancing life expectancy and performance. Its SPST (Single Pole Single Throw) contact configuration enables straightforward on-off switching functionality on printed circuit boards.

The PCB mounting with robust PCB pin terminals allows easy integration into electronic equipment, including office machinery like copiers, household appliances such as air conditioners and water heaters, and industrial machinery including molding and packaging equipment.

Designed to operate reliably in a wide temperature range from -50°C to +85°C, the relay maintains performance under varying environmental conditions. The coil resistance of 160Ω and coil power consumption of 1.92W balance energy efficiency with operational stability.

Dimensions of 38mm length, 33mm width, and 38.8mm height ensure compactness suitable for space-constrained PCB layouts. The relay's contact resistance is low (10 mΩ), supporting high efficiency and minimal signal loss.

The product complies with RoHS and VDE standards, assuring environmental and safety compliance. It comes directly from Panasonic's HE series of PCB relays known for high resistance to contact welding, high capacity, long life, and excellent surge resistance.

This power relay is ideal for use in industrial automation, HVAC systems, manufacturing equipment, and home appliance control circuits where reliable high current switching is essential.

Explore similar Power Relay solutions in the Electronics & Electricals category at EnvMart for optimized electrical switching and control components relevant to your industrial or commercial needs.

Features a Silver Alloy contact material ensuring reliable conductivity and durability. Designed for PCB mount with PCB pin terminal type for stable installation. Coil resistance of 160Ω with a coil power rating of 1.92W improves efficiency.

Supports a maximum operating temperature of 85°C and minimum of -50°C, making it robust in various environments. Compact dimensions with length 38mm, width 33mm, and height 38.8mm enable space-saving designs. SPST contact configuration suitable for simple switching roles in circuits.

Switching AC voltage rating up to 277V ac with a switching power of 24.9 kVA. Meets RoHS and VDE standards ensuring compliance and safety. Originates from Japan reflecting quality manufacturing standards.
