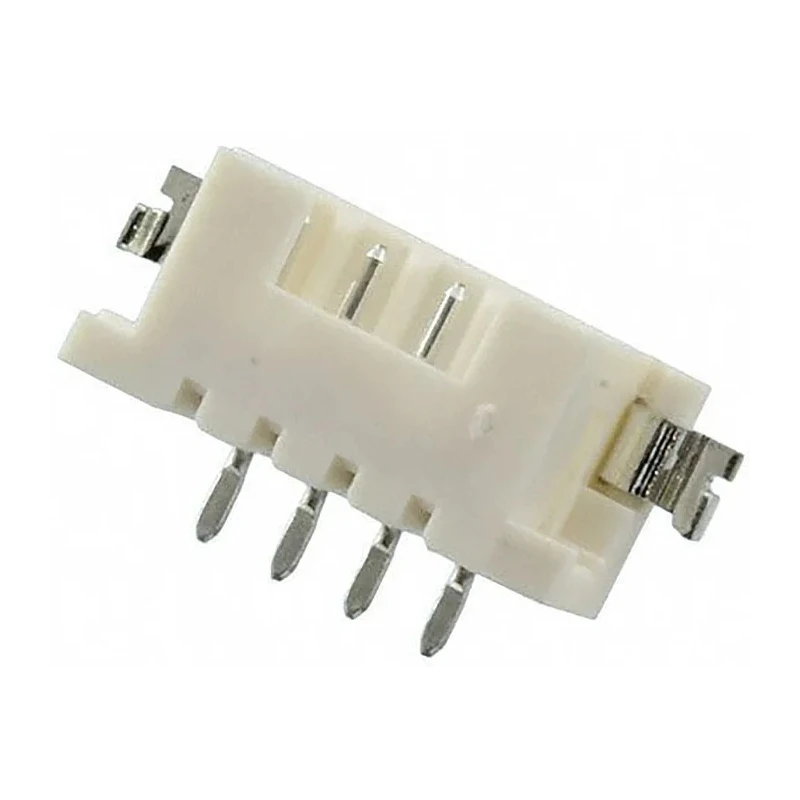

Hirose DF3 Series Right Angle Surface PCB Header 4 Contacts 2 mm Pitch 1 Row Shrouded DF3EA-4P-2H(21)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 3A |
| Model | DF3EA-4P-2H(21) |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Low profile design ideal for surface mount technology.
- 4 contact points with 2 mm pitch ensuring reliable electrical connection.
- Right angle orientation with shrouded housing for enhanced protection.
- Constructed with polyamide housing and brass contacts plated with tin.
- Surface mounting type with solder termination for secure attachment.
- Operating temperature range from -55°C to 105°C.
- Designed for board-to-board and wire-to-board connector systems.
- Current rating of 3A and voltage rating of 250V suitable for various electronic applications.
Product Description
Hirose DF3EA-4P-2H(21) is a Right Angle Surface PCB Header connector from the DF3 series featuring 4 contacts with a 2 mm pitch and single-row configuration. This shrouded PCB header is designed for reliable SMT applications requiring compact and low profile connectors.
The connector housing is made of polyamide, providing excellent durability and heat resistance, while the brass contacts plated with tin ensure robust electrical conductivity. The right angle orientation aids in space-efficient PCB layout designs.
The component supports a current rating of 3A and operates at voltages up to 250V, suitable for business equipment such as printers and copy machines. Its operating temperature range spans from -55°C to 105°C, enabling performance across diverse environmental conditions.
Additional features include a friction locking mechanism that secures a reliable connection with mating DF3 sockets, and PCB mounting bosses that guarantee precise placement during soldering. Reinforced metal fittings enhance mechanical stability by preventing peeling in the solder joint area.
Applications for this PCB header include electronic equipment requiring board-to-board and wire-to-board connections, especially in compact, low-profile designs. Low profile design ideal for surface mount technology. 4 contact points with 2 mm pitch ensuring reliable electrical connection.
Right angle orientation with shrouded housing for enhanced protection. Constructed with polyamide housing and brass contacts plated with tin. Surface mounting type with solder termination for secure attachment. Operating temperature range from -55°C to 105°C.
Designed for board-to-board and wire-to-board connector systems. Current rating of 3A and voltage rating of 250V suitable for various electronic applications. Friction locking mechanism for secure mating with DF3 sockets.
Reinforced metal fittings prevent PCB peeling and improve mechanical strength. Choose from EnvMart's extensive PCB Header selection for reliable electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this model is 3A, making it suitable for various electronic applications.
This PCB header has a voltage rating of 250V, allowing it to be used in a variety of electronic systems.
It features a 2 mm pitch and has 4 contacts, designed for reliable electrical connections in compact applications.
The operating temperature range is from -55°C to 105°C, enabling it to perform in diverse environmental conditions.
The housing is made from polyamide, while the contacts are brass plated with tin, ensuring robust electrical conductivity.
It is a surface mounting type with solder termination, providing a secure attachment to the PCB.
This unit is designed for both board-to-board and wire-to-board connector systems, making it versatile for various applications.
This PCB header has a right angle orientation, which aids in space-efficient PCB layout designs.
Yes, it features a friction locking mechanism that secures a reliable connection with mating DF3 sockets.
The connector has a single-row configuration, which helps in compact designs for electronic equipment.
The country of origin for this PCB header is Japan.
Reinforced metal fittings are included to prevent PCB peeling and improve mechanical strength in solder joints.
