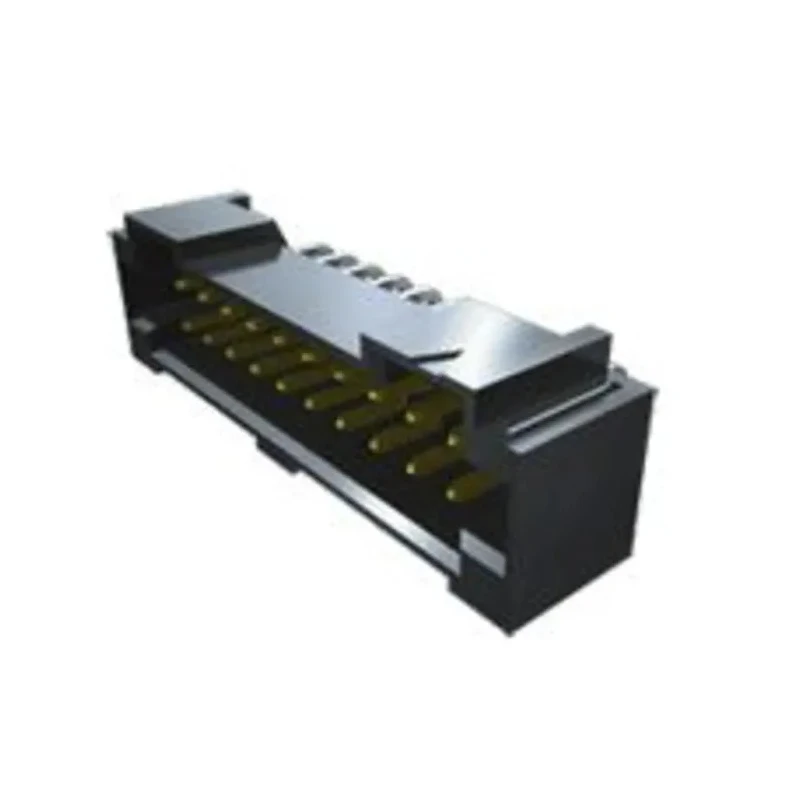

Samtec Right Angle Through Hole PCB Header, 2 mm Pitch, 40 Contacts, 2 Row, Shrouded, T2M-120-01-L-D-RA-WT

The Samtec T2M-120-01-L-D-RA-WT is a high-performance right angle through hole PCB header designed for demanding electronic applications. Featuring a 2 mm pitch and shrouded housing, this connector is engineered for reliability in wire-to-board connections, especially where space is at a premium.

With a two-row configuration and a total of 40 contacts, the header accommodates dense layouts, making it ideal for advanced PCBs. The contacts are manufactured from phosphor bronze and finished with gold plating, ensuring excellent electrical conductivity and corrosion resistance. The shrouded design, crafted from liquid crystal polymer, provides protection against mechanical stress and aids in precise mating.

This header supports solder termination and is built for secure and durable mounting. Rated for a current of 3.8A and voltage up to 350V, it is suitable for a wide range of industrial, instrumentation, and commercial electronic contexts. The product is tailored for wire-to-board connector systems and is compatible with Tiger Eye™ contact sockets for rugged applications.

Designed for operation in environments ranging from -55°C to 125°C, the T2M-120-01-L-D-RA-WT can serve reliably in both high and low temperature applications. The minimum mating pin length of 2.29 mm ensures robust connection integrity. Special mechanical features include screw down and weld tabs, making this header particularly suited for environments subject to vibration or mechanical stress.

Industrial, laboratory, and commercial installations benefit from this connector’s robust electrical and mechanical specifications. In manufacturing, automation, and instrumentation projects, it provides a secure and consistent interface for PCB development and assembly. It is frequently used in control systems, test equipment, and signal distribution boards.

For engineers and designers seeking a reliable, durable, and high-density PCB Header solution, Samtec’s T2M Series and this exact T2M-120-01-L-D-RA-WT model provide extensive compatibility, flexibility, and longevity.
