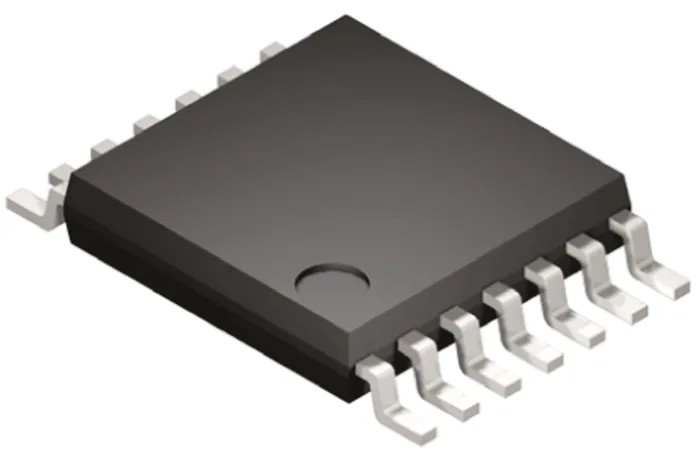

Texas Instruments Operational Amplifier 2.5 MHz, 14-Pin TSSOP Surface Mount, 3-12V LMP7704MT/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.9mm |
| Length | 5mm |
| Model | LMP7704MT/NOPB |
| Width | 4.4mm |
| Mount Type | Surface |
| Series | LMP7704 |
| Output Current | 15mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 2.5MHz |
| Input Bias Current | 50 pA |
| Slew Rate | 1V/μs |
| Input Offset Current | 40 fA |
Key Features
- Features a low input bias current of 50 pA for precision amplification.
- Operates within a wide supply voltage range from 3V to 12V.
- Low input offset voltage of 520 μV enhances accuracy in sensitive circuits.
- Slew rate of 1 V/μs ensures fast response in dynamic applications.
- Designed for operation in temperatures from -40°C to 125°C, suitable for industrial environments.
- Output current capability is up to 15 mA for driving various loads.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Texas Instruments LMP7704MT/NOPB is a high precision operational amplifier designed for demanding industrial and commercial applications requiring low bias current and offset voltage. This device features a 2.5 MHz gain bandwidth product, allowing precise signal conditioning in multi-channel configurations. The compact 14-pin TSSOP surface mount package facilitates easy integration into space-constrained PCB layouts.
The amplifier operates with supply voltages ranging from 3V to 12V, making it compatible with various power management systems. Its input bias current is minimized to 50 pA, which is ideal for sensitive measurement and sensor interfacing tasks. The input offset voltage of 520 μV ensures accuracy by reducing signal error, and the slew rate of 1 V/μs provides fast transient response.
Engineered to withstand harsh operating conditions, this amplifier can function reliably from -40°C to 125°C ambient temperatures. Outputs delivering up to 15 mA of current enable driving moderate loads without external buffering. The LMP7704 series is RoHS compliant, supporting environmentally responsible designs.
This Operational Amplifier is widely used in instrumentation, data acquisition, and industrial signal processing applications where precision and stability are critical. Precision low input bias current enhances measurement accuracy.
Wide supply voltage range supports versatile power designs. Compact 14-pin TSSOP package saves PCB space. High temperature rating suitable for industrial use. Fast slew rate improves dynamic signal handling. RoHS compliant for environmental safety.
Reliable operation across extended temperature ranges. Suitable for multi-channel amplification in complex systems. Explore the Electronics & Electricals category at EnvMart for more semiconductor and amplifier products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 2.5 MHz, allowing for precise signal conditioning in various applications.
It operates within a supply voltage range from 3V to 12V, making it compatible with various power management systems.
The LMP7704MT/NOPB can deliver an output current of up to 15 mA, suitable for driving moderate loads without external buffering.
This operational amplifier features a low input bias current of 50 pA, which is ideal for sensitive measurement applications.
The dimensions of the TSSOP package are 5 mm in length, 4.4 mm in width, and 0.9 mm in height.
It is designed to operate in temperatures ranging from -40°C to 125°C, making it suitable for industrial environments.
The slew rate of this operational amplifier is 1 V/μs, ensuring fast response in dynamic applications.
This model features 4 channels, allowing for multi-channel amplification in complex systems.
Yes, this operational amplifier complies with RoHS standards, ensuring environmental safety in its design.
The input offset voltage is 520 μV, which enhances accuracy in sensitive circuits by reducing signal error.
The input offset current is 40 fA, contributing to the precision of the amplifier in measurement applications.
It uses a surface mount type, specifically designed in a compact 14-pin TSSOP package for easy integration into PCB layouts.
