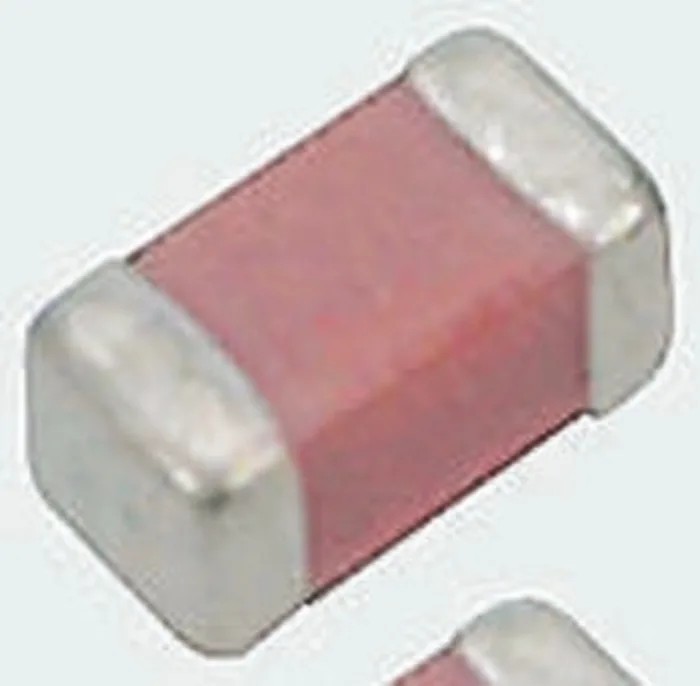

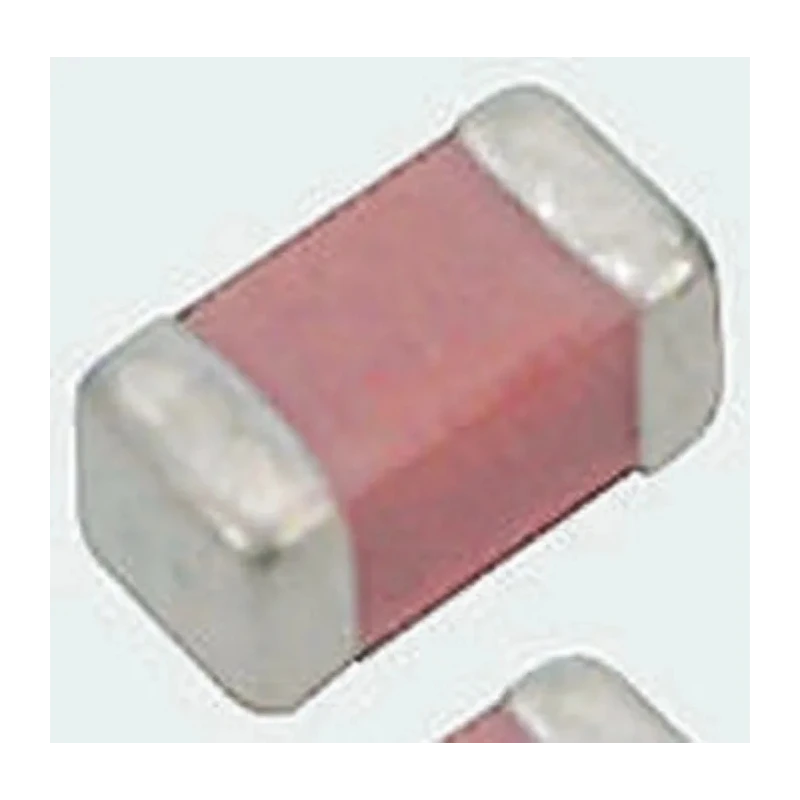

Vishay 22 nF X7R Multilayer Ceramic Capacitor 50V DC ±10% Surface Mount 0603 VJ0603Y223KXAAC

Free Delivery in India | Lowest Global Shipping Charges

Vishay 22 nF X7R Multilayer Ceramic Capacitor 50V DC ±10% Surface Mount 0603 VJ0603Y223KXAAC

Name: Vishay 22 nF X7R Multilayer Ceramic Capacitor 50V DC ±10% Surface Mount 0603 VJ0603Y223KXAAC
Brand: Vishay
SKU: 201825
Price: 0.07 USD
Availability: InStock



Category Multilayer Ceramic Capacitor Brand Vishay Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	Vishay
Height	0.92mm
Length	1.6mm
Model	VJ0603Y223KXAAC
Packaging	7 in Reel/Paper Tape
Width	0.8mm
Mount Type	Surface
Series	VJ
Termination Type	Surface Mount
Maximum Operating Temperature	150°C
Tolerance	±10 %
Capacitance	22nF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS, JEDEC JS709A, IEC 61249-2-21
Package/Case	0603
Dielectric	X7R
Suppression Class	X7R

Key Features

This capacitor features a 0603 package size suitable for surface mounting.
It offers a capacitance tolerance of ±10%, ensuring consistent electrical performance.
The device operates reliably across a temperature range from -55°C to 150°C.
The X7R dielectric design provides good surge suppression and decoupling capabilities.
Complies with RoHS and JEDEC JS709A standards for quality and safety.
This capacitor is part of Vishay’s VJ commercial series, suitable for timing and tuning circuits.
It is ideal for sensor applications and high voltage uses up to 50V DC.
Packaging on a 7-inch reel with paper tape facilitates automated assembly processes.

Product Description

Vishay VJ0603Y223KXAAC is a surface mount Multilayer Ceramic Capacitor (MLCC) featuring a capacitance of 22 nF and rated for 50V DC. With its 0603 package size, this capacitor measures approximately 1.6mm in length, 0.8mm in width, and 0.92mm in height, making it compact for high-density circuit board applications.

The capacitor utilizes an X7R dielectric with a tolerance of ±10%, providing stable capacitance over a wide temperature range from -55°C up to 150°C. The X7R class is well known for its excellent surge suppression and filtering properties, making this capacitor ideal for decoupling and tuning applications in electronic circuits.

Designed under the VJ series, this component employs a reliable Noble Metal Electrode (NME) system and wet build process which ensures consistent quality and excellent aging characteristics. It meets RoHS, JEDEC JS709A, and IEC 61249-2-21 standards, affirming its compliance with environmental and industry quality benchmarks.

This capacitor is highly suitable for automotive, industrial, laboratory, and general electronic manufacturing uses where compact size and performance are essential. Typical use cases include timing and tuning circuits, sensor and scanner applications, decoupling filters, and high voltage surge suppression circuits.

This MLCC offers a compact 0603 surface mount package for space-saving PCB design. Capacitance is precisely controlled at 22 nF with ±10% tolerance, ensuring reliable performance. X7R dielectric material provides stable operation over extreme temperature ranges.

Rated to withstand a maximum operating temperature of 150°C. Compliant with multiple industry standards including RoHS and JEDEC. Packaged on 7-inch reels with paper tape suitable for automated pick-and-place assembly. Ideal for a wide range of applications including filtering, timing, and surge suppression.

Utilizes a wet build process and Noble Metal Electrode system for durability and performance. Explore the Electronics & Electricals category for more advanced Vishay capacitors and other electronic components at EnvMart.
