| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | ADZT15R8.2B |
| Width | 8mm |
| Mount Type | Surface |
| Series | ADZ8.2B |
| Maximum Operating Temperature | 150°C |
| Package Type | SMD0603B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 100mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 8.4V |

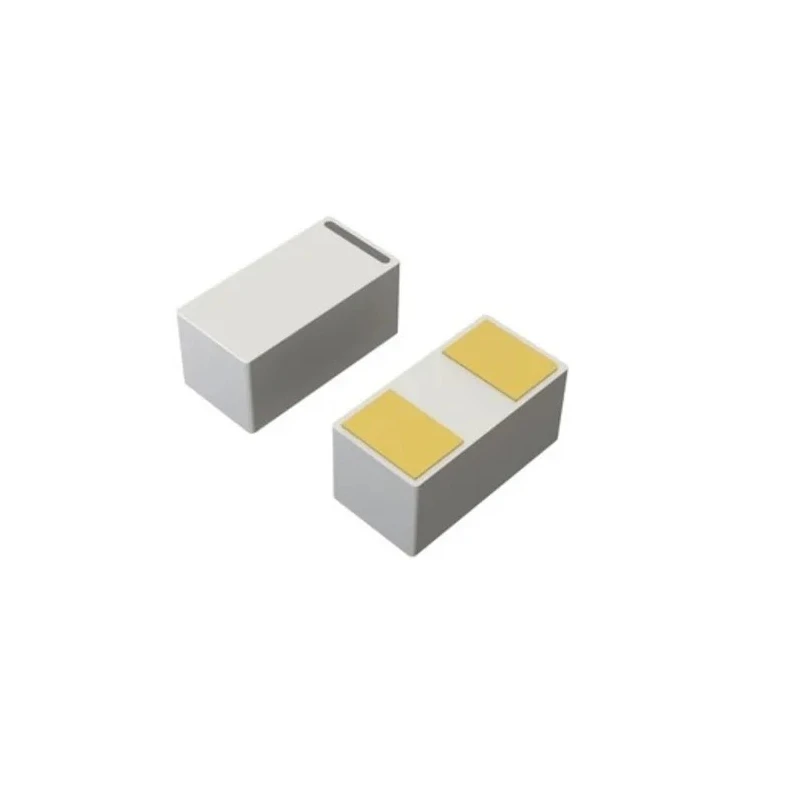

ROHM ADZT15R8.2B is a compact Surface Mount Zener Diode designed for voltage regulation in a wide range of electronic applications. Featuring a nominal Zener voltage of 8.4 V and a low power dissipation of 100 mW, this diode fits 0603 package sizes suitable for dense automated PCB assembly in highly miniaturized devices.
The diode configuration is single with two pins, providing reliable operation with a test current of 5 mA. Its maximum reverse leakage current of 500 nA along with the ability to operate over a wide temperature range of -55°C to 150°C ensures performance stability and longevity, even in harsh industrial environments.
This RoHS-compliant Zener diode in the ADZ8.2B series is widely used in circuit protection, voltage reference, and regulation setups, especially in small form factor electronics like smartphones, wearables, and portable instrumentation.
The 8 mm width and 0603B package style make the ADZT15R8.2B ideal for applications requiring space-saving components without compromising precision. Its robust operating temperature and power rating positions it well for industrial, consumer electronics, telecommunications, and automotive technology uses.
Nominal Zener voltage of 8.4 volts for voltage regulation applications. Surface mount 0603 package ideal for high-density PCB layouts. Maximum power dissipation of 100 milliwatts supports low power circuit needs. Operating temperature ranges from -55°C to 150°C ensuring reliability.
Low maximum reverse leakage current of 500 nanoamperes minimizes leakage losses. Pin count of 2 supports straightforward circuit integration. Test current specified at 5 milliamperes for performance verification. Meets RoHS standards ensuring compliance with environmental requirements.
Dimension width of 8 mm facilitates compatibility with compact designs. Series designation ADZ8.2B indicates device classification within ROHM's offerings.
Explore the Electronics & Electricals category at EnvMart for comprehensive selections of Zener Diodes and related semiconductor components optimized for diverse industrial and commercial applications.
