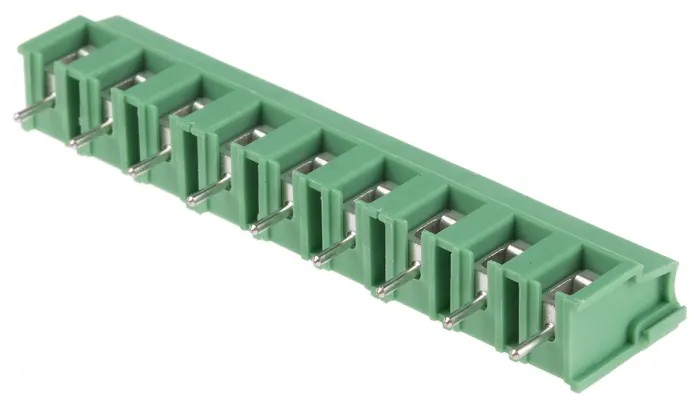

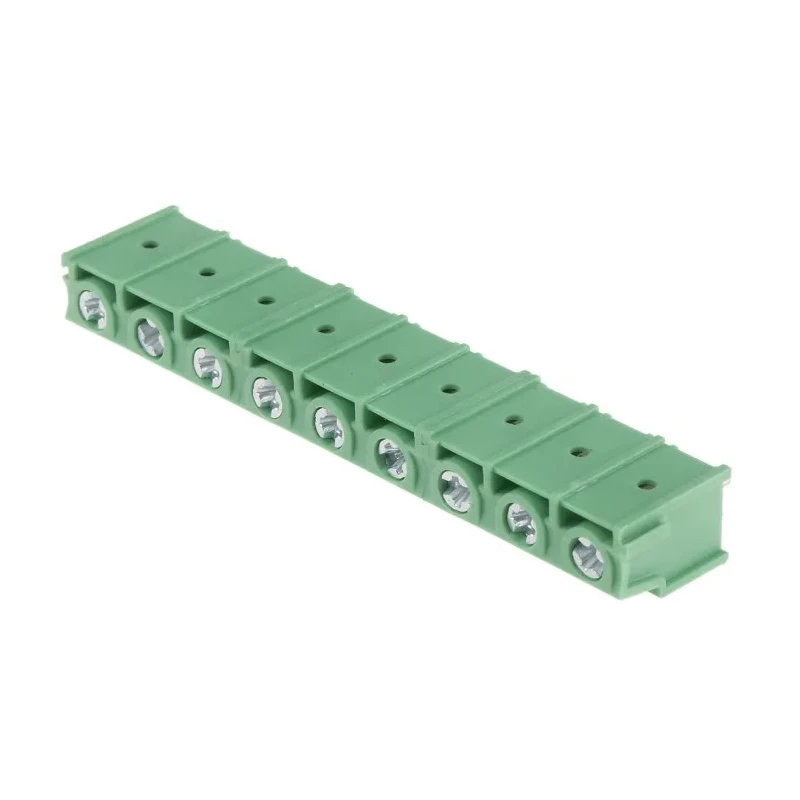

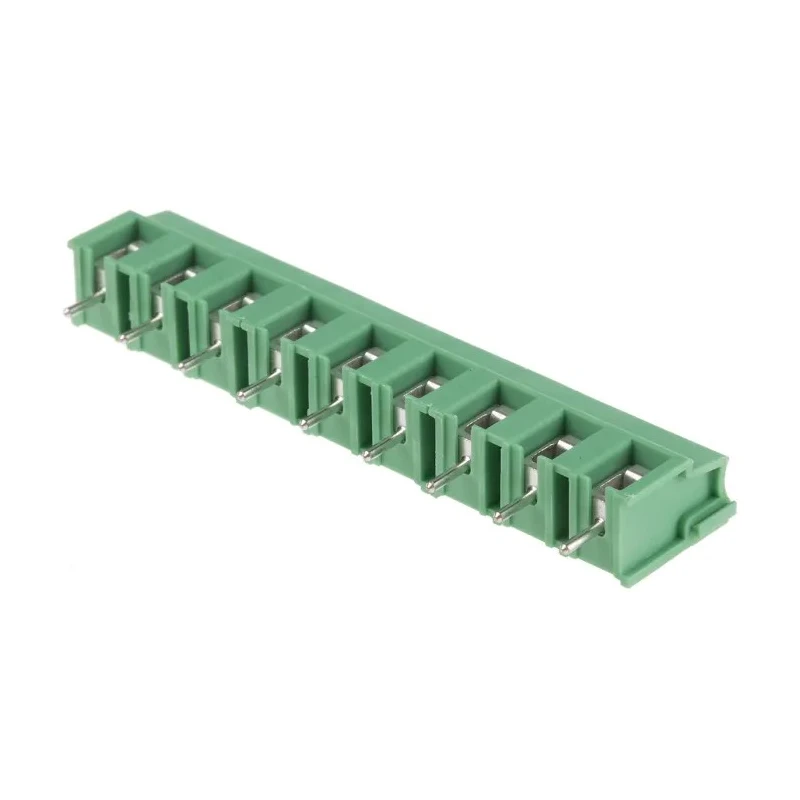

Phoenix Contact PT 2.5/9-7.5-H Series Horizontal PCB Terminal Block 9 Contacts 7.5 mm Pitch 800V 32A 1 Row 1988176
Specifications
| Country of Origin | Poland |
|---|---|
| Voltage | 800V |
| Brand | Phoenix Contact |
| Orientation | Horizontal |
| Current | 32A |
| Model | 1988176 |
| Housing Material | Polyamide |
| Series | PT 2.5/9-7.5-H |
| Number of Rows | 1 |
| Pitch | 7.5mm |
| Number of Contacts | 9 |
| DIN EN 60512-5-2 | 2003-01 |
Key Features
- High terminal block capacity with rectangular terminal block space.
- 7.5 mm pitch for standard PCB mounting.
- Accepts solid and flexible wires from 0.5 mm² to 4.0 mm².
- Rugged design suitable for larger cross sections and higher voltages.
- Horizontal orientation with a single row of contacts.
- Flammability rating UL94V-0 for enhanced safety.
- Rated current of 32A and maximum voltage of 800V for reliable performance.
- Suitable for industrial electronic component applications.
Product Description
Phoenix Contact 1988176 Horizontal PCB Terminal Block from the PT 2.5/9-7.5-H Series is engineered for reliable wire connection and PCB integration in industrial electronics. This terminal block features a single horizontal row configuration with 9 contacts spaced at 7.5 mm pitch, supporting a rated current of 32A and rated voltage of 800V, ensuring dependable power handling capabilities.
The device is constructed with durable polyamide housing that provides robust mechanical stability and excellent conductor protection. The design allows for easy, repeated connections of solid and flexible wires ranging from 0.5 mm² to 4.0 mm² (20-10 AWG). It incorporates plus/minus screw terminals to secure conductors firmly and is rated UL94V-0 for flammability, guaranteeing safety in demanding industrial environments.
This PCB terminal block is ideally suited for applications that require high terminal capacity and flexible conductor management, including industrial control systems, automation equipment, power supplies, and other electronic assemblies. The rectangular terminal block space optimizes wiring density, and the single-row horizontal orientation helps simplify PCB layout and reduce installation complexity.
Manufactured in Poland, this product complies with DIN EN 60512-5-2 standards, assuring quality and performance in demanding conditions. Although no specific additional approvals are listed, Phoenix Contact's established standards in electronic components enhance the reliability and life cycle of this terminal block.
High terminal block capacity with rectangular terminal block space. 7.5 mm pitch suitable for standard PCB applications. Supports solid and flexible wires from 0.5 mm² to 4.0 mm² (20-10 AWG). Rugged polyamide housing for durability and electrical insulation.
Rated for 32A current and 800V voltage for reliable power handling. Single-row horizontal orientation simplifies PCB layout. Flammability rating UL94V-0 ensures safety in industrial uses. Manufactured in Poland adhering to DIN EN 60512-5-2 standards.
Explore more high-quality PCB Terminal Block solutions and related Phoenix Contact products in the Electronics & Electricals category at EnvMart to fulfill industrial electronic assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a current of 32A and a maximum voltage of 800V, ensuring reliable power handling capabilities.
The contacts in this model are spaced at a pitch of 7.5 mm, which is suitable for standard PCB applications.
It accepts solid and flexible wires ranging from 0.5 mm² to 4.0 mm² (20-10 AWG), providing flexibility for various wiring needs.
This terminal block features 9 contacts in a single horizontal row configuration.
The housing is constructed from durable polyamide, which provides mechanical stability and electrical insulation.
This model has a horizontal orientation, which simplifies PCB layout and reduces installation complexity.
It has a flammability rating of UL94V-0, ensuring enhanced safety in demanding industrial environments.
This product is manufactured in Poland, adhering to quality standards.
It complies with DIN EN 60512-5-2 standards, assuring quality and performance in demanding conditions.
It is ideally suited for applications in industrial control systems, automation equipment, power supplies, and other electronic assemblies.
This terminal block features a single row of contacts, optimizing wiring density on the PCB.
