Vishay TRANSZORB TVS Diode 600 W, 2-Pin DO-214 Uni-Directional Surface Mount SMBJ24A-E3/52

Free Delivery in India | Lowest Global Shipping Charges

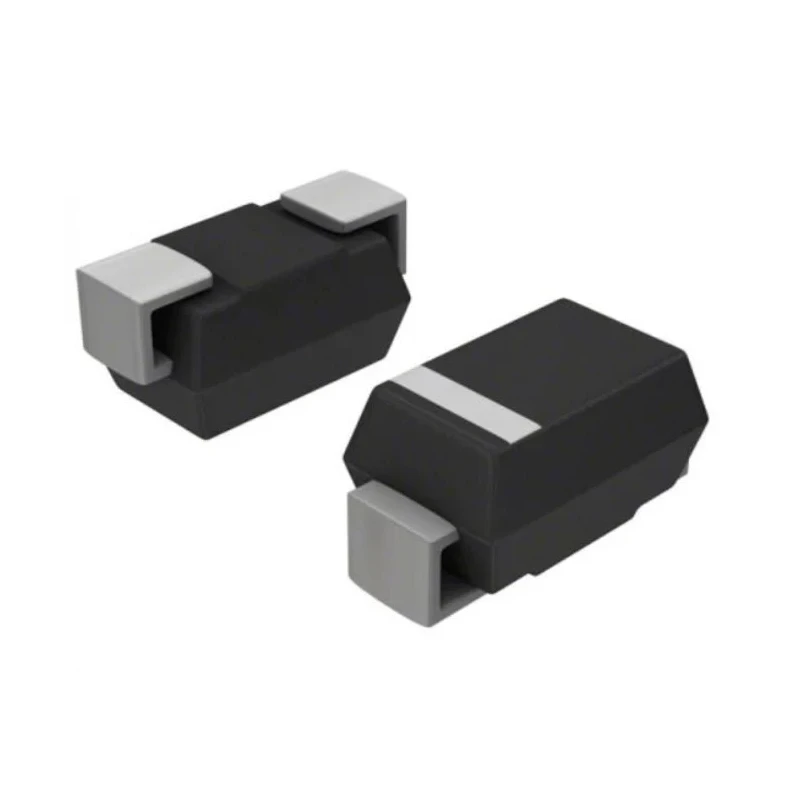

Vishay TRANSZORB TVS Diode 600 W, 2-Pin DO-214 Uni-Directional Surface Mount SMBJ24A-E3/52

Name: Vishay TRANSZORB TVS Diode 600 W, 2-Pin DO-214 Uni-Directional Surface Mount SMBJ24A-E3/52
Brand: Vishay
SKU: 200687
Price: 0.29 USD
Availability: InStock



Category TVS Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	2.24mm
Length	4.57mm
Model	SMBJ24A-E3/52
Width	3.94mm
Mount Type	Surface
Series	TRANSZORB TVS
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	38.9V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	26.7V
Maximum Reverse Stand-off Voltage Vwm	24V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	15.4A
Maximum Reverse Leakage Current	1μA
Vishay SMBJ24A, Uni-Directional TVS Diode, 600W, 2-Pin SMBBrand	Vishay
Littelfuse SZ1SMB15AT3G, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AABrand	Littelfuse

Key Features

Surface mount package type DO-214 for efficient PCB assembly.
Minimum breakdown voltage of 26.7 V with maximum reverse stand-off voltage of 24 V.
Clamping voltage is 38.9 V providing effective transient voltage suppression.
Operates in a temperature range from -55°C to 150°C for reliability.
Low maximum reverse leakage current of 1 μA ensures low power loss.
Peak pulse current rating is 15.4 A for high surge tolerance.
Glass passivated chip junction for improved durability.
Meets automotive standard AEC-Q101 for automotive electronics applications.

Product Description

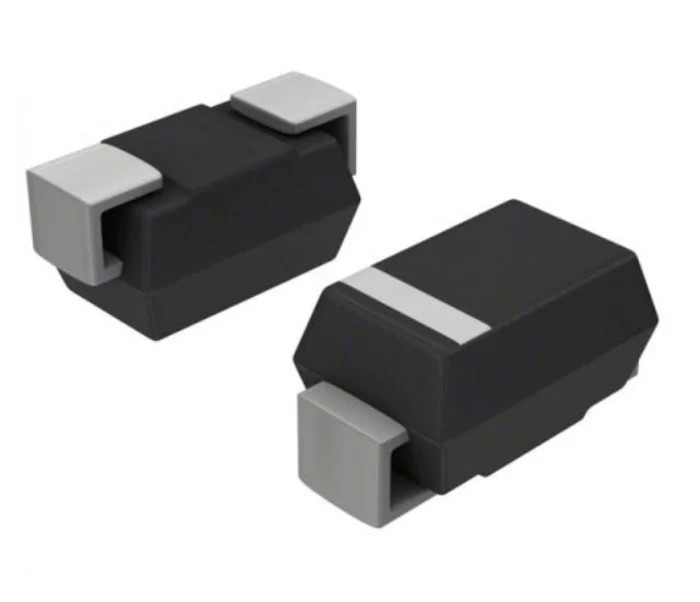

Vishay SMBJ24A-E3/52 is a TRANSZORB transient voltage suppressor diode engineered for high reliability in sensitive electronics protection. This 1-element uni-directional TVS diode features a compact surface mount DO-214 package suited for automated PCB assembly processes.

With a peak pulse power dissipation capability of 600 W and a low clamping voltage of 38.9 V, it provides robust transient voltage suppression for circuits exposed to inductive load switching and lightning induced voltage spikes. The diode operates reliably over a broad temperature range from -55°C to 150°C ensuring performance stability under harsh environmental conditions.

The device offers a minimum breakdown voltage of 26.7 V and a maximum reverse stand-off voltage of 24 V, with a peak pulse current rating of 15.4 A, enabling high surge tolerance. Its glass passivated chip junction enhances durability and reduces leakage, with a maximum reverse leakage current limited to 1 μA. Compliance with automotive standard AEC-Q101 makes it suitable for automotive electronic systems and industrial applications.

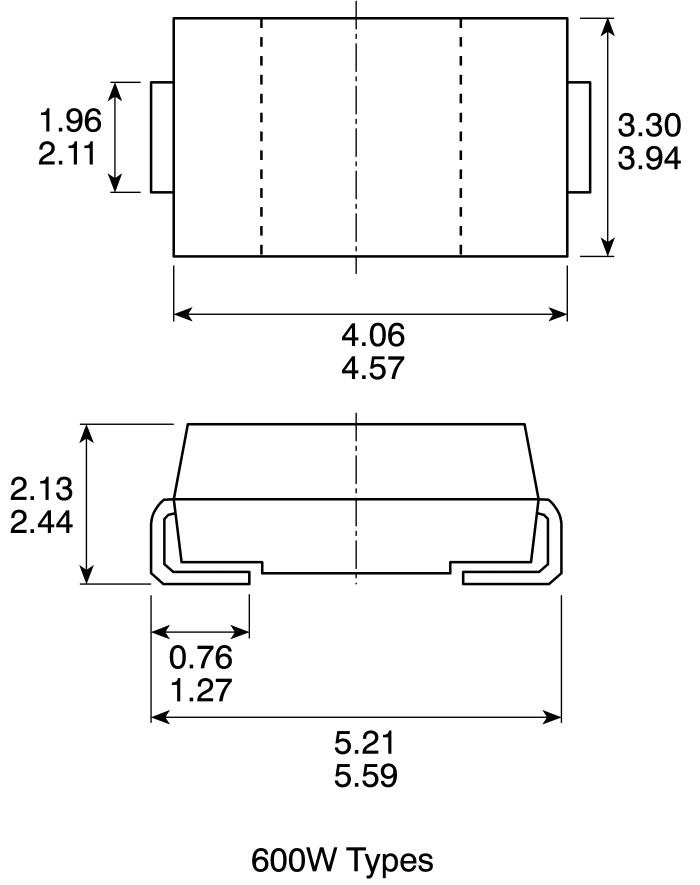

Its compact dimensions (4.57 mm length, 3.94 mm width, 2.24 mm height) allow space-efficient integration on modern circuit boards. This TVS diode is ideal for protecting integrated circuits, MOSFETs, and sensor signal lines in consumer electronics, telecommunications, industrial machinery, and automotive controllers from voltage transients.

Compact DO-214 surface mount package ensures easy automated PCB placement. Effective suppression of voltage spikes with 600 W peak pulse power rating. Wide operating temperature range from -55°C to 150°C for versatile applications.

Low leakage current and fast response enhance circuit protection. Meets automotive reliability standards (AEC-Q101). Robust clamping voltage and peak pulse current ratings for transient events. Glass passivated junction improves device longevity and stability.

Recommended for consumer electronics, industrial, telecommunication, and automotive use cases.

The Vishay SMBJ24A-E3/52 is a critical component for transient voltage protection in modern industrial, automotive, and electronic control environments. Customers can browse EnvMart's full selection of TVS Diodes and related semiconductor devices for comprehensive circuit protection solutions.
