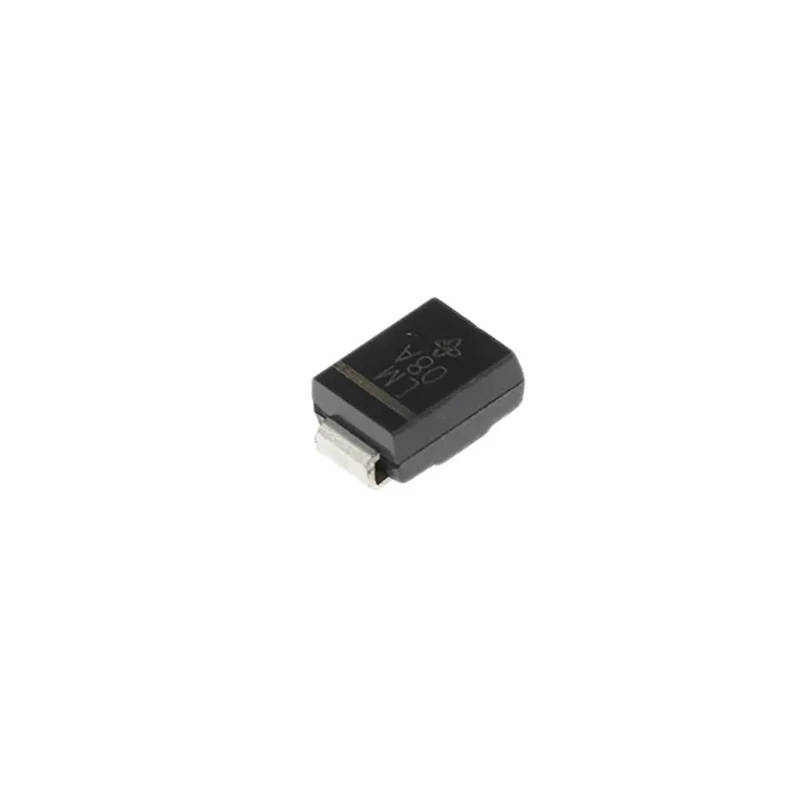

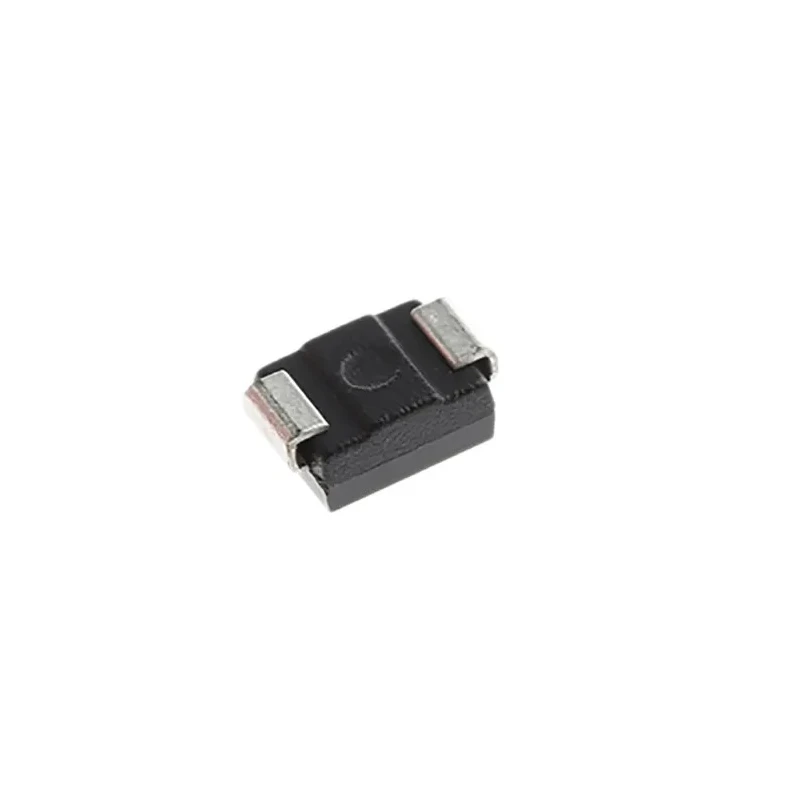

Vishay Uni-Directional 1-Element TVS Diode, 600 W Peak Pulse Power, Surface Mount DO-214 Package SMBJ15A-E3/52

Free Delivery in India | Lowest Global Shipping Charges

Vishay Uni-Directional 1-Element TVS Diode, 600 W Peak Pulse Power, Surface Mount DO-214 Package SMBJ15A-E3/52

Name: Vishay Uni-Directional 1-Element TVS Diode, 600 W Peak Pulse Power, Surface Mount DO-214 Package SMBJ15A-E3/52
Brand: Vishay
SKU: 200677
Price: 0.25 USD
Availability: InStock



Category TVS Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	2.24mm
Length	4.57mm
Model	SMBJ15A-E3/52
Width	3.94mm
Mount Type	Surface
Series	TRANSZORB TVS
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	24.4V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	16.7V
Maximum Reverse Stand-off Voltage Vwm	15V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	24.6A
Maximum Reverse Leakage Current	1μA

Key Features

Uni-directional diode configuration for effective transient voltage suppression.
600 W peak pulse power dissipation ensures robust protection against voltage spikes.
Compact DO-214 surface mount package suitable for automated PCB assembly.
Operates reliably from -55°C up to 150°C ambient temperature ranges.
Clamping voltage of 24.4 V provides excellent surge voltage control.
Low maximum reverse leakage current of 1 μA ensures minimal power loss.
Meets automotive standard AEC-Q101 for enhanced reliability.
1-element chip design with 2-pin connection configuration.

Product Description

Vishay SMBJ15A-E3/52 is a high-performance 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed to protect electronic circuits from voltage transients induced by inductive load switching, lightning, and other transient sources. Featuring a DO-214 surface mount package, this diode offers a peak pulse power dissipation of 600 W with fast response time and low incremental surge resistance.

Designed for use in sensitive ICs, MOSFETs, and signal lines, the SMBJ15A-E3/52 supports a minimum breakdown voltage of 16.7 V and a maximum reverse stand-off voltage of 15 V. Its reliable clamping voltage of 24.4 V safeguards downstream components from damaging voltage spikes.

The diode operates within a broad temperature range from -55°C up to 150°C and meets the automotive AEC-Q101 standard, ensuring high reliability in demanding automotive and industrial environments. With a maximum reverse leakage current of just 1 μA, it minimizes standby power consumption.

The diode’s compact dimensions (Length: 4.57 mm, Width: 3.94 mm, Height: 2.24 mm) support automated placement and space-efficient PCB layout. This device is compliant with MSL level 1 per J-STD-020 with a low peak soldering temperature of 260 °C, ideal for modern SMT assembly processes.

This TVS diode is widely used in applications such as consumer electronics, telecommunications, industrial control systems, and automotive electronics for transient voltage suppression and ESD protection. It ensures device longevity and system reliability by clamping high-voltage spikes effectively.

Uni-directional diode configuration for transient voltage suppression. 600 W peak pulse power capability with 10/1000 μs waveform. Compact DO-214 surface mount package for automated PCB assembly. Wide operating temperature range from -55°C to 150°C.

Clamping voltage of 24.4 V to protect circuits effectively. Low leakage current of 1 μA for minimal power dissipation. Automotive standard AEC-Q101 ensures reliability in harsh environments. 1-element chip and 2-pin configuration for simple integration.

Meets MSL level 1 for safe soldering and handling. Ideal for electronics protection in consumer, industrial, and telecom fields. Explore more electronic components and TVS Diodes in the Electronics & Electricals category at EnvMart.
