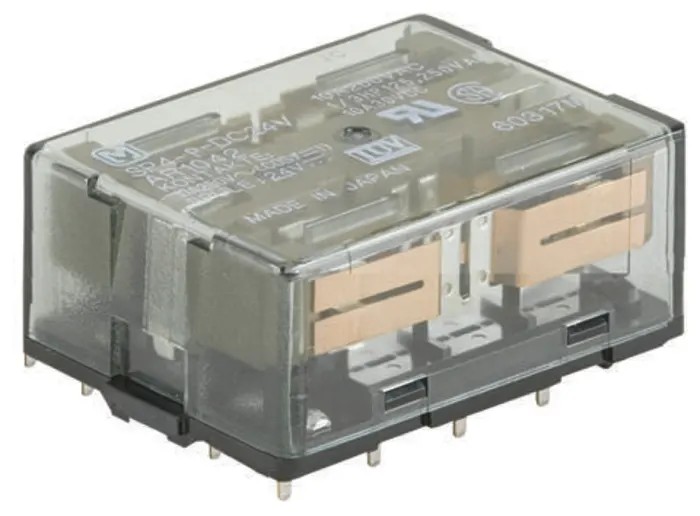

Panasonic PCB Non-Latching Power Relay, 12V DC Coil, 10A Switching Current, 4PDT SP4-P-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 22mm |
| Length | 51mm |
| Model | SP4-P-12V |
| Width | 25.6mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SP |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -50°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 480Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 48V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 300mW |
Key Features
- Equipped with a 12V DC coil voltage for efficient power usage.
- Features 4PDT contact configuration enabling multiple circuit control.
- Supports a switching current rated at 10A for high power applications.
- Designed for PCB mounting with solder terminal type for easy installation.
- Operates reliably within -50°C to 60°C temperature range.
- Constructed with silver alloy contacts providing low contact resistance of 30mΩ.
- Compact dimensions of 51mm length, 25.6mm width, and 22mm height for space-saving PCB integration.
- Coil power consumption is nominal 300mW with high vibration and shock resistance.
Product Description
Panasonic SP4-P-12V is a high-sensitivity PCB mount non-latching power relay equipped with a 12V DC coil and a 10A switching current capability. This 4PDT relay offers robust performance with silver alloy contacts and low contact resistance, ideal for various industrial and automation applications.
Designed for mounting on printed circuit boards, it features a solder terminal type for secure installation and compact dimensions (51mm x 25.6mm x 22mm), making it suitable for tight spaces within electrical equipment.
The relay operates effectively in environments with temperatures ranging from -50°C to 60°C, providing reliable switching power up to 3.75 kVA for AC circuits and up to 48V DC switching voltage for DC circuits. Its coil consumes a nominal 300mW and is engineered to withstand vibration and shock, ensuring long service life and endurance in demanding industrial conditions.
The silver alloy contact material and low 30mΩ contact resistance contribute to efficient conductivity and minimal power loss. This relay meets RoHS standards, supporting environmentally compliant electronics manufacturing and design.
Ideal for use in industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and other commercial applications that require reliable multi-pole switching.
Equipped with a 12V DC coil voltage for efficient power usage. Features 4PDT contact configuration enabling multiple circuit control. Supports a switching current rated at 10A for high power applications. Designed for PCB mounting with solder terminal type for easy installation.
Operates reliably within -50°C to 60°C temperature range. Constructed with silver alloy contacts providing low contact resistance of 30mΩ. Compact dimensions of 51mm length, 25.6mm width, and 22mm height for space-saving PCB integration.
Coil power consumption is nominal 300mW with high vibration and shock resistance. Meets RoHS standards ensuring compliance with environmental regulations. Manufactured in Japan assuring high-quality production standards.
Explore the range of Panasonic Power Relays and other reliable components available in the Electronics & Electricals category at EnvMart for your professional and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current rated at 10A, making it suitable for high power applications.
It operates with a 12V DC coil voltage, ensuring efficient power usage.

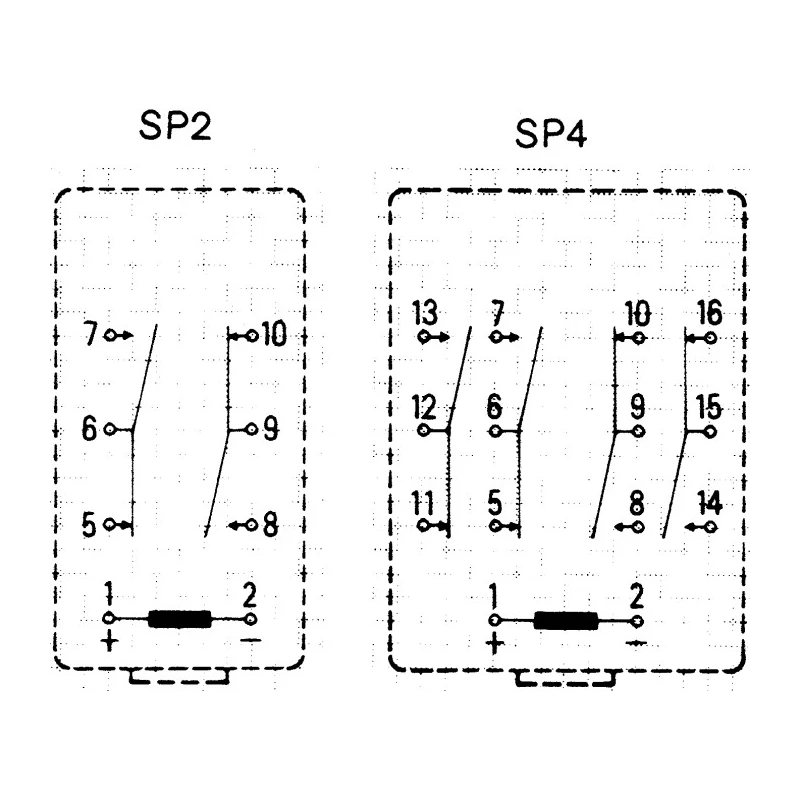

The relay features a 4PDT (four pole, double throw) contact configuration, allowing for multiple circuit control.
It operates reliably within a temperature range of -50°C to 60°C.
This unit is designed for PCB mounting and features a solder terminal type for secure installation.
The contacts are constructed from silver alloy, which provides low contact resistance of 30mΩ.
The relay has compact dimensions of 51mm in length, 25.6mm in width, and 22mm in height.
The coil power consumption is nominally 300mW, contributing to its efficient operation.
It can switch up to 250V AC for AC circuits and 48V DC for DC circuits.
Yes, it meets RoHS standards, ensuring compliance with environmental regulations.
This relay is manufactured in Japan, assuring high production standards.
It is ideal for use in industrial automation, electrical control panels, HVAC systems, and manufacturing equipment.
