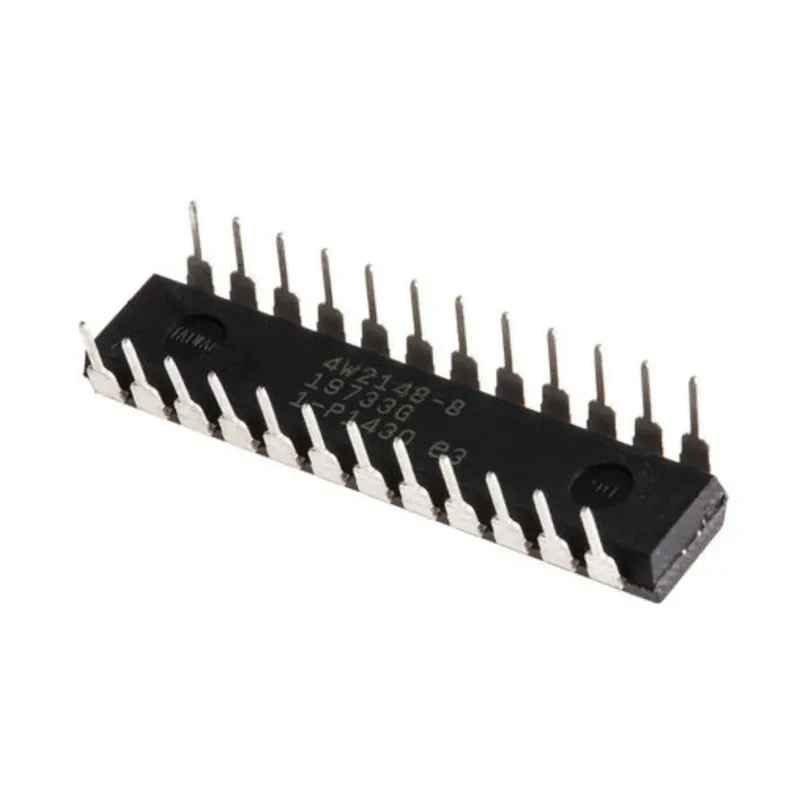

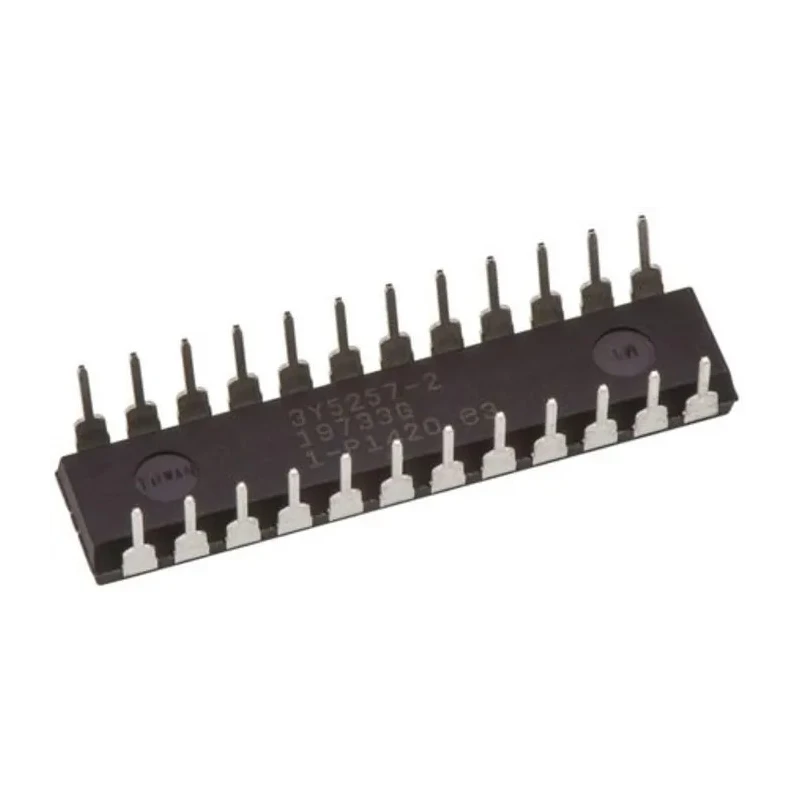

Microchip Simple Programmable Logic Device 350 Gates, 10 Macro Cells, 10 I/O, 50 MHz In System ATF22V10CQZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 32.13mm |
| Model | ATF22V10CQZ |
| Mount Type | Through Hole |
| Series | ATF22V10CQZ |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 24 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time | 20ns |
| Number of Gates | 350 |
| Number of Macro Cells | 10 |
| Number of User I/Os | 10 |
| Maximum Internal Frequency | 50MHz |
Key Features
- This device features 350 gates and 10 macro cells for versatile programmable logic applications.
- It supports up to 10 user inputs and outputs, providing flexible interfacing capabilities.
- The maximum internal frequency is 50 MHz, enabling fast operation speeds.
- Designed for through hole mounting with a PDIP package type having 24 pins.
- Supports in system programmability and re-programmability for efficient development cycles.
- Operates within supply voltages of 4.5V to 5V, suitable for standard industrial electronic systems.
- Wide operating temperature range from -40°C to 85°C for reliable use in varied environments.
- Maximum propagation delay time is 20 nanoseconds, ensuring quick signal response.
Product Description
Microchip ATF22V10CQZ is a simple programmable logic device designed to deliver high performance with low power consumption and outstanding reliability. It features 350 gates, 10 macro cells, and 10 user inputs/outputs, making it an excellent solution for various programmable logic applications in industrial, electronic, and embedded systems.
This device operates at a maximum internal frequency of 50 MHz and supports in system programmability and re-programmability, enabling designers to update logic functions efficiently during development.
It comes in a through hole PDIP package with 24 pins, facilitating easy mounting on printed circuit boards. The supply voltage range from 4.5V to 5V ensures compatibility with standard systems, while its extended operating temperature range from -40°C to 85°C makes it suitable for harsh industrial environments.
The maximum propagation delay time of 20 nanoseconds ensures rapid signal processing, contributing to high-speed circuit operation. The device adheres to RoHS standards, reflecting compliance with environmental safety regulations.
The compact mechanical dimensions of Length 32.13 mm and Height 4.95 mm support space-efficient designs in electronics manufacturing. This programmable logic device is ideal for electronic design automation, embedded control systems, and industrial automation.
Its flexibility and performance enable improved production efficiency and system reliability. Compliant with industry standards, it is suitable for implementation in complex logic circuits requiring re-programmability. Explore the extensive Microchip range of programmable logic devices and semiconductors at EnvMart for reliable industrial and commercial applications.
Explore more products in our Programmable Logic ICs category.
