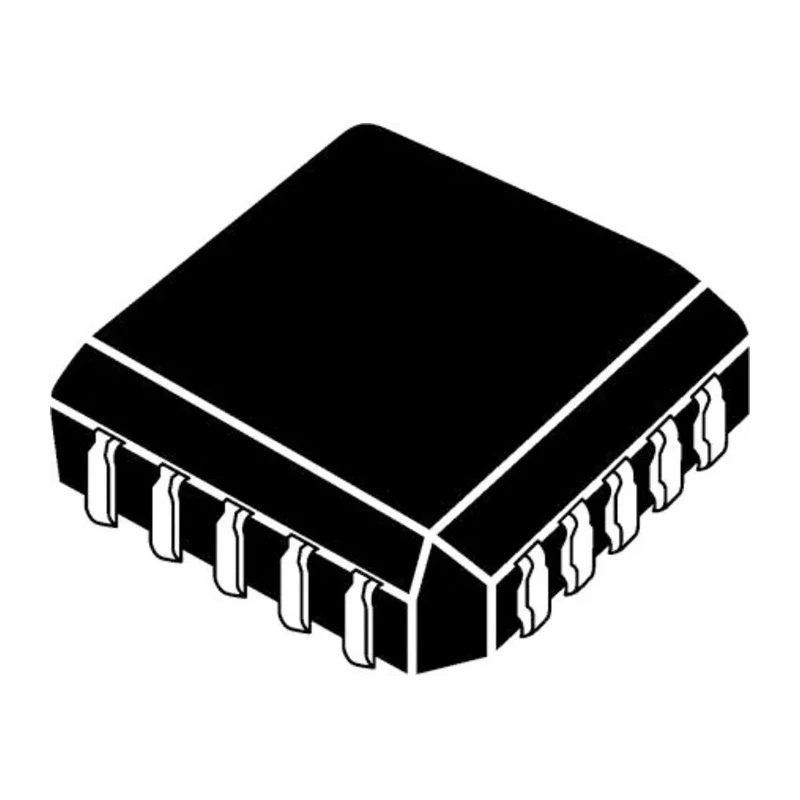

Microchip Simple Programmable Logic Device 150 Gates, 8 Macro Cells, 8 I/O, 62 MHz In System ATF16V8B-15JU

Microchip ATF16V8B-15JU simple programmable logic device (SPLD) features 150 gates and integrates 8 macro cells with 8 user input/output lines, delivering a maximum internal frequency of 62 MHz. The device supports in-system programmability and re-programmability, making it suitable for dynamic electronic designs requiring flexible logic control.

This SPLD is designed for surface mount technology with a PLCC package and 20 pins, facilitating compact and efficient PCB layouts. The operating supply voltage ranges from 4.5V to 5V, ensuring compatibility with standard digital circuits.

Operating temperature ranges from -40°C to 85°C with a maximum propagation delay time of 15 nanoseconds, providing reliable operation in varying industrial and commercial environments. The component complies with RoHS standards, reflecting Microchip's commitment to environmental safety and product quality.

Its compact form factor, measuring 4.06mm in height and 9.04mm in length, makes it ideal for space-constrained applications in electronic devices. Manufactured in the Philippines, the device undergoes stringent quality assurance processes for dependable performance.

This SPLD is widely utilized in industrial automation, embedded systems, consumer electronics, and other electronic design applications where precise programmable logic functions are essential. Its robust architecture supports long-term durability and low power consumption, making it a preferred choice for designers.

This SPLD supports re-programmability for flexible design solutions. Equipped with a low power consumption and high reliability architecture. Compatible with surface mount type PLCC package with 20 pins. Operates within a supply voltage range of 4.5V to 5V for stable performance.

Designed to function between -40°C to 85°C with a maximum propagation delay of 15 nanoseconds. The device complies with RoHS standards, assuring environmental safety. Compact dimensions with a height of 4.06mm and length of 9.04mm optimize board space.

Manufactured in the Philippines following rigorous quality controls. Explore our full range of semiconductor components at EnvMart for advanced Programmable Logic ICs suitable for your next electronic project.
