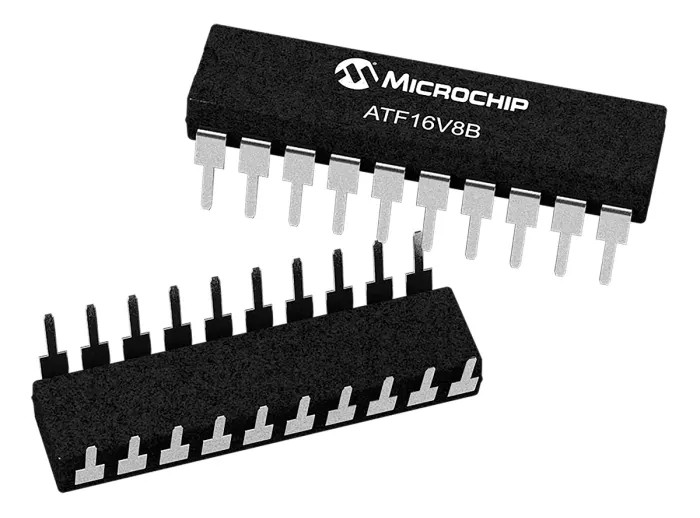

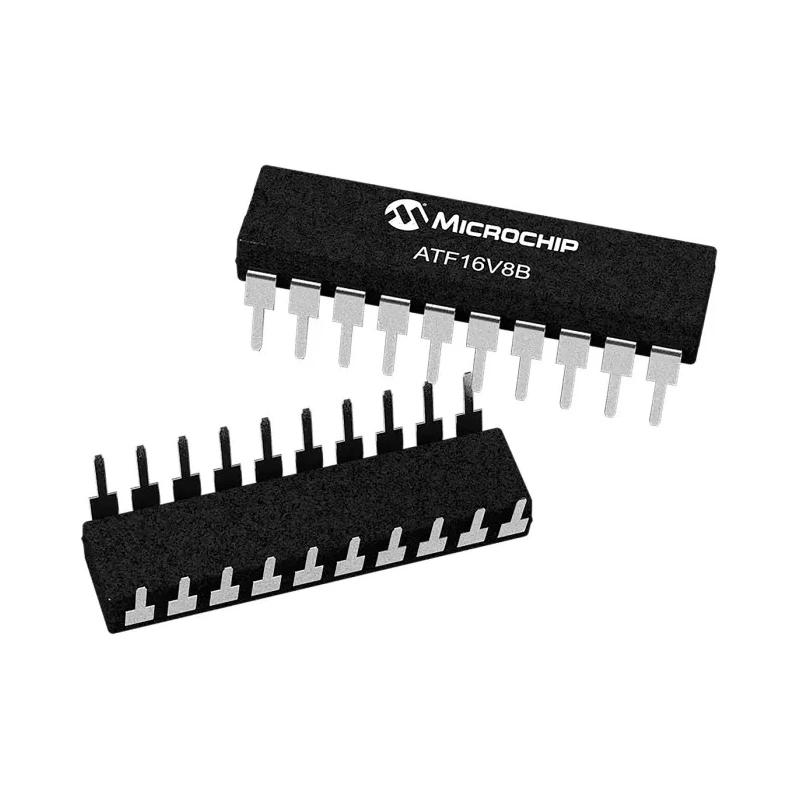

Microchip Simple Programmable Logic Device 150 Gates, 8 Macro Cells, 8 I/O, 62 MHz In System Programmability ATF16V8B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 26.92mm |
| Model | ATF16V8B |
| Mount Type | Through Hole |
| Series | ATF16V8B |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time | 15ns |
| Number of Gates | 150 |
| Number of Macro Cells | 8 |
| Number of User I/Os | 8 |
| Maximum Internal Frequency | 62MHz |
| Microchip ATF16V8B-15PU, SPLD Simple Programmable Logic DeviceBrand | Microchip |
Key Features
- This device supports in-system programmability for flexible circuit design adjustments.
- It features re-programmability support, allowing multiple updates during development.
- Designed in a PDIP through-hole package with 20 pins for easy prototyping and replacement.
- Operation voltage ranges from 4.5V to 5V, suitable for various electronic applications.
- Has a maximum propagation delay time of 15ns ensuring fast signal processing.
- Operates reliably between -40°C and 85°C for robust industrial performance.
- Complies with RoHS standards ensuring environmentally compliant manufacturing.
- The device measures 26.92 mm in length and 4.95 mm in height for compact integration.
Product Description
Microchip ATF16V8B is a high-performance simple programmable logic device designed with 150 gates, 8 macro cells, and 8 user I/Os, operating at a maximum internal frequency of 62 MHz. It offers in-system programmability and re-programmability support, allowing developers to adjust and customize circuitry after installation, making it ideal for iterative design and prototyping.
The device is mounted through-hole in a PDIP package with 20 pins, facilitating straightforward insertion into standard circuit boards. It supports operating voltages between 4.5V and 5V and has a maximum propagation delay of 15 nanoseconds, enabling efficient and fast logic processing suitable for a variety of electronic components and semiconductor systems.
With operational temperature ranges from -40°C to 85°C, the ATF16V8B ensures reliable function in diverse industrial and commercial environments. Its compact physical dimensions - 26.92 mm in length and 4.95 mm in height - support space-saving PCB layouts.
This device conforms to RoHS standards, demonstrating compliance with environmental and safety regulations. The programmable logic device is widely used in industrial automation, telecommunications, embedded system design, and prototype development, offering versatile functionality for electronic engineers and system integrators.
This device supports in-system programmability for flexible circuit design adjustments. It features re-programmability support, allowing multiple updates during development. Designed in a PDIP through-hole package with 20 pins for easy prototyping and replacement.
Operation voltage ranges from 4.5V to 5V, suitable for various electronic applications. Has a maximum propagation delay time of 15ns ensuring fast signal processing. Operates reliably between -40°C and 85°C for robust industrial performance.
Complies with RoHS standards ensuring environmentally compliant manufacturing. The device measures 26.92 mm in length and 4.95 mm in height for compact integration. Explore the category for Programmable Logic ICs at EnvMart for more electronic components and solutions from Microchip and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum internal frequency of this model is 62 MHz, allowing for efficient logic processing.
It operates within a voltage range of 4.5V to 5V, making it suitable for various electronic applications.
The maximum propagation delay time is 15 nanoseconds, ensuring fast signal processing capabilities.
This model measures 26.92 mm in length and 4.95 mm in height, supporting compact integration into circuit designs.
The ATF16V8B features 150 gates and 8 macro cells, providing ample logic capacity for various applications.
It operates reliably between -40°C and 85°C, making it suitable for diverse industrial environments.
This device is housed in a PDIP (Plastic Dual In-line Package) with 20 pins, facilitating easy prototyping and replacement.
Yes, it supports in-system programmability, allowing for flexible circuit design adjustments after installation.
Yes, it complies with RoHS standards, ensuring environmentally compliant manufacturing practices.
The ATF16V8B has a pin count of 20, which is standard for its PDIP package type.
This model is widely used in industrial automation, telecommunications, embedded system design, and prototype development.
The country of origin for this device is India.
