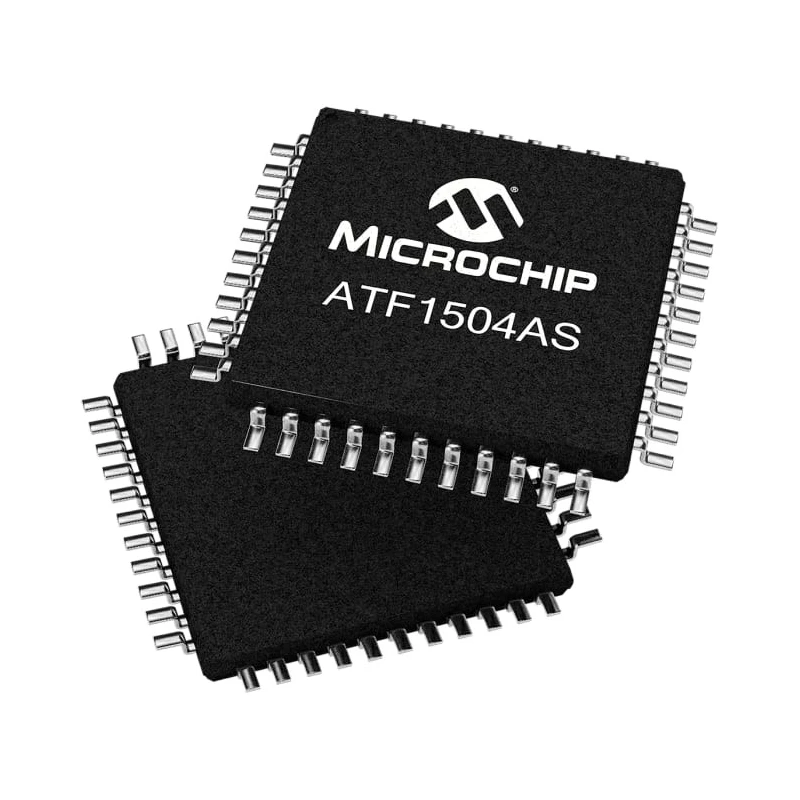

Microchip Complex Programmable Logic Device EEPROM 64 Cells, 68 I/O, 10 ns Propagation Delay, 3 Logic ATF1504AS-10AU44
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10.1mm |
| Model | ATF1504AS-10AU44 |
| Mount Type | Surface |
| Memory type | EEPROM |
| Series | ATF15xx |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 44 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3V |
| Maximum Propagation Delay Time | 10ns |
| Maximum Operating Frequency | 125MHz |
| Number of Macro Cells | 64 |
| Number of User I/Os | 68 |
| Number of Logic Blocks/Elements | 3 |
Key Features
- Comes in a surface mount TQFP package with 44 pins.
- Supports in-system programmability for flexible design modifications.
- Operates between supply voltages of 3V to 5V.
- Designed to function within a temperature range of -40°C to 85°C.
- Re-programmability support enhances product versatility.
- Individual output enable control is provided.
- Maximum operating frequency is 125 MHz for high-speed applications.
- Measures 10.1 mm in length and 1.05 mm in height for compact integration.
Product Description
Microchip ATF1504AS-10AU44 is a complex programmable logic device (CPLD) designed with a 64-cell EEPROM architecture, 68 user I/O pins, and 3 logic blocks capable of fast processing with a maximum propagation delay of 10 nanoseconds. This device comes in a compact 44-pin TQFP surface mount package, making it ideal for dense circuit board layouts.
It operates within a supply voltage range of 3V to 5V and a wide operating temperature range from -40°C up to 85°C, ensuring reliable performance in diverse environmental conditions. The in-system programmability feature allows engineers to reprogram the device easily during development and testing phases, promoting rapid prototyping and design iteration.
The device supports individual output enable controls, allowing fine-grained control over output signals. With a maximum operating frequency of 125 MHz, it is suitable for high-speed digital logic applications found in industrial, communication, and consumer electronics sectors.
Measuring just 10.1 mm in length and 1.05 mm in height, this CPLD offers a compact footprint suitable for space-constrained printed circuit board designs. Manufactured in Taiwan, this component meets stringent quality standards to ensure durability and consistent performance.
Microchip's ATF1504AS-10AU44 is suitable for applications involving complex logic functions, digital signal processing, and embedded system designs requiring configurable logic blocks and user-defined I/O configurations.
Comes in a surface mount TQFP package with 44 pins. Supports in-system programmability for flexible design modifications. Operates between supply voltages of 3V to 5V. Designed to function within a temperature range of -40°C to 85°C.
Re-programmability support enhances product versatility. Individual output enable control is provided. Maximum operating frequency is 125 MHz for high-speed applications. Measures 10.1 mm in length and 1.05 mm in height for compact integration.
Manufactured in Taiwan, Province Of China. Explore this product and related programmable logic devices in the Semiconductors category at EnvMart for your industrial and electronic manufacturing needs.
Explore more products in our Programmable Logic ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this model is 125 MHz, making it suitable for high-speed digital logic applications.
It operates within a supply voltage range of 3V to 5V.
This model is designed to function within a temperature range of -40°C to 85°C.
The ATF1504AS-10AU44 features 68 user I/O pins.
It comes in a surface mount TQFP package with 44 pins.
The maximum propagation delay time is 10 nanoseconds.
This CPLD contains 3 logic blocks.
The device measures 10.1 mm in length and 1.05 mm in height.
This model uses EEPROM memory type.
The ATF1504AS-10AU44 has 64 macro cells.
Yes, it supports in-system programmability for flexible design modifications.
This component is manufactured in Taiwan.
