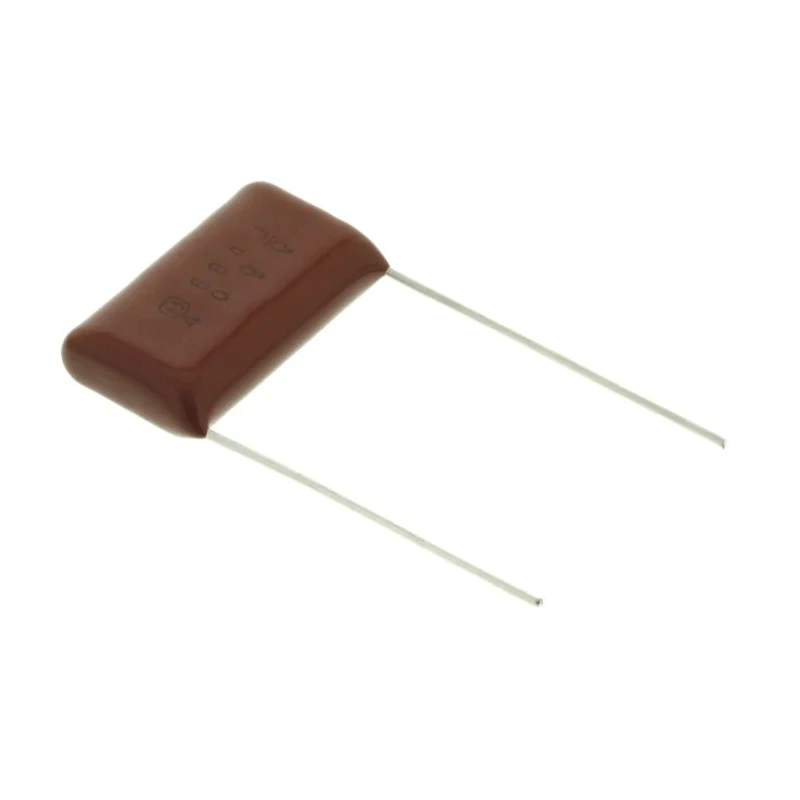

Panasonic ECQE(F) Film Capacitor 680 nF 400V AC 400V DC Through Hole Mount ECQE4684JF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 16.5mm |
| Length | 26mm |
| Model | ECQE4684JF |
| Width | 7mm |
| Mount Type | Through Hole |
| Series | ECQE(F) |
| Maximum Operating Temperature | 105°C |
| Capacitance | 680nF |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 400V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed using metallised polyester film for enhanced electrical characteristics.
- Features flame retardant epoxy resin coating for safety under high temperature.
- Capacitor is self-healing and non-inductive, ensuring reliable performance.
- Lead pitch of 22.5 mm and lead diameter of 0.8 mm for compatibility with standard PCB designs.
- Maximum operating temperature up to 105°C suitable for demanding applications.
- Complies with automotive standard AEC-Q200 and safety standards CSA E60384-14, EN 60384-14, UL 60384-14.
- Recommended for general purpose electronic applications requiring stable capacitance.
Product Description
Panasonic ECQE4684JF is a high-quality film capacitor designed with metallised polyester film construction and flame retardant epoxy resin coating. Rated for 680 nF capacitance, this capacitor supports a rated voltage of 400V AC and 400V DC, making it suitable for a variety of electronic circuits requiring reliable capacitance performance.
Its through hole mounting type with a 22.5 mm lead pitch and 0.8 mm lead diameter ensures secure and efficient soldering on printed circuit boards. The capacitor can operate safely at temperatures up to 105°C, meeting the automotive AEC-Q200 standard and widely recognized certifications including CSA and UL standards for capacitors.
With compact dimensions (26 mm length, 16.5 mm height, and 7 mm width), this capacitor is ideal for space-constrained environments. Panasonic ECQE(F) capacitors are self-healing and non-inductive, which enhance stability and longevity in industrial, automotive, and general electrical applications.
Constructed of metallised polyester film for excellent electrical stability. Encased in flame retardant epoxy resin to ensure safety and compliance. Self-healing design improves reliability in fault conditions. Lead pitch and diameter tailored for secure PCB mounting.
High operating temperature rating for durability in harsh environments. Certified to meet automotive and international safety standards. Compact physical size facilitates installation in tight spaces. Recommended for use in a wide range of electronic and industrial applications.
Panasonic Film Capacitors are trusted in electronics manufacturing due to their reliability and consistent performance. This model, ECQE4684JF, integrates well for both development and production PCB assembly tasks in industrial, automotive, consumer electronics, and related sectors.
Explore more Panasonic electronics components and capacitors for advanced electrical design and manufacturing through EnvMart’s catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is rated at 680 nF.
It is rated for 400V AC and 400V DC.
The maximum operating temperature is up to 105°C.
The capacitor has a length of 26 mm, a height of 16.5 mm, and a width of 7 mm.
It features a lead pitch of 22.5 mm and a lead diameter of 0.8 mm.
This model is designed for through hole mounting.
Yes, it complies with automotive standard AEC-Q200 and safety standards CSA E60384-14, EN 60384-14, and UL 60384-14.
It is constructed using metallised polyester film and encased in a flame retardant epoxy resin.
It is recommended for general purpose electronic applications requiring stable capacitance.
This capacitor is self-healing and non-inductive, which enhances its reliability and performance.
The country of origin for this capacitor is India.
This model belongs to the ECQE(F) series.
