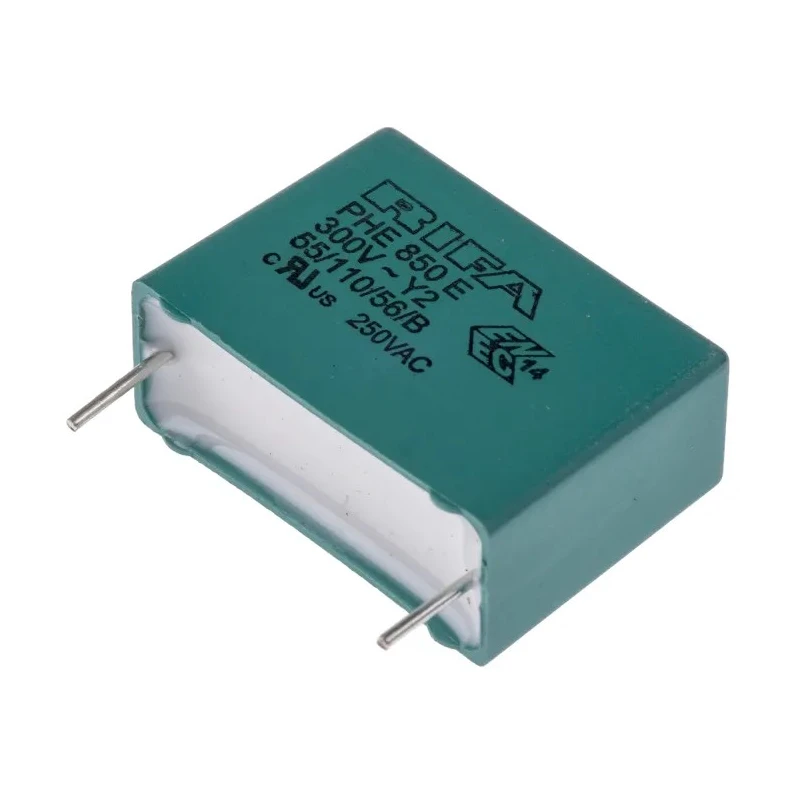

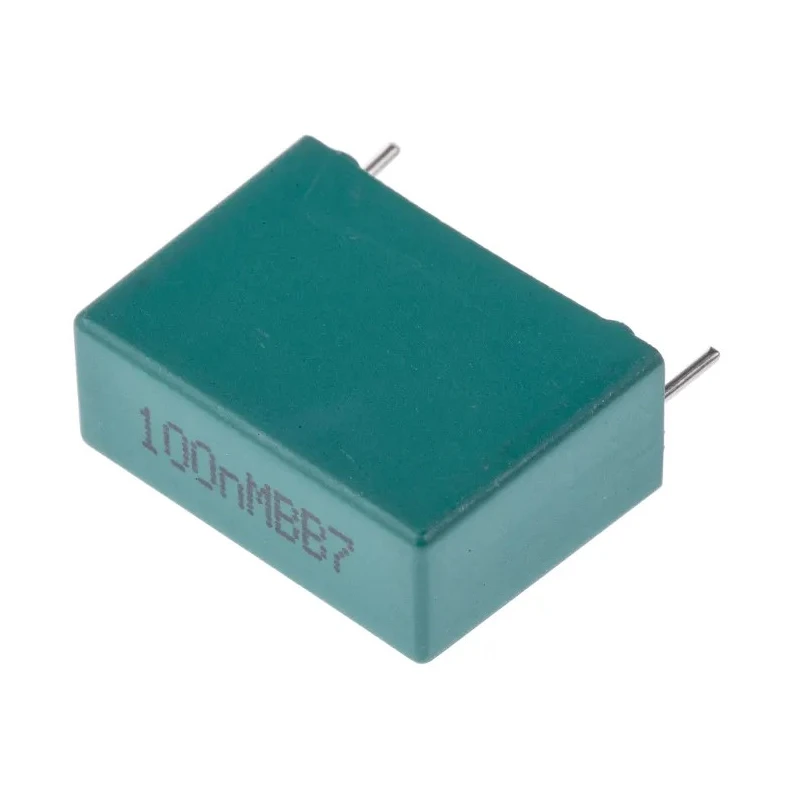

KEMET Film Capacitor Y2 100 nF ±20% 1.25 kV DC 300 V AC Through Hole Radial Terminal PHE850

Free Delivery in India | Lowest Global Shipping Charges

KEMET Film Capacitor Y2 100 nF ±20% 1.25 kV DC 300 V AC Through Hole Radial Terminal PHE850

Name: KEMET Film Capacitor Y2 100 nF ±20% 1.25 kV DC 300 V AC Through Hole Radial Terminal PHE850
Brand: KEMET
SKU: 199108
Price: 0.97 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	Indonesia
Brand	KEMET
Height	19mm
Length	26mm
Model	PHE850
Width	10.5mm
Mount Type	Through Hole
Series	PHE850
Maximum Operating Temperature	110°C
Tolerance	±20 %
Capacitance	100nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.3%
Lead Length	6mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	1.25kV dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Suppression Class	Y2

Key Features

Constructed with metallised polypropylene film providing reliable EMI suppression.
Encapsulated in self-extinguishing material complying with UL 94V-0 standards.
Designed specifically for Y2 safety-line interference suppression applications.
Compact dimensions with 26 mm length, 19 mm height, and 10.5 mm width.
Radial terminal type with 6 mm lead length and 22.5 mm lead pitch.
Operating temperature range from -55°C to 110°C for versatile environmental suitability.
Capacitor pins have 0.8 mm diameter for secure through-hole assembly.
RoHS compliant with low dissipation factor of 0.3%.

Product Description

KEMET PHE850 Film Capacitor is a high-quality component featuring a 100 nF capacitance with ±20% tolerance, suitable for EMI suppression in Y2 safety applications. This capacitor is rated for 1.25 kV DC and 300 V AC operation and designed with through-hole radial terminals for reliable PCB mounting.

Constructed using winding metallised polypropylene film and encapsulated in self-extinguishing UL 94V-0 compliant material, it ensures safety and durability in electrical circuits. The compact low profile design with dimensions of 26 mm length, 19 mm height, and 10.5 mm width allows easy integration where space constraints apply.

The leads have a pitch of 22.5 mm with 6 mm length and 0.8 mm diameter, providing secure mechanical and electrical connections. The capacitor operates efficiently over a broad temperature range from -55°C to 110°C ideal for industrial, commercial, and residential electronic assemblies.

Capable of suppressing electrical noise and interference, the KEMET PHE850 series capacitors are widely used in power supplies, appliances, and automotive electronics requiring compliance with ENEC, UL, and CSA approvals.

Metallised polypropylene film construction ensures durability and stability. Self-extinguishing encapsulation meets stringent safety requirements. Y2 classification for line-to-earth interference suppression. Compact size supports versatile mounting options in electronic circuits.

High voltage ratings for demanding industrial and consumer electronics. RoHS compliant and environmentally safe component. Reliable operation down to -55°C and up to 110°C ensures wide deployment possibilities. Radial terminal with through-hole mounting for robust PCB soldering.

Dissipation factor of 0.3% indicates low energy loss during operation. Manufactured in Indonesia maintaining international quality standards.

Ideal for industrial, manufacturing, automotive, and household electrical equipment requiring reliable EMI suppression capacitors. Compatible with EMI filters and line noise reduction circuitry. Explore more quality electronic components from KEMET at EnvMart for diverse industrial and commercial applications.
