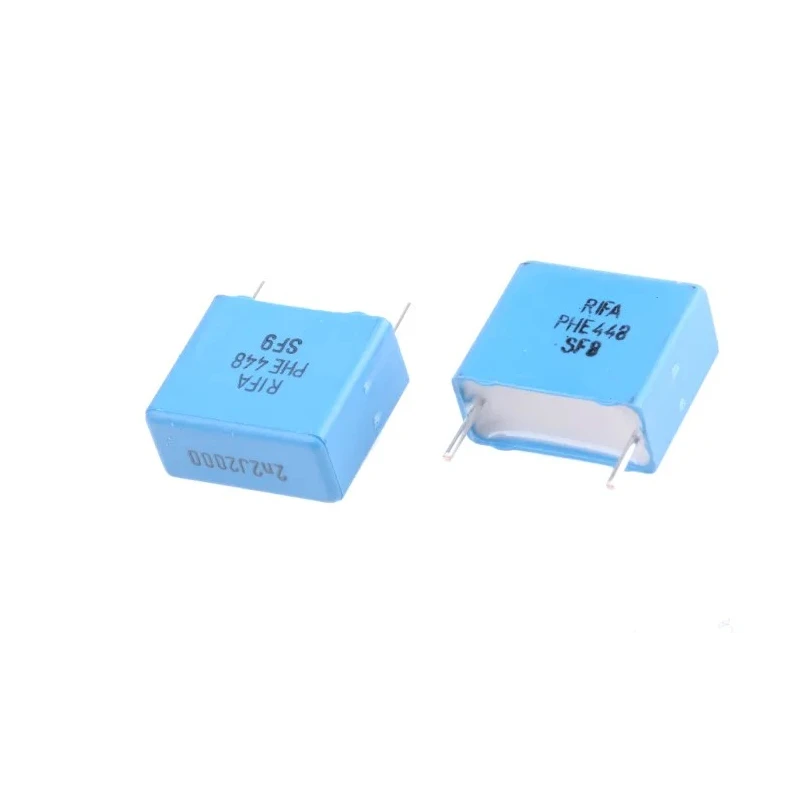

KEMET PHE448 Film Capacitor 2.2 nF ±5% 2 kV DC 700 V AC Through Hole Radial Lead

KEMET PHE448 film capacitor model PHE448SB4220JR06 is a high voltage polypropylene Film Capacitor designed to withstand DC voltage of 2 kV and AC voltage up to 700 V. With a capacitance of 2.2 nF and tolerance of ±5%, it caters to precision electronic circuits requiring stability and reliability under demanding conditions.

The capacitor features a radial through-hole mount type with 15 mm lead pitch and 6 mm lead length, making it compatible with standard PCB hole patterns. Encapsulation in a UL94V-0 self-extinguishing material provides excellent flame retardance and mechanical protection.

Operating temperature range extends from -55°C to 105°C, ensuring functionality in industrial, automotive pulse, and snubber circuit applications. Its dissipation factor as low as 0.001% guarantees minimal losses even in high frequency environments.

The compact size measures 18 mm in length, 8.5 mm in width, and 16 mm in height with a lead diameter of 0.8 mm, optimizing PCB real estate while maintaining robust electrical performance. The product complies with RoHS environmental standards and is manufactured in Finland to high quality benchmarks.

This capacitor is supplied in tape and reel packaging, facilitating efficient handling and placement in automated assembly processes. It is particularly suited for applications in industrial electronics, automotive circuits, power supplies, and high-frequency filtering.

The capacitor uses polypropylene film technology for excellent pulse handling. Rated for operation between -55°C and 105°C ensuring reliable performance in harsh environments. Through-hole radial lead mount with 15 mm lead pitch and 6 mm lead length facilitates secure PCB mounting.

Encapsulated in a UL94V-0 flame-retardant material for safety and durability. Low dissipation factor of 0.001% minimizes energy losses in high frequency circuits. Compliance with RoHS ensures environmental safety and usage in modern electronic assemblies.

Compact dimensions of 18 mm length, 8.5 mm width, and 16 mm height optimize PCB space utilization. Suitable for pulse and snubber applications requiring stable high-voltage performance. Manufactured in Finland with consistent quality standards.

Supplied in tape and reel packaging ideal for automated assembly processes. Explore the extensive range of capacitors available in the Electronics Components category on EnvMart for all industrial and commercial electrical needs.
