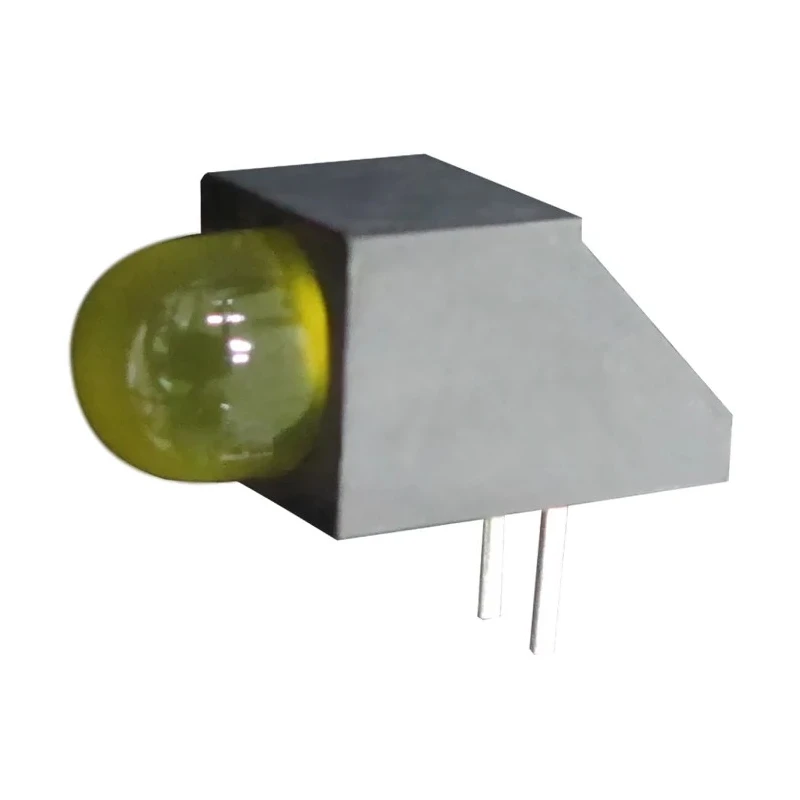

Kingbright Yellow Right Angle PCB LED Indicator 3 mm (T-1), 1 LED 2.5 V L-1503CB/1LYD

Free Delivery in India | Lowest Global Shipping Charges

Kingbright Yellow Right Angle PCB LED Indicator 3 mm (T-1), 1 LED 2.5 V L-1503CB/1LYD

Name: Kingbright Yellow Right Angle PCB LED Indicator 3 mm (T-1), 1 LED 2.5 V L-1503CB/1LYD
Brand: Kingbright
SKU: 199063
Price: 0.64 USD
Availability: InStock



Category PCB LED Indicator Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Length	13.2mm
Model	L-1503CB/1LYD
Mount Type	Through Hole
Number Of Leds	1
Maximum forward current	30mA
Viewing angle	60 °
Sub Type	Single Colour
Power Dissipation	75mW
Lens Colour	Yellow
Luminous Intensity	2mcd
Standards/Approvals	RoHS
LED Colour	Yellow
Number of Pins	2
Lens Finish	Diffused
Minimum Supply Voltage	2.5V
LED Material	GaAsP, GaP
Multicolour/Single Colour	Single Colour
LED Orientation	Right Angle
LED Size	3 mm (T-1)

Key Features

The LED indicator is designed as a right angle through-hole mount for PCB applications.
It has a luminous intensity of 2 millicandela (mcd) with a 60 degree viewing angle.
The device uses GaAsP and GaP materials to achieve reliable single colour yellow emission.
Power dissipation is rated at 75 milliwatts to ensure safe operation.
The indicator comes with a diffused yellow lens finish for enhanced visibility and contrast.
This LED indicator complies with RoHS standards and is manufactured in China.
Its compact length of 13.2 mm makes it suitable for tight PCB layouts.

Product Description

Kingbright L-1503CB/1LYD is a Yellow Right Angle PCB LED Indicator with a 3 mm (T-1) LED size, designed specifically for PCB mounting through hole applications. Operating at a minimum supply voltage of 2.5 V, this single colour LED delivers a luminance intensity of 2 millicandela (mcd) with a 60° viewing angle, ensuring clear indication on electronic boards.

The LED is constructed using Gallium Arsenide Phosphide (GaAsP) and Gallium Phosphide (GaP) semiconductor materials, guaranteeing strong and reliable yellow light output. The diffused lens finish enhances the visual contrast and aids in better visibility of the indicator under various lighting conditions.

Its right angle orientation and two-pin through-hole mount type simplify integration into various PCB designs while providing mechanical stability. Rated for a maximum forward current of 30 mA and a power dissipation of 75 mW, it supports safe and efficient operation in electronic circuits.

This product is RoHS compliant, meeting environmental and safety standards, and is made in China. The LED indicator is designed as a right angle through-hole mount for PCB applications. It has a luminous intensity of 2 millicandela (mcd) with a 60 degree viewing angle.

The device uses GaAsP and GaP materials to achieve reliable single colour yellow emission. Power dissipation is rated at 75 milliwatts to ensure safe operation. The indicator comes with a diffused yellow lens finish for enhanced visibility and contrast.

This LED indicator complies with RoHS standards and is manufactured in China. Its compact length of 13.2 mm makes it suitable for tight PCB layouts.

This Kingbright LED indicator is ideal for industrial, electronic assembly, instrumentation, and various other electronics applications requiring clear and reliable LED status indication on PCBs.
