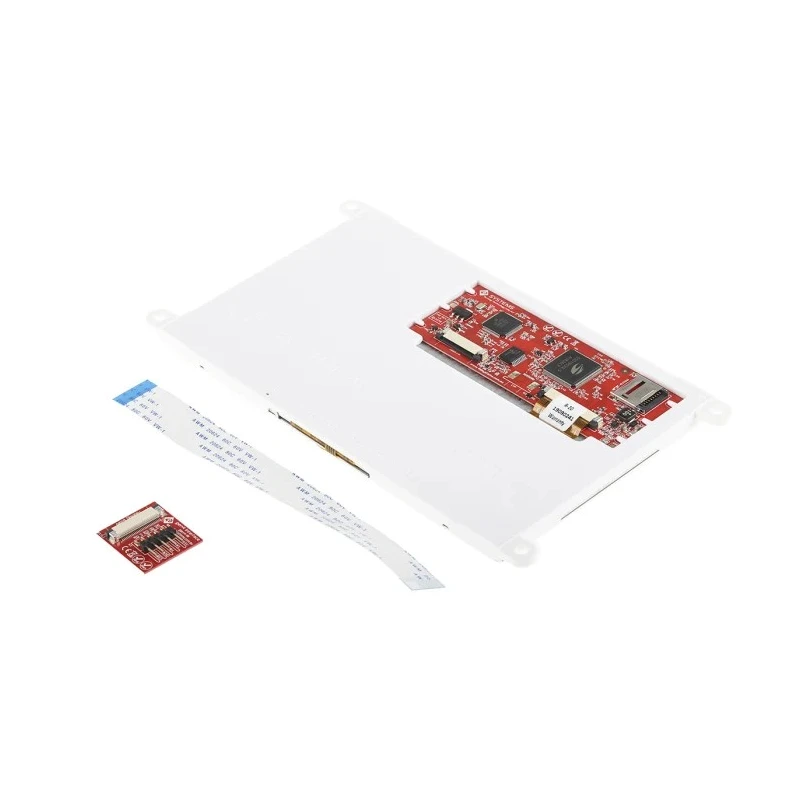

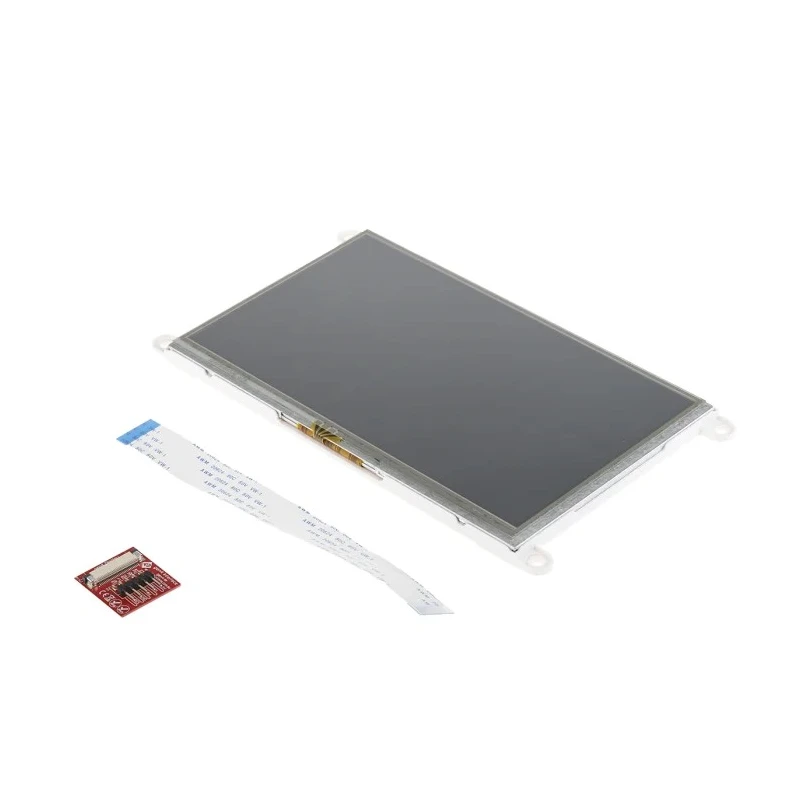

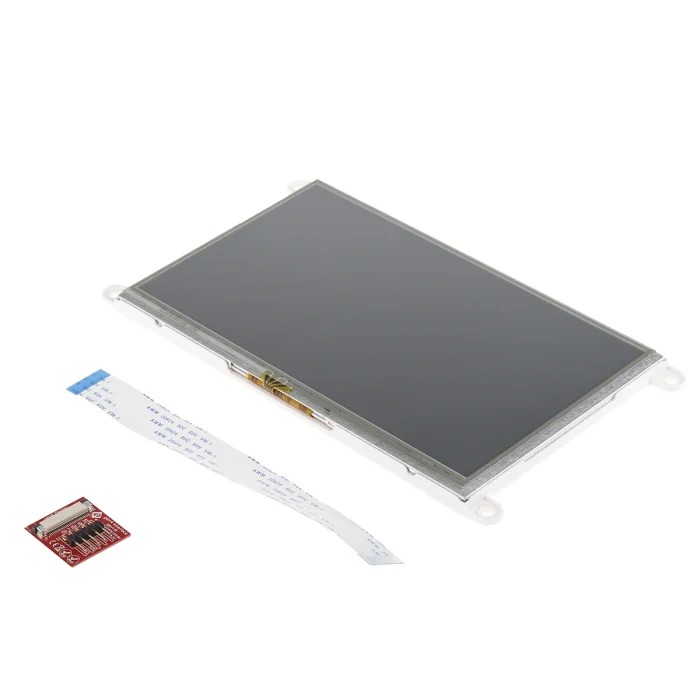

4D Systems LCD Colour Display Touch Screen 7 in 800 x 480 pixel Serial Interface gen4-uLCD-70DT
Specifications
| Country of Origin | Australia |
|---|---|
| Display Type | LCD |
| Brand | 4D Systems |
| Current | 820mA |
| Height | 8.3mm |
| Model | gen4-uLCD-70DT |
| Depth | 153.84mm |
| Width | 187mm |
| Series | gen4 |
| Maximum Operating Temperature | 60°C |
| Brightness | 400cd/m² |
| Minimum Operating Temperature | -10°C |
| Interface Type | Serial |
| Screen Resolution | 800 x 480 pixel |
| Standards/Approvals | CE |
| Touch Screen Type | Resistive |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4V |
| Viewing Area Dimensions | 86 x 154 mm |
| Backlight Type | LED |
| 500 | 1 |
| Diagonal Display Size | 7in |
| Contrast Ratio | 500:1 |
| Contrast Ratio 500 | 1 |
| 4D Systems uLCD-70DT LCD Colour Display Touch Screen, 7 in, 800 x 480 pixelBrand | 4D Systems |
Key Features
- The display size is 7 inches diagonally with 800 x 480 pixel resolution.
- Equipped with a 4-wire resistive touch screen for interactive applications.
- Features a bright LED backlight with brightness of 400 cd/m² and a contrast ratio of 500:1.
- Operates at a voltage range of 4V to 5.5V with current consumption of 820mA.
- Compact module dimensions of 187mm width, 153.84mm depth, and 8.3mm height.
- Supports various GPIOs, SPI and I2C channels for flexible interfacing.
- Includes a micro-SD card connector for multimedia storage and data logging.
- Operating temperature range from -10°C to 60°C suitable for diverse environments.
Product Description
4D Systems gen4-uLCD-70DT LCD Colour Display is a high-quality, compact 7 inch display module offering a resolution of 800 x 480 pixels with a 4-wire resistive touch screen interface. Designed for embedded system applications, it facilitates human-machine interaction through its precise touch capabilities and easy integration.

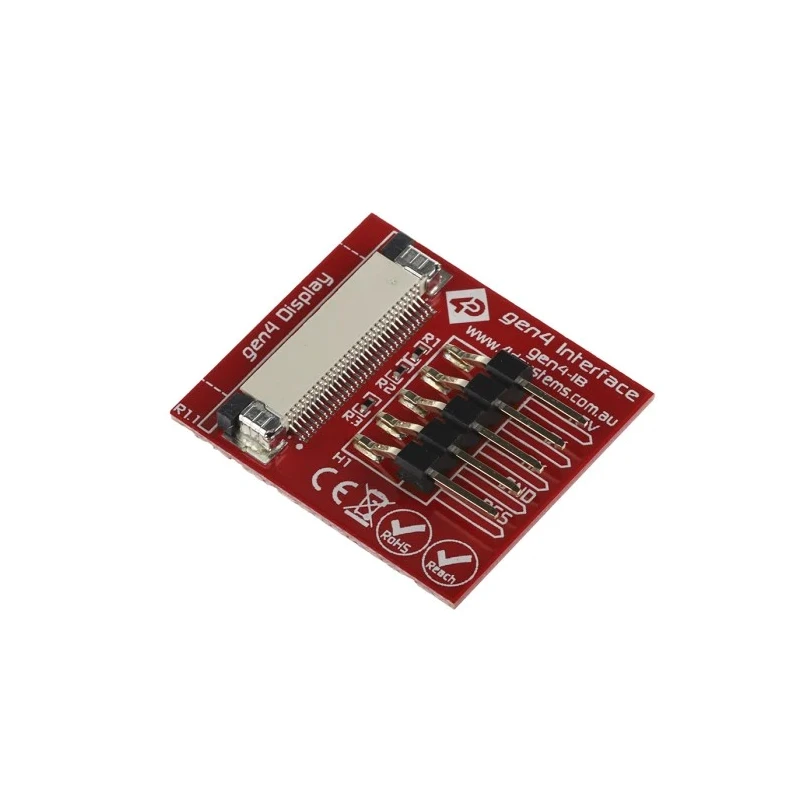

The module incorporates a bright LED backlight offering 400 cd/m² brightness and a 500:1 contrast ratio to deliver vibrant and clear visuals. The 30-pin ZIF socket connection allows for hassle-free interfacing with various microcontrollers and motherboards, supporting multiple communication protocols including SPI and I2C channels.

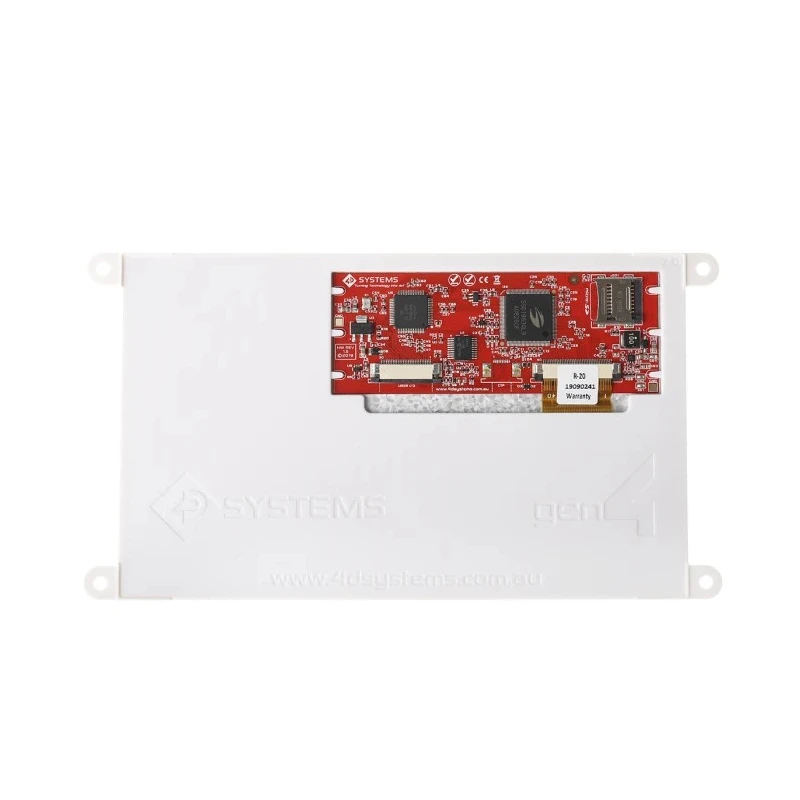

Powered by the 4D Systems Diablo16 embedded controller, this display supports built-in graphics, text, image, and animation functionality. It offers memory banks for user applications and configurable GPIO pins including PWM outputs and sensor counters, enhancing its versatility in industrial, laboratory, and commercial applications.
The compact form factor with dimensions 187mm by 153.84mm and slim 8.3mm profile makes it suitable for space-constrained designs. The integrated micro-SD card slot provides options for multimedia storage and data logging. Environmental durability is ensured with operating temperatures from -10°C to 60°C, making it reliable in various industrial and commercial settings.
The display offers true-to-life RGB 65K colours and resistive touch sensing. It supports up to 16 GPIO pins with multiple configurable functions for automation and control. The module includes CE certification, meeting European standards for safety and performance.
Operating voltage between 4.0V and 5.5V with a current draw of 820mA. Its robust feature set makes it ideal for industrial, laboratory, manufacturing, and embedded system display solutions.
Choose 4D Systems gen4-uLCD-70DT for reliable, versatile LCD colour display applications requiring touch interface and multimedia capabilities. Explore more industrial-grade electronic components and display modules in the Electronics & Electricals category at EnvMart.
Explore more products in our LCD Colour Displays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resolution of this display is 800 x 480 pixels.
It operates within a voltage range of 4.0V to 5.5V.
The dimensions are 187mm in width, 153.84mm in depth, and 8.3mm in height.
It features a 4-wire resistive touch screen.
The display has a brightness level of 400 cd/m².
The contrast ratio is 500:1.
It supports various GPIOs, SPI, and I2C channels for flexible interfacing.
The operating temperature range is from -10°C to 60°C.
Yes, it includes a micro-SD card connector for multimedia storage and data logging.
The current consumption is 820mA.
This display has CE certification, meeting European standards for safety and performance.
The display uses an LED backlight.
