Vishay Uni-Directional 1-Element TVS Diode, 600 W Peak Pulse Power, 2-Pin DO-214 SMBJ26A-E3/52

Free Delivery in India | Lowest Global Shipping Charges

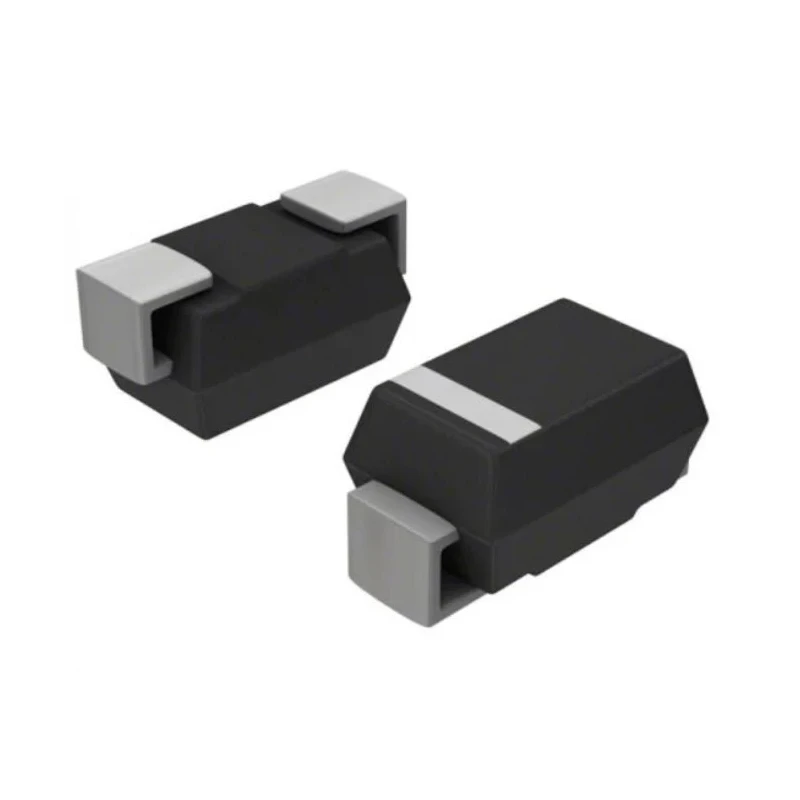

Vishay Uni-Directional 1-Element TVS Diode, 600 W Peak Pulse Power, 2-Pin DO-214 SMBJ26A-E3/52

Name: Vishay Uni-Directional 1-Element TVS Diode, 600 W Peak Pulse Power, 2-Pin DO-214 SMBJ26A-E3/52
Brand: Vishay
SKU: 198263
Price: 0.2 USD
Availability: InStock



Category TVS Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay

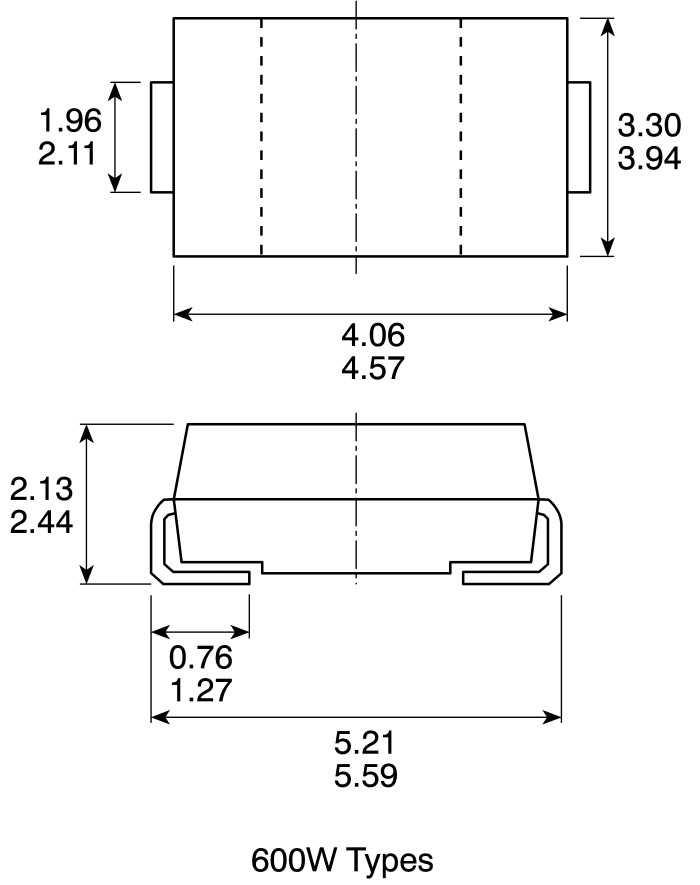

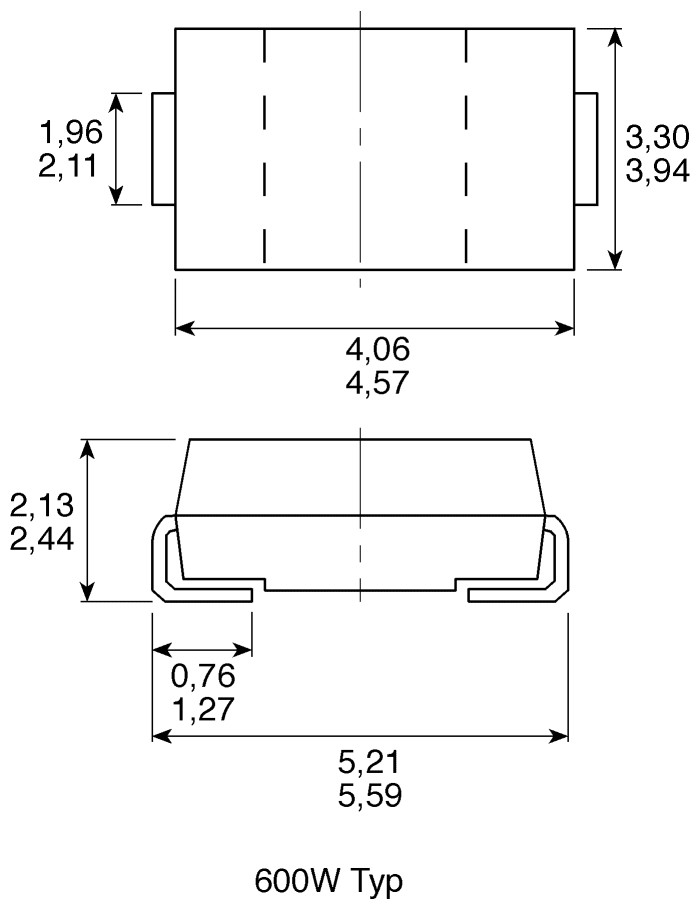

Height	2.24mm
Length	4.7mm
Model	SMBJ26A-E3/52
Width	3.8mm
Mount Type	Surface
Series	TRANSZORB TVS
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	42.1V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	28.9V
Maximum Reverse Stand-off Voltage Vwm	26V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	14.3A
Maximum Reverse Leakage Current	1μA

Key Features

Uni-directional diode configuration for targeted voltage clamping.
Surface mount DO-214 package with 2-pin design.
Minimum breakdown voltage of 28.9 V for effective transient protection.
Maximum peak pulse current rated at 14.3 A.
Temperature operating range from -55°C to 150°C for versatile environments.
Glass passivated chip junction enhances reliability and performance.
Complies with automotive standard AEC-Q101 for quality assurance.
Very fast response time and low incremental surge resistance.

Product Description

Vishay SMBJ26A-E3/52 is a uni-directional, single-element Transient Voltage Suppressor (TVS) diode designed for protection against voltage transients induced by inductive load switching and lightning. It features a surface-mount DO-214 package with a compact form factor of 4.7 mm length, 3.8 mm width, and 2.24 mm height. This TVS diode has a peak pulse power dissipation rating of 600 W and a maximum peak pulse current of 14.3 A, making it suitable for protecting sensitive electronics.

The device operates efficiently over a wide temperature range from -55°C to 150°C. Its minimum breakdown voltage is 28.9 V, with a maximum reverse standoff voltage of 26 V and a clamping voltage of 42.1 V, ensuring excellent voltage clamping capabilities during transient events. The diode's glass passivated chip junction assures improved long-term reliability and device stability.

This Vishay TVS diode complies with automotive AEC-Q101 standards, qualifying it for automotive and industrial applications. It exhibits a very fast response time and low incremental surge resistance, which minimizes power loss and enhances system resilience.

Typical applications include protection of ICs, MOSFETs, and signal lines of sensor units in consumer electronics, industrial controls, telecommunications equipment, and other sensitive instruments.

Uni-directional diode design optimized for transient voltage protection. Compact surface mount DO-214 package suitable for automated assembly. 600 W peak pulse power capability with 10/1000 µs waveform and 0.01% repetition rate.

Glass passivated chip junction for durability. Wide operating temperature range of -55°C to 150°C. Meets automotive standard AEC-Q101 for rigorous quality requirements. Extensive use cases including consumer electronics, industrial, and telecom equipment protection.

Very low leakage current of 1 µA minimizes power wastage. ESD protection included for enhanced device safety. Robust voltage ratings with a minimal test current of 1 mA. Explore EnvMart for a wide selection of Vishay TVS Diodes and other semiconductor components tailored to industrial, commercial, and laboratory use.
