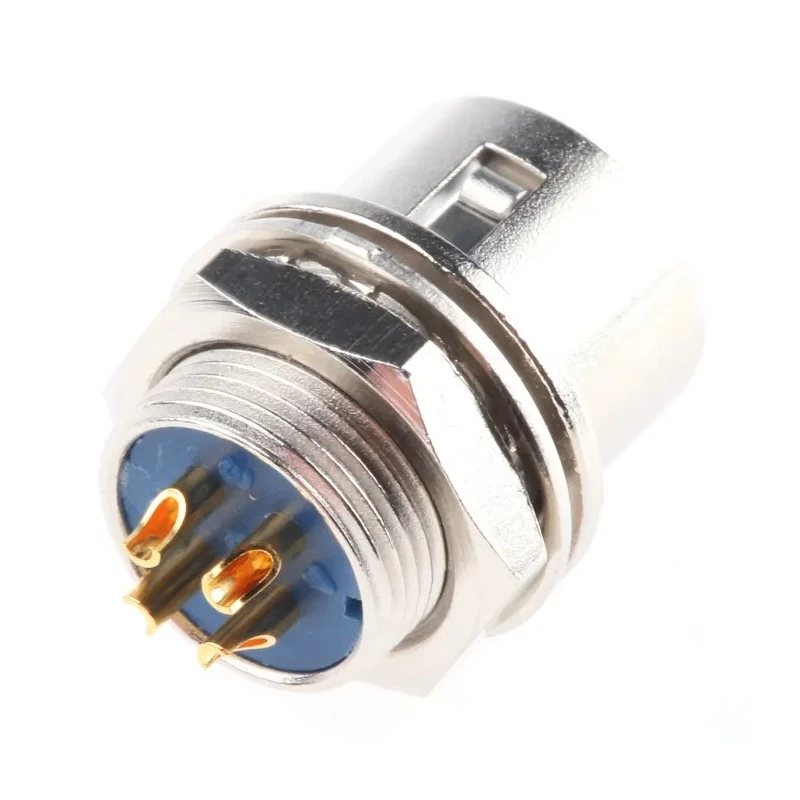

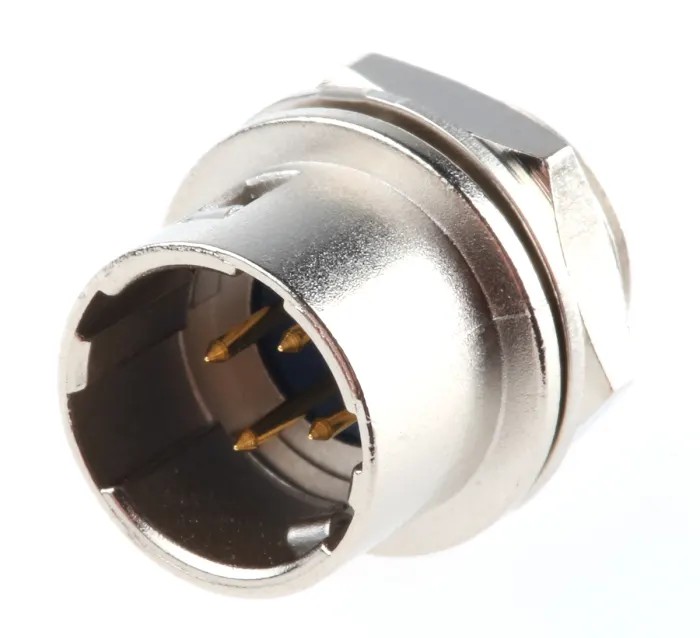

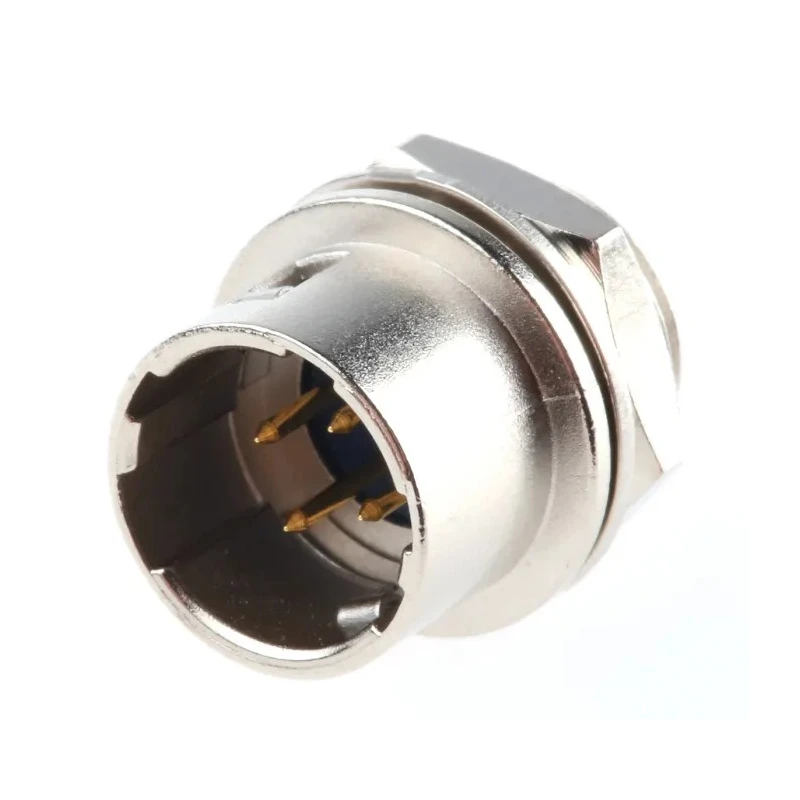

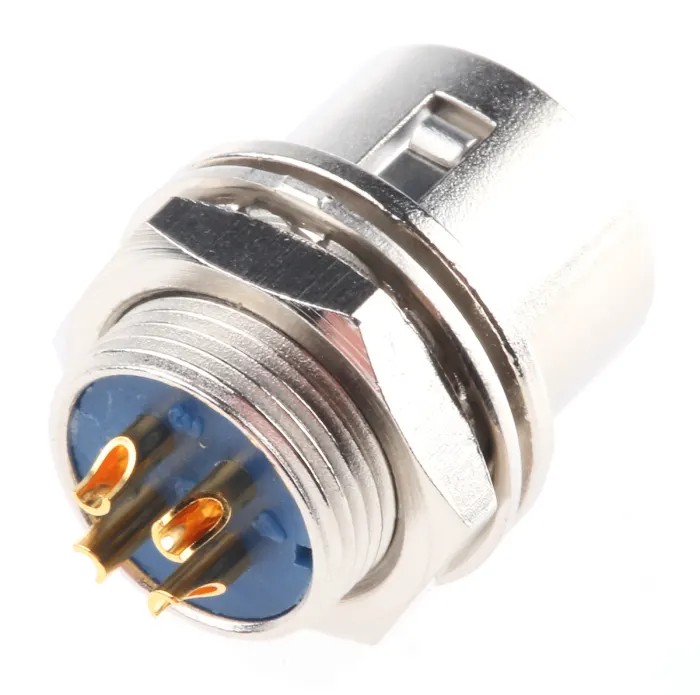

Hirose Miniature Circular Connector, 4 Contacts, Panel Mount, Socket, Male, 100V, 2A, HR10 Series

Free Delivery in India | Lowest Global Shipping Charges

Hirose Miniature Circular Connector, 4 Contacts, Panel Mount, Socket, Male, 100V, 2A, HR10 Series

Name: Hirose Miniature Circular Connector, 4 Contacts, Panel Mount, Socket, Male, 100V, 2A, HR10 Series
Brand: Hirose
SKU: 197638
Price: 12.68 USD
Availability: InStock



Category Industrial Circular Connectors Brand Hirose Condition New

Specifications

Country of Origin	Japan
Voltage	100V
Brand	Hirose
Orientation	Straight
Current	2A
Model	HR10
Mount Type	Panel Mount
Housing Material	Brass, Zinc
Contact Material	Bronze
Series	HR10
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Pole Format	4
Contact Plating	Gold
Number of Contacts	4
Contact Gender	Male
Shell Size	7
Mating Type	Push Pull
Connector Size	Miniature
Plug/Socket	Socket
Hirose, HR10 Panel Mount Miniature Connector Plug, 4 Way, 2ABrand	Hirose

Key Features

The connector supports a current rating of 2 amps.
Operating voltage is rated at 100 volts.
Designed with a push-pull latching mechanism for reliable quick connect and disconnect.
Constructed from brass and zinc housing materials ensuring durability.
Contacts are bronze with gold plating to guarantee excellent conductivity and corrosion resistance.
Miniature size shell with size 7 designation for compact installation.
Operating temperature ranges from -25°C to 85°C, suitable for varied environments.
Termination is through soldering ensuring solid electrical connections.

Product Description

Hirose HR10-7R-4P(73) is a miniature circular connector engineered for panel mount applications in industrial settings. This 4-contact socket with male contact gender supports 2A current at 100V, making it suitable for electronic component connectivity where reliability and compact form factor are essential.

The connector features a robust push-pull latching mechanism that facilitates quick and secure connections, minimizing installation time and error risk. Its five-key polarization system effectively prevents misconnections, enhancing operational safety in complex assemblies.

The housing is manufactured from durable brass and zinc materials providing mechanical strength and resistance to environmental factors. The contacts use bronze with a gold plating finish, ensuring outstanding conductivity and corrosion resistance, critical for maintaining signal integrity.

Its miniature size shell (size 7) allows for space-efficient usage in constrained panel spaces. The solder termination method offers secure and stable electrical joints, critical for industrial and electronic equipment reliability under varying temperature conditions from -25°C to 85°C.

Originating from Japan, this connector meets high manufacturing standards suitable for diverse industrial, manufacturing, and electronic assembly applications. The connector’s design supports mating with cable mounting plugs or jacks, adaptable for various equipment interfaces.

The connector supports a current rating of 2 amps. Operating voltage is rated at 100 volts. Push-pull latching mechanism ensures quick and secure connection. Housing constructed from brass and zinc materials. Bronze contacts plated with gold for conductivity and corrosion resistance.

Miniature size 7 shell provides compact installation. Can operate in temperatures ranging from -25°C to 85°C. Solder termination type for reliable electrical joints. Five-key polarization system prevents misconnections. Manufactured in Japan, ensuring quality and consistency.

This Hirose industrial circular connector is ideal for applications in electronics components assembly, manufacturing, industrial automation, and power distribution systems requiring robust and compact connectivity. Explore more connectors and electronic components in the Electronics & Electricals section on EnvMart.

Explore more products in our Industrial Circular Connectors category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It supports a current rating of 2 amps and an operating voltage of 100 volts.

The housing is constructed from brass and zinc, while the contacts are made of bronze with gold plating for enhanced conductivity and corrosion resistance.

It can operate in temperatures ranging from -25°C to 85°C, making it suitable for various environments.

The push-pull latching mechanism allows for quick and secure connections, minimizing installation time and reducing the risk of errors.

It uses solder termination, which ensures secure and stable electrical joints.

It features a miniature size shell with a size 7 designation, suitable for compact installations.

This model has 4 contacts and is designed as a socket with male contact gender.

It incorporates a five-key polarization system that effectively prevents misconnections.

It is manufactured in Japan, ensuring adherence to high manufacturing standards.

It is ideal for electronic component assembly, industrial automation, and power distribution systems that require robust connectivity.

The connector has a straight orientation, making it suitable for panel mount applications.

This connector is produced by Hirose, known for its reliable electronic components.
