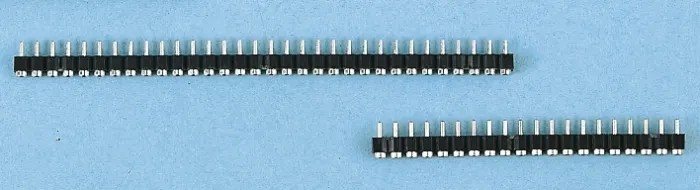

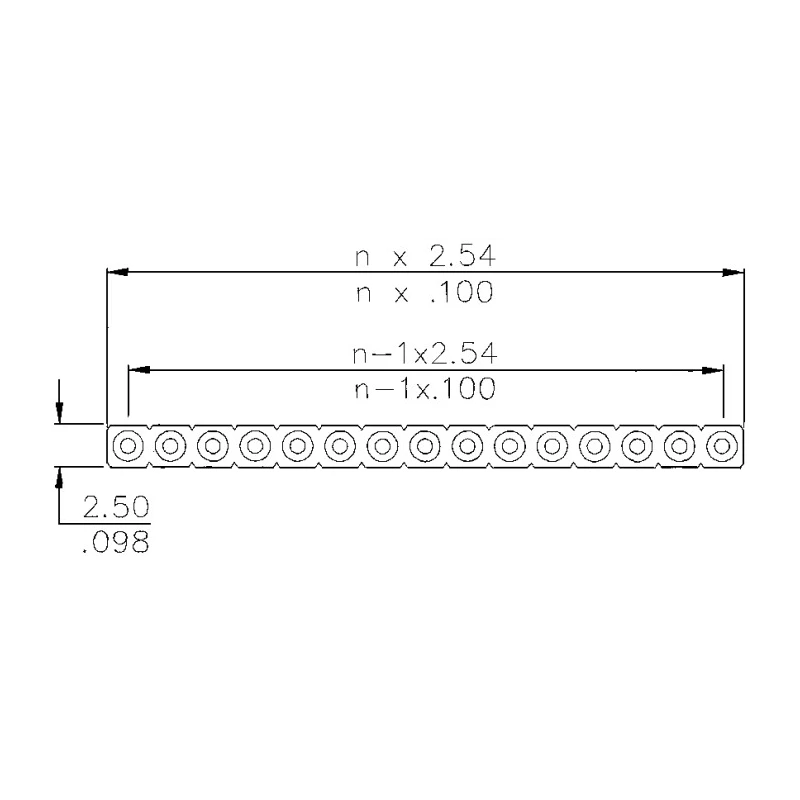

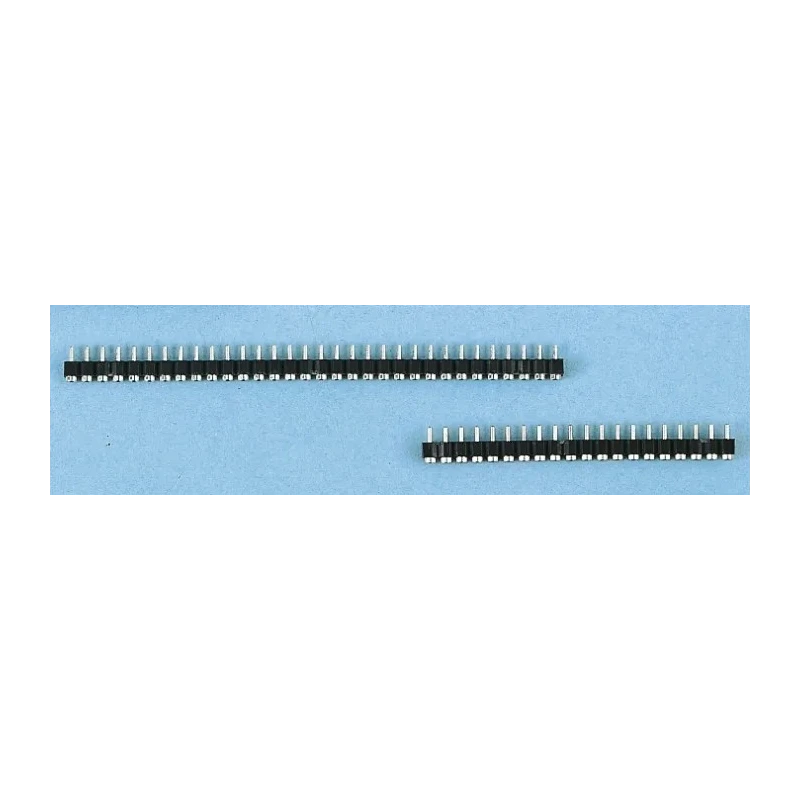

E-TEC PCB Socket 20-Contact 1 Row 2.54 mm Pitch Straight Through Hole Solder SIB-120-S047-95

Free Delivery in India | Lowest Global Shipping Charges

E-TEC PCB Socket 20-Contact 1 Row 2.54 mm Pitch Straight Through Hole Solder SIB-120-S047-95

Name: E-TEC PCB Socket 20-Contact 1 Row 2.54 mm Pitch Straight Through Hole Solder SIB-120-S047-95
Brand: E-TEC
SKU: 197407
Price: 11.42 USD
Availability: InStock



Category PCB Sockets Brand E-TEC Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	E-TEC
Orientation	Straight
Current	1A
Model	SIB-120-S047-95
Mount Type	Through Hole
Housing Material	Plastic
Contact Material	Beryllium Copper Alloy
Series	SIB
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Wire-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	2.54mm

Key Features

The socket features a straight orientation and gold-plated beryllium copper alloy contacts.
It supports a continuous current rating of 1 A and voltage up to 500 V.
The housing is made from durable plastic suitable for standard PCB applications.
Operating temperature ranges from -55°C to 125°C for reliable performance in varied environments.
Stacking height is 2.54 mm, ensuring low-profile connectivity on PCBs.
This connector system is designed for board-to-board configurations with a female contact gender.
The product is RoHS compliant with no additional certifications.
Ideal for industrial electronics, power, and control equipment requiring reliable PCB connections.

Product Description

E-TEC SIB-120-S047-95 PCB Socket is a high-quality straight through hole connector featuring 20 contacts arranged in a single row with a 2.54 mm pitch, designed for secure solder termination on printed circuit boards. It operates at up to 1 A current and 500 V voltage, making it suitable for various industrial and electronic applications.

The plastic housing and gold-plated beryllium copper alloy contacts ensure excellent durability and electrical conductivity. The socket's operating temperature range from -55°C to 125°C allows reliable functioning in harsh industrial environments.

Designed with a stacking height of 2.54 mm, this low-profile connector supports board-to-board connections in control systems, industrial automation, and power electronics modules. Its straight orientation and through-hole mount type facilitate easy PCB integration.

The SIB series represents a versatile range of PCB Sockets with divisible low-profile strips, enabling design flexibility with 20 or 32 contact options. This E-TEC PCB socket is RoHS compliant, ensuring environmentally responsible manufacturing standards.

The socket features gold-plated contacts for enhanced corrosion resistance. Plastic housing provides reliable insulation and mechanical stability. Solder termination type ensures firm electrical and mechanical connections.

Female contact gender designed for secure mating with corresponding male pins. Industry-standard 2.54 mm spacing supports widespread electronic component compatibility. Ideal for applications in industrial control panels, manufacturing equipment, and laboratory instruments.

The product series offers modular design to accommodate different contact counts and configurations. Explore more reliable PCB connectors and sockets in the Electronics Components category at EnvMart, crafted for demanding industrial and manufacturing needs.
