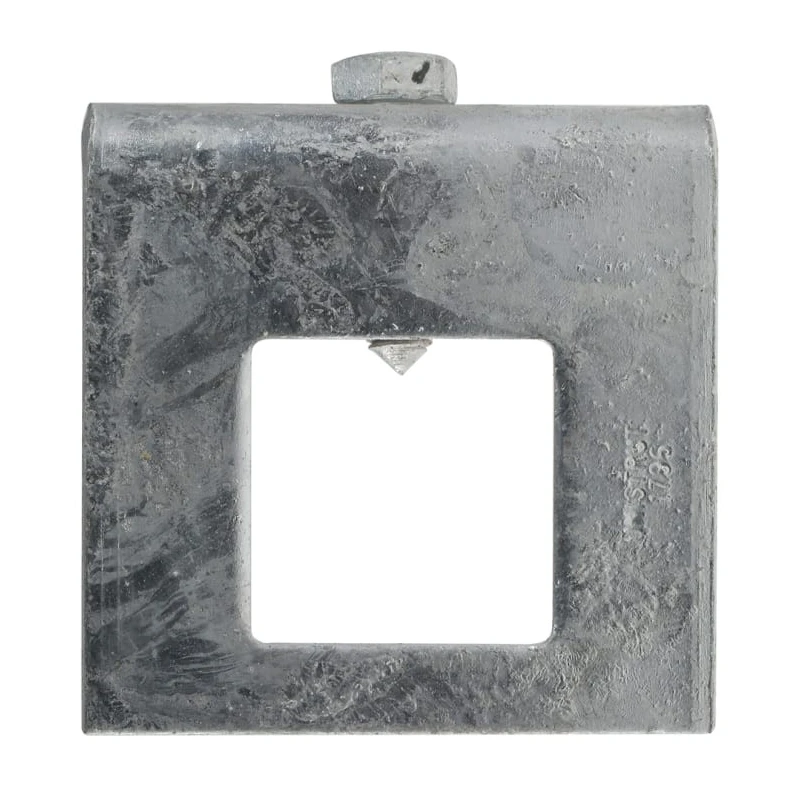

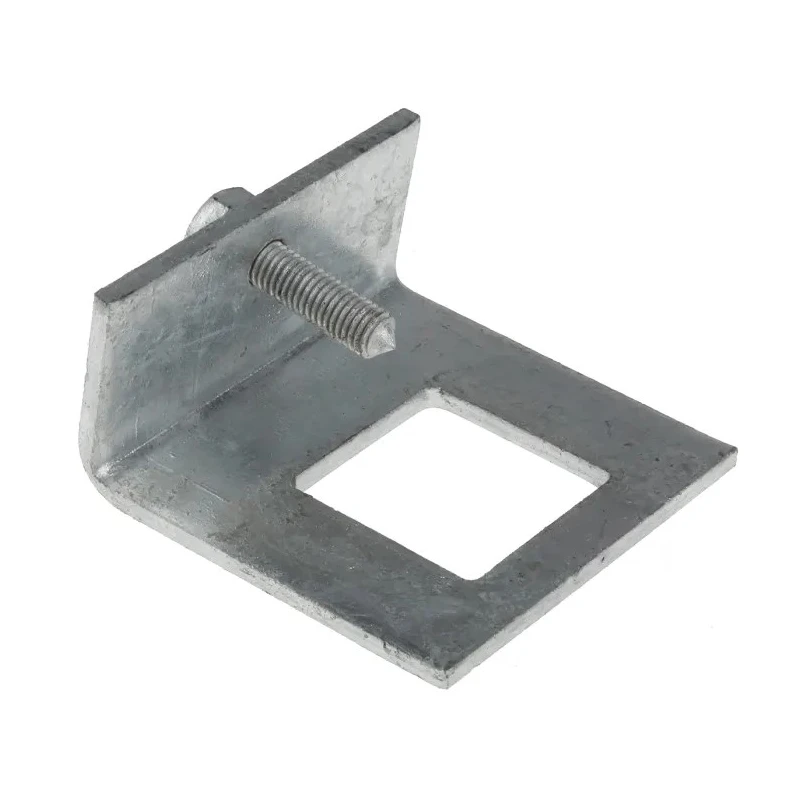

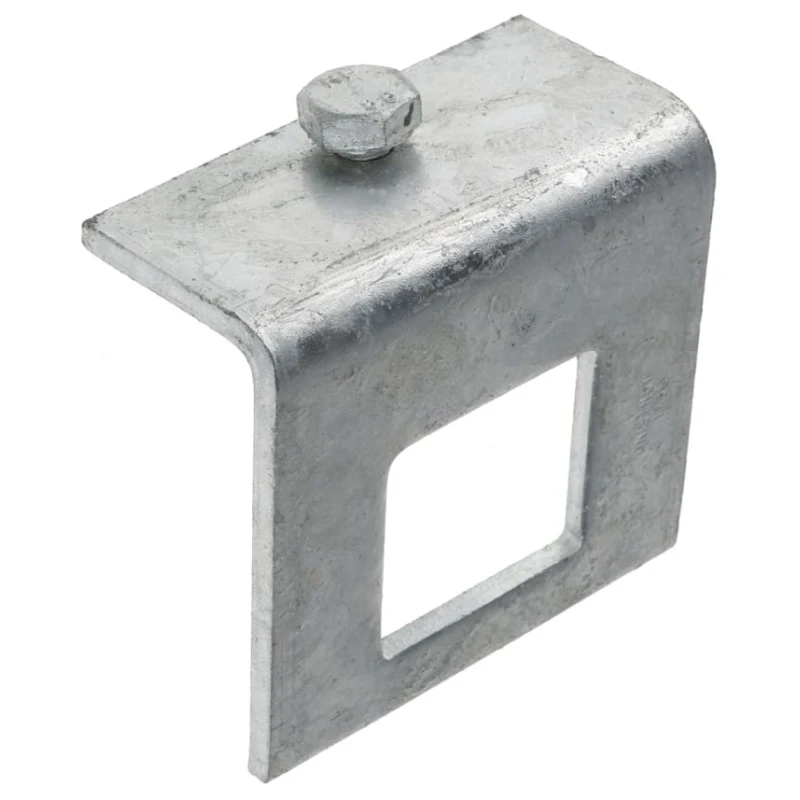

Unistrut Galvanised Steel Beam Clamp Window Bracket M10 Bolt P 1796

Unistrut P 1796 galvanised steel beam clamp is a precision-engineered window bracket designed to provide reliable channel support for various industrial and construction applications. Made from high-quality galvanised steel, this beam clamp delivers excellent corrosion resistance and strength, suitable for both indoor and outdoor environments.

The clamp fits channel sizes of 41 x 41 mm and features an M10 bolt size with a mounting hole centre-to-centre distance of 48 mm, enabling secure and easy installation. The fixing hole diameter is 14 mm, and the hole spacing from the end is 21 mm, allowing precise mechanical attachment.

This product has a design load capacity of 500 lbs (2.22 kN) per clamp, with a safety factor of 2.5 based on the ultimate strength of the connection. The set screw installation torque is specified as 125 in-lbs (14 N-m) to ensure firm fastening within structural assemblies.

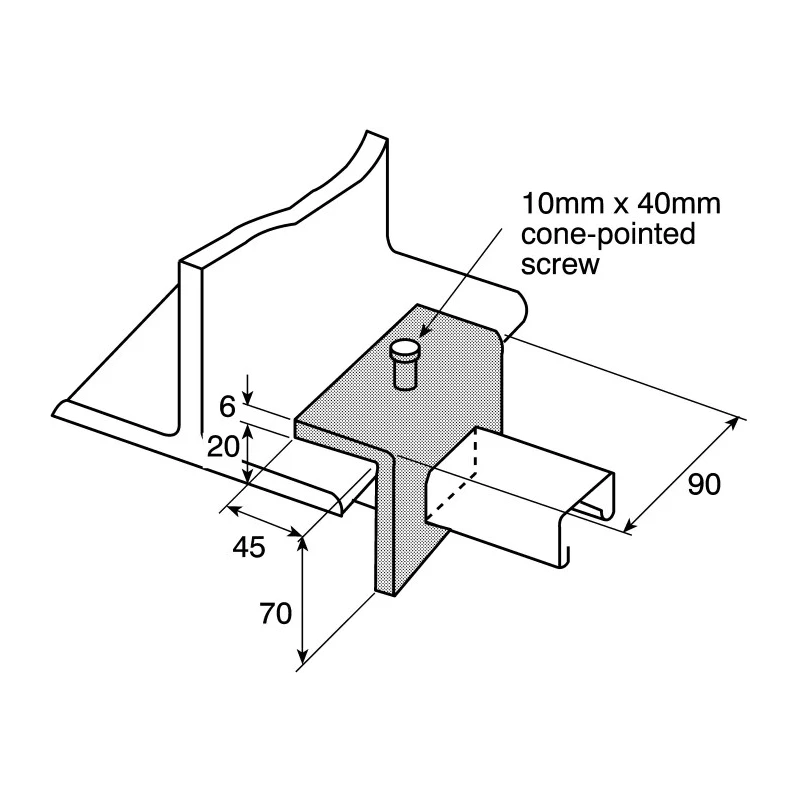

With overall dimensions of 90 mm length, 90 mm height, and 45 mm width, it offers a compact form factor suitable for a wide variety of mechanical, fluid power, and industrial applications including construction, HVAC, and manufacturing setups.

It complies with RoHS standards, ensuring environmentally friendly material use. This beam clamp is manufactured in the United Kingdom, guaranteeing high product quality and compliance with international standards.

Constructed from galvanised steel for durability and corrosion resistance. Compatible with 41 x 41 mm channel sizes for versatile use. M10 bolt size with precise mounting hole spacing ensures secure installation. Design load of 500 lbs with a factor of safety of 2.5 for reliable performance.

Set screw torque rating of 125 in-lbs for secure fastening. Conforms to RoHS environmental and safety standards. Compact dimensions enable use in various industrial and construction applications. Manufactured in the United Kingdom under strict quality controls.

This Unistrut beam clamp is ideally suited for industrial, construction, HVAC, and manufacturing environments where reliable channel support and mounting are essential. The galvanised finish ensures longevity even in harsh environments. Browse the Industrial Tools & Equipment category for similar precision clamps and channel support accessories on EnvMart.
