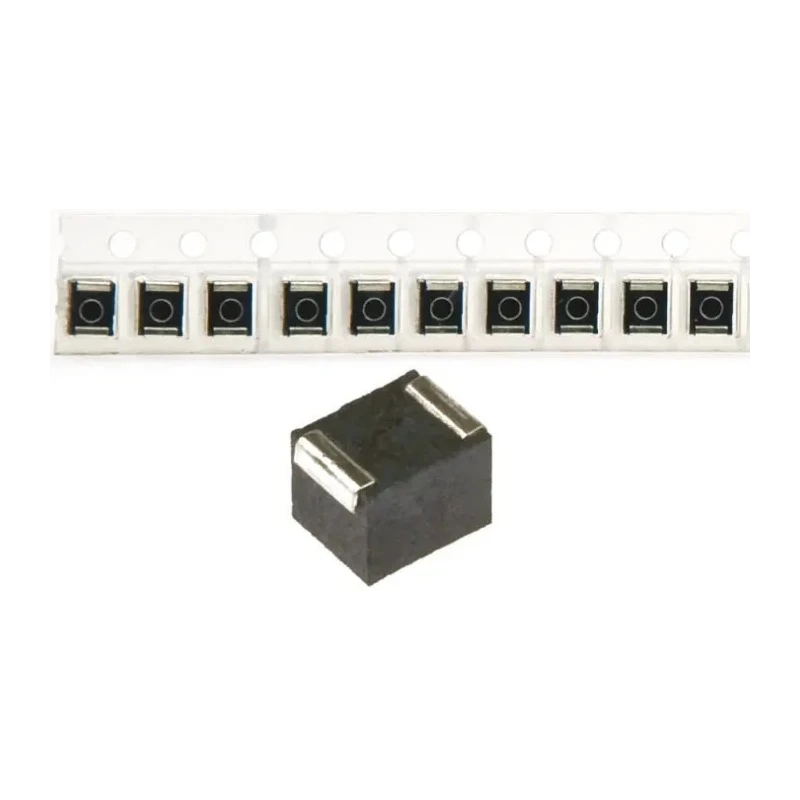

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 5.6 μH ±5% 200 mA Idc Q:30 NLV32T-5R6J-PF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLV32T-5R6J-PF |
| Depth | 2.5mm |
| Series | NLV-PF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 5.6μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 200mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1.6Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 45MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
| Applications include | TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc |
| Panasonic, ELJNA, 3225 Wire-wound SMD Inductor 5.6 μH ±5% Wire-Wound 65mA Idc Q | 13Brand: Panasonic |
Key Features
- Inductance of 5.6 μH ensures effective signal filtering and noise reduction.
- Maximum DC current rating of 200 mA for reliable operation in low-power circuits.
- Compact 1210 package size suitable for surface mount technology PCBs.
- Ferrite core construction offers enhanced magnetic performance and shielding.
- High quality factor (Q) of 30 provides sharp frequency response.
- Temperature range from -40°C to +105°C ensures durability under diverse conditions.
- RoHS compliant and moulded thermoplastic resin exterior for environmental safety.
- Applications include TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, and HDDs.
Product Description
TDK NLV32T-5R6J-PF is a 1210 size shielded wirewound Surface Mount Inductor incorporating a ferrite core and designed for advanced electronic applications requiring high precision inductance and effective electromagnetic shielding.
This inductor features a nominal inductance of 5.6 μH with a tolerance of ±5%, supporting a maximum DC current of 200 mA. Its compact dimensions of 3.2 mm length, 2.2 mm height, and 2.5 mm depth facilitate integration in high-density PCB layouts.
The inductor's ferrite core material enhances magnetic performance and shielding effectiveness, while the moulded thermoplastic resin casing provides excellent heat resistance and mechanical protection. It operates reliably over a wide temperature range from -40°C to +105°C, meeting the needs of diverse industrial, consumer electronics, and automotive applications.
With a high quality factor (Q) of 30 and a maximum DC resistance of 1.6 Ω, this component delivers efficient energy transfer and sharp frequency response suitable for signal line applications including televisions, VCRs, digital cameras, xDSL systems, car audio units, electronic control units (ECUs), and hard disk drives (HDDs).
Inductance: 5.6 μH ±5%. Package/Case: 1210 surface mount. Maximum DC current: 200 mA. Operating temperature: -40°C to +105°C. Shielded wirewound construction with ferrite core. High quality factor of 30 ensures precise electrical performance.
Maximum self-resonant frequency is 45 MHz. RoHS compliant for environmental safety. Ideal for use in industrial, consumer electronics, automotive, and telecommunications equipment. Manufactured in Japan to rigorous quality standards.
Recover the benefits of a reliable, efficient inductor designed to meet demanding electronic design specifications. This component is especially suited for use in signal conditioning, noise filtering, frequency tuning, and energy storage in compact surface mount assemblies.
Explore more options and technical resources for electronic components in the EnvMart catalog to support your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 5.6 μH with a tolerance of ±5%.
It has a maximum DC current rating of 200 mA, making it suitable for low-power circuits.
The dimensions of this inductor are 3.2 mm in length, 2.2 mm in height, and 2.5 mm in depth.
This model operates over a temperature range from -40°C to +105°C.
The inductor has a high quality factor (Q) of 30, which ensures efficient energy transfer and sharp frequency response.
The maximum self-resonant frequency is 45 MHz.
It features a ferrite core material, which enhances its magnetic performance and shielding effectiveness.
Yes, this inductor is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for applications including TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, and HDDs.
This inductor is constructed using a wirewound method, which contributes to its performance characteristics.
The maximum DC resistance is 1.6 Ω.
This model features a surface mount termination style, suitable for integration into high-density PCB layouts.
