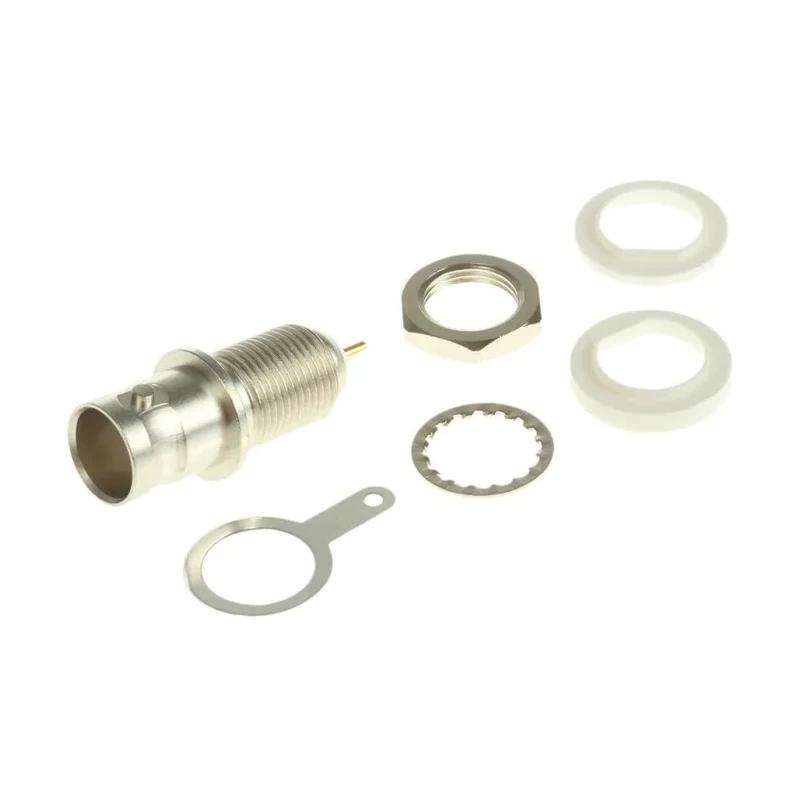

Telegartner BNC Series Coaxial Connector Panel Mount Female, 75 Ω, Straight Body Solder J01003B1286
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01003B1286 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Supports operating frequency up to 4 GHz for high-frequency applications.
- Constructed with nickel-plated body and gold-plated beryllium copper contacts for durability and corrosion resistance.
- Rated for a temperature range from -65°C to 165°C ensuring performance in extreme environments.
- Features a bayonet coupling mechanism for quick and secure connections.
- IP54 rated between mated plug and jack providing protection against dust and splashing water.
- Designed for panel mount installation with standard size for easy integration.
- Compatible with signal, data, and video transmission applications.
- Manufactured in Germany assuring high-quality engineering standards.
Product Description
Telegartner J01003B1286 is a high-quality BNC Series Coaxial Connector designed for panel mount applications, providing 75 Ω impedance with a straight body and solder termination type. It is especially optimized for use in electronic components dealing with signal, data, and video transmissions.
This coaxial connector supports an operating frequency of up to 4 GHz, enabling fast and accurate high-frequency signal handling in industrial, audio/video, telecommunications, and laboratory environments. Its nickel-plated body offers robust protection, while the gold-plated beryllium copper contacts ensure excellent electrical conductivity and corrosion resistance over prolonged use.
The connector is rated for extreme temperature ranges from -65°C to 165°C, making it suitable for harsh environmental conditions. The reliable bayonet coupling mechanism allows for quick and secure connector engagement requiring only a quarter turn to connect or disconnect, enhancing operational efficiency.
Additionally, the connector assembly is IP54 rated when mated, offering protection against dust ingress and splashing water, ideal for both indoor and outdoor industrial applications. The standard size and panel mount design simplify installation and maintenance tasks.
Manufactured in Germany, this connector adheres to stringent quality standards ensuring durability and reliability in demanding technical systems. Supports operating frequency up to 4 GHz for high-frequency applications.
Nickel-plated body and gold-plated beryllium copper contacts for long-lasting durability. Temperature rating from -65°C to 165°C suitable for diverse environments. IP54 rated between connected plug and jack for dust and water resistance.
Bayonet coupling mechanism allows easy and secure connections. Panel mount type with standard dimensions for seamless integration.
This Coaxial Connector is essential for industrial, laboratory, telecommunications, manufacturing, and commercial electronics applications requiring dependable and efficient signal transmission components. Explore more high-quality connectors and related electronics components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This BNC connector supports an operating frequency of up to 4 GHz, making it suitable for high-frequency applications.
It features a solder termination type, which is common for ensuring a secure electrical connection.
The connector is rated for a temperature range from -65°C to 165°C, allowing it to perform in extreme environments.
The bayonet coupling mechanism allows for quick and secure connections, requiring only a quarter turn to connect or disconnect the connector.
It has a nickel-plated body and gold-plated beryllium copper contacts, providing durability and corrosion resistance.
Yes, it is IP54 rated when mated, providing protection against dust ingress and splashing water, suitable for both indoor and outdoor use.
This model has an impedance of 75 Ω, which is standard for many video and data transmission applications.
The connector features a straight body orientation, which is typical for panel mount applications.
It is designed for signal, data, and video transmission applications, making it versatile for various electronic components.
It is designed for panel mount installation with standard dimensions to facilitate easy integration into existing systems.
This connector is manufactured in Germany, adhering to high-quality engineering standards.
This model features a female contact gender, which is compatible with male connectors in BNC applications.
