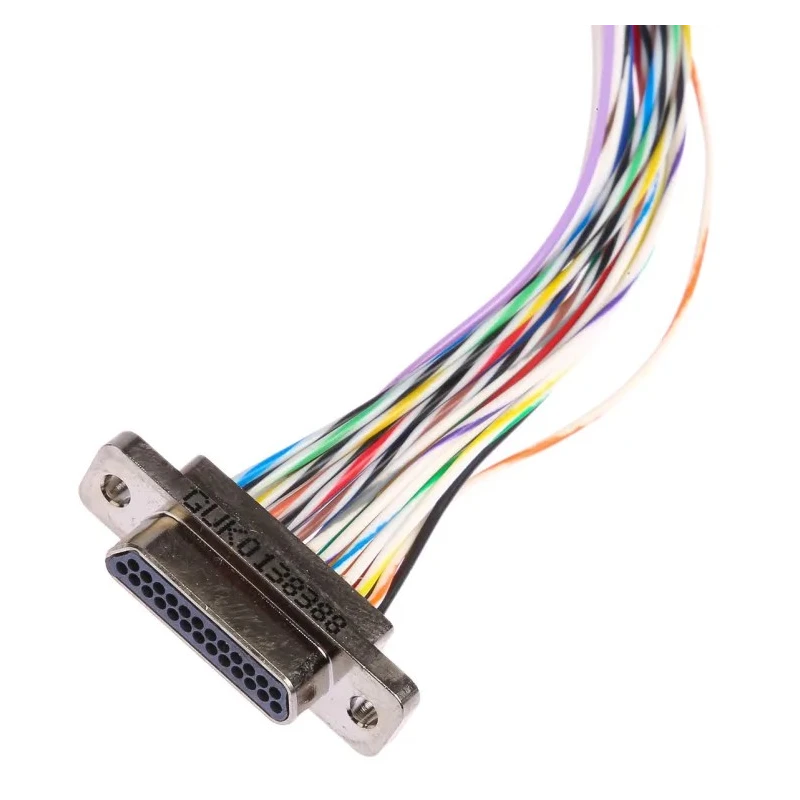

Glenair MWDM 25 Way Straight Through Hole Micro-D Male D-Sub Connector with Jack Screw MWDM2L-25P-6E5-18B

Glenair MWDM2L-25P-6E5-18B is a high-performance 25 way straight through-hole Micro-D male D-Sub connector designed for demanding commercial and military electronic systems. Operating at a voltage rating of 600V and current rating of 3 Amps, this connector ensures reliable electrical performance even in extreme environmental conditions ranging from -55°C minimum to 150°C maximum operating temperatures.

The connector features a rugged nickel-plated aluminium body combined with a Liquid Crystal Polymer (LCP) molded housing, offering a high resistance to shock, vibration, and thermal stress. Its gold-plated TwistPin contact system guarantees low contact resistance and excellent reliability, making it suitable for aerospace, military land and sea, industrial, and telecommunication applications.

This model uses through-hole mounting with jack screw hardware, ensuring a secure and stable connection. The connector's Micro-D 0.05-inch pitch accommodates a dense 25-contact arrangement in a compact footprint, supporting high density electronic designs.

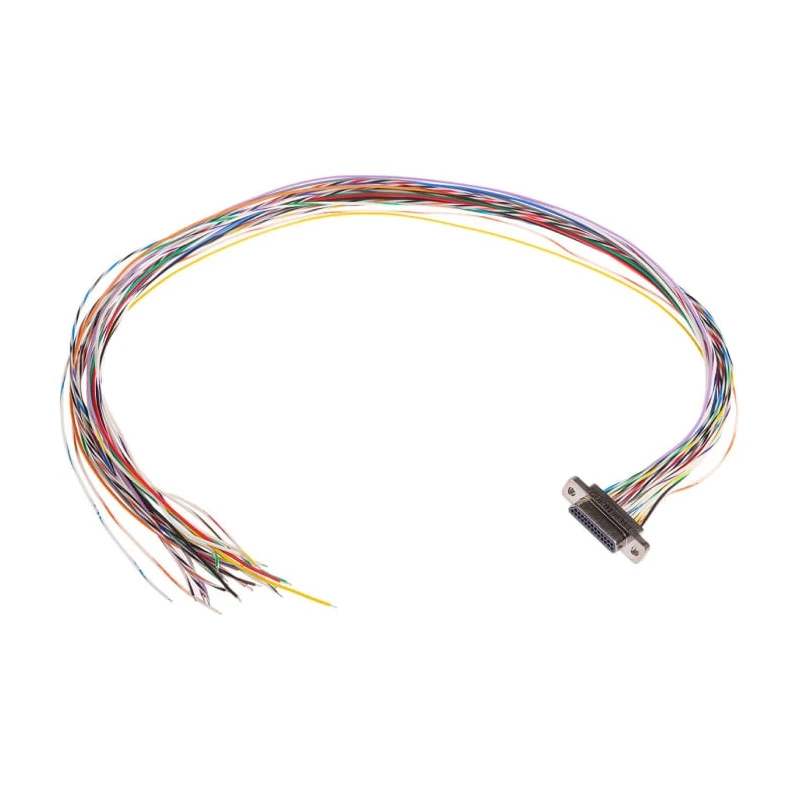

The connector is environmentally sealed via epoxy and interfacial seals, providing protection against harsh conditions. Wire terminations include 26 AWG pigtail wiring with an 18-inch length, facilitating easy integration into assemblies.

High-density 25 way Micro-D design for compact electronic systems. Gold-plated TwistPin contacts for enhanced signal integrity and durability. Liquid Crystal Polymer housing molded for high temperature resistance. Nickel-plated aluminium body providing rugged mechanical strength.

Jack screw mounting hardware for secure and vibration-resistant installation. Suitable for aerospace, military, industrial, and telecommunications industries. Environmentally sealed to withstand harsh environmental conditions.

Supports voltages up to 600V and currents up to 3 Amps. Wide operating temperature range from -55°C to 150°C.

This product is manufactured in the United Kingdom following the MWDM series standards and ensures high reliability for complex electronic interconnection needs. Glenair's MWDM connectors are recognized for their superior mechanical and electrical integrity, meeting Mil-PRF-83513 and BS9523-F0002 standards.
