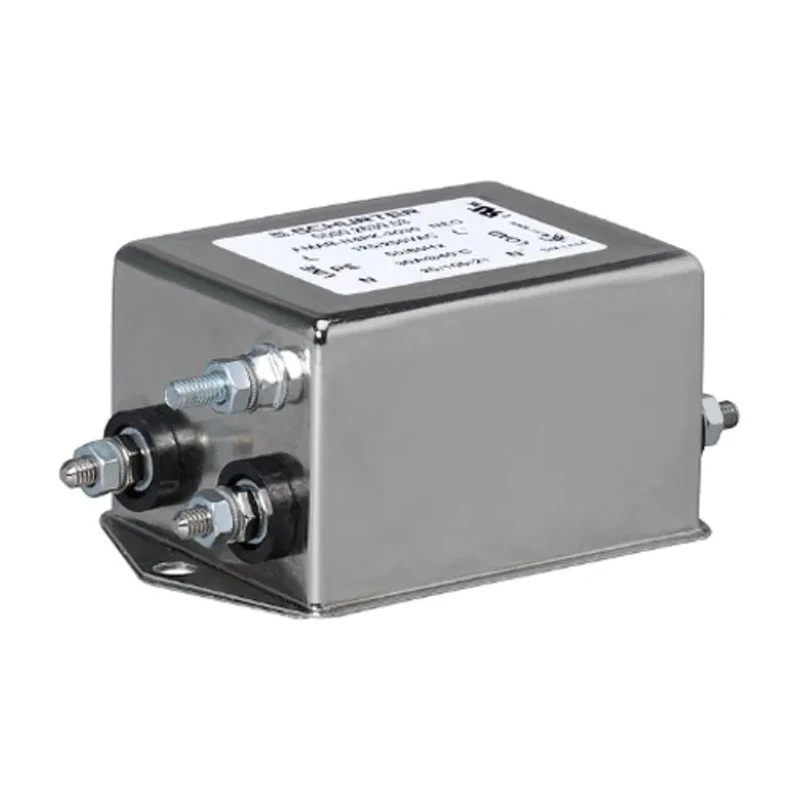

Schurter FMAB NEO Power Line Filter Flange Mount 3A 250V ac 50Hz/60Hz Quick Connect 1 Phase 5500.2651.01
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schurter |
| Height | 24.8mm |
| Length | 64mm |
| Depth | 35.5mm |
| Mount Type | Flange |
| Operating Frequency | 50, 60Hz |
| Series | FMAB NEO |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 36mΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 3A |
| Number of Phases | 1 |
| Leakage Current | 500μA |
| Maximum Voltage | 250V ac |
| Termination Style | Quick Connect |
| Power Loss | 0.65W |
Key Features
- Rated for a maximum current of 3 amperes for effective power filtering.
- Supports a maximum voltage of 250 volts AC operating at 50Hz and 60Hz frequencies.
- Compact flange mounting design for easy installation in electrical systems.
- Equipped with quick connect terminals for efficient and reliable connections.
- Operates reliably between -40°C and 100°C ambient temperatures.
- Leakage current kept low at 500 microamperes to minimize energy loss.
- Robust steel housing construction ensures durable performance.
- Power loss is minimal at 0.65 watts for energy-efficient operation.
Product Description
Schurter 5500.2651.01 FMAB NEO Power Line Filter is a compact, flange-mounted filter designed for universal industrial use, offering high symmetrical attenuation of electrical noise in single-phase power lines. With a maximum current rating of 3A and rated voltage of 250V AC, it operates efficiently at standard AC frequencies of 50Hz and 60Hz.
The filter ensures reliable performance within an ambient temperature range from -40°C up to 100°C, making it suitable for harsh industrial environments. It features a robust completely closed steel housing that provides durable protection and long service life.
Its quick connect termination style simplifies installation and maintenance by enabling fast, secure electrical connections. The device is engineered to suppress symmetrical noise typically caused by switching semiconductors and is applicable in medical equipment complying with IEC/UL 60601-1 and general equipment according to IEC/UL 60950 standards.
With a low leakage current of 500μA and power loss of just 0.65W, the filter minimizes energy consumption while maintaining efficient noise attenuation. Its dimensions of 64 mm length, 35.5 mm depth, and 24.8 mm height contribute to its compact footprint, suitable for tight installation spaces.
This single-phase, single-stage FMAB NEO series filter is manufactured in China and is ideal for diverse industrial, medical, and commercial electrical applications requiring power quality improvement.
Rated maximum current of 3A allows handling of standard industrial loads. Supports up to 250V AC voltage with 50/60 Hz frequency compatibility. Flange mounting design ensures stable and secure installation. Quick connect terminals enable fast and reliable wiring.
Wide operating temperature range from -40°C to 100°C for versatile deployment. Leakage current limited to 500μA reduces unwanted power loss. Compact steel housing optimizes space usage and protects internal components. Designed for symmetrical noise reduction in power lines.
Compliance ready for medical and general equipment safety standards. Power loss minimized to 0.65W for efficient operation. Explore the comprehensive range of Power Line Filters and electrical components available at EnvMart to enhance your industrial power systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this power line filter is 3 amperes.
It supports a maximum voltage of 250 volts AC.
This model operates at standard AC frequencies of 50Hz and 60Hz.
It operates reliably within an ambient temperature range from -40°C to 100°C.
It features a flange mounting design for easy and secure installation.
This model is equipped with quick connect terminals for efficient and reliable connections.
The dimensions are 64 mm in length, 35.5 mm in depth, and 24.8 mm in height.
The leakage current is limited to 500 microamperes.
The power loss is minimal at 0.65 watts, contributing to energy-efficient operation.
It complies with IEC/UL 60601-1 for medical equipment and IEC/UL 60950 for general equipment.
The filter features a robust steel housing construction for protection and durability.
This model is manufactured in China.
