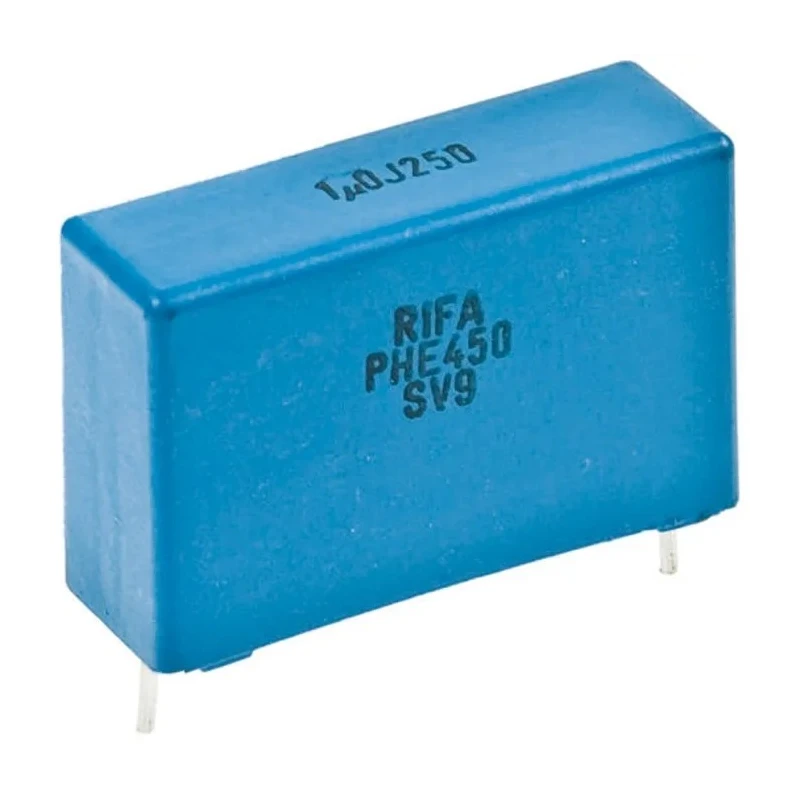

KEMET PHE450 Film Capacitor ±5 % Tolerance 10 nF Capacitance 2 kV DC 180 V AC Radial Through Hole Mount

Free Delivery in India | Lowest Global Shipping Charges

KEMET PHE450 Film Capacitor ±5 % Tolerance 10 nF Capacitance 2 kV DC 180 V AC Radial Through Hole Mount

Name: KEMET PHE450 Film Capacitor ±5 % Tolerance 10 nF Capacitance 2 kV DC 180 V AC Radial Through Hole Mount
Brand: KEMET
SKU: 196798
Price: 1.85 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	14.5mm
Length	26mm
Model	PHE450
Packaging	Tape & Reel
Width	6.5mm
Mount Type	Through Hole
Series	PHE450
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	10nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.0003%
Rated Voltage	250 V dc to 3000 V dc
Lead Length	6mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	180V ac
Rated DC Voltage	2kV dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Capacitance tolerance	±5%, other tolerances on request
Lead Spacing	7.5 mm to 37.5 mm
PULSE CAP 0.01UF 2KVDCBrand	Evox-Rifa

Key Features

Constructed with double metallized polypropylene film for high pulse and stress tolerance.
Encapsulated in self-extinguishing UL 94 V-0 compliant resin for safety and durability.
Radial lead type with 22.5 mm lead pitch suited for through hole PCB mounting.
Operates reliably between -55°C and 105°C temperature range.
Compliant with RoHS standards ensuring environmental safety.
Lead diameter of 0.8 mm and length of 6 mm ensures good mechanical stability.
Suitable for electronic applications requiring high voltage and low dissipation factor of 0.0003%.
Typical applications include snubber circuits, pulse circuits, and protection in switch mode power supplies.

Product Description

KEMET PHE450 Film Capacitor model PHE450SD5100JR06L2 features a 10 nF capacitance with a ±5 % tolerance, rated for 2 kV DC and 180 V AC voltages. This component is a through hole mounted device with radial leads designed for secure PCB insertion.

This film capacitor uses double metallized polypropylene film, providing excellent pulse capability and reducing losses with a dissipation factor of only 0.0003%. The encapsulation in self-extinguishing resin complying with UL 94 V-0 enhances safety in electronic circuits.

Mechanical dimensions include a lead pitch of 22.5 mm, lead length of 6 mm, and a lead diameter of 0.8 mm. The device measures 26 mm in length, 14.5 mm in height, and 6.5 mm in width, making it compact for various electronic assemblies.

It operates effectively in temperatures ranging from -55°C to 105°C, suitable for demanding industrial and commercial environments. This capacitor is compliant with RoHS directives, ensuring that it contains no hazardous substances.

Its primary use cases include pulse and snubber circuits, and protection circuits in switch mode power supplies, making it essential for electronics where voltage stability and noise suppression are critical.

Double metallized polypropylene film construction for enhanced durability. Rated voltage from 250 V DC to 3000 V DC, and 180 to 1000 V AC, covering a wide application range. Encapsulated in UL94V-0 compliant self-extinguishing resin housing.

Lead spacing options from 7.5 mm to 37.5 mm provide flexibility in design. Supplied on tape and reel for efficient assembly line use. Compliant with RoHS standards ensuring environmental safety. Specialized for use in pulse, snubber, and protection electronic circuits.

This film capacitor is widely used in electronic manufacturing, industrial control, and power supply design. Browse related Film Capacitors in EnvMart for more options to suit your electronic component requirements.
