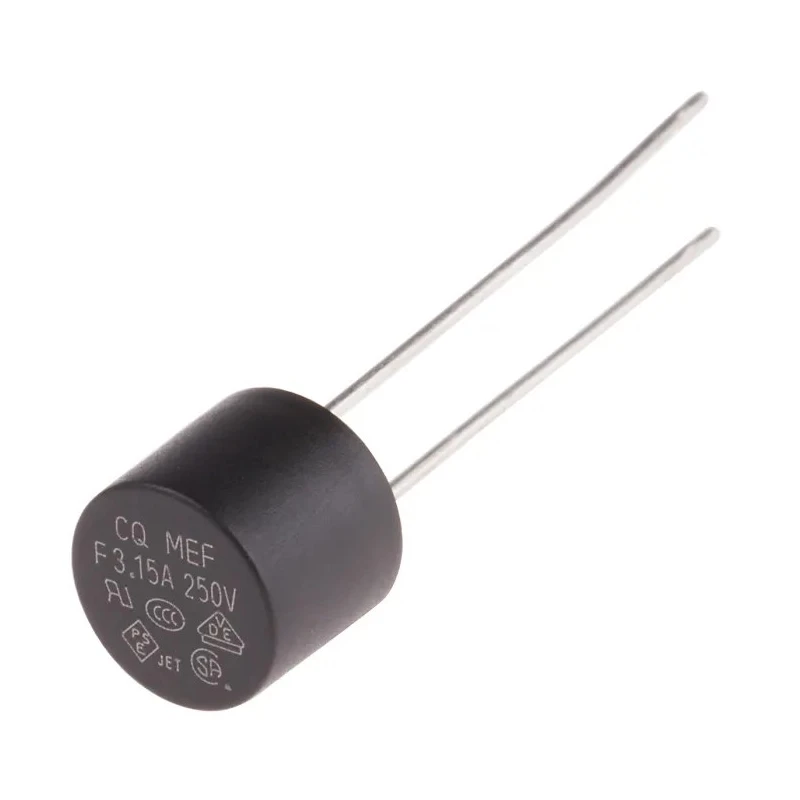

RS PRO Non-Resettable Fuse, Radial, 3.15A, 250V AC, Fast Acting, Thermoplastic Body 767-5229

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Non-Resettable Fuse, Radial, 3.15A, 250V AC, Fast Acting, Thermoplastic Body 767-5229

Name: RS PRO Non-Resettable Fuse, Radial, 3.15A, 250V AC, Fast Acting, Thermoplastic Body 767-5229
Brand: RS PRO
SKU: 130508
Price: 0.8 USD
Availability: InStock



Category Fuse Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	250V ac
Diameter	8.35mm
Brand	RS PRO
Body Material	Thermoplastic
Height	7.7mm
Length	5.08mm
Model	767-5229
Current Rating	3.15A
Series	RS PRO
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Lead Length	22mm
Breaking Capacity	35A
Standards/Approvals	RoHS
Lead Diameter	0.62mm
Fuse Characteristics	Fast Acting
Lead Orientation	Radial
Schurter Non-Resettable Fuse, Radial 3.15A, 250V acBrand	Schurter

Key Features

Rated current of 3.15 amperes ensures appropriate fuse protection.
Operates at 250 volts alternating current for versatile application usage.
Features a fast-acting fuse characteristic for rapid circuit interruption.
Constructed with a durable thermoplastic body for stable performance.
Designed with radial lead orientation for easy PCB mounting.
Compact size with 5.08 mm body length and 8.35 mm diameter.
Operating temperature range from -55°C to 125°C ensures robust function in diverse environments.
Breaking capacity of 35 amperes for safe handling of fault currents.

Product Description

RS PRO 767-5229 Non-Resettable Fuse is a high-quality, radial fuse designed for reliable protection in electrical and electronic circuits. It is rated at 3.15A current capacity and capable of withstanding 250V AC voltage, making it suitable for a wide range of electrical applications requiring fast-acting protection.

The fuse features a fast-acting characteristic that ensures circuit interruption swiftly upon overcurrent conditions, preventing damage to sensitive components. Its thermoplastic polyamide body provides excellent mechanical strength and heat resistance, ensuring durability and long service life. The fuse’s compact dimensions, including a body length of 5.08 mm, diameter of 8.35 mm, height of 7.7 mm, and a radial lead orientation with 22 mm lead length and 0.62 mm lead diameter, facilitate straightforward PCB mounting and integration into various designs.

Operating safely across temperatures from -55°C up to 125°C, this fuse maintains performance under demanding environmental conditions. It has a breaking capacity of 35 amperes, allowing it to safely interrupt fault currents and protect equipment against electrical hazards.

Compliant with RoHS standards, the RS PRO 767-5229 fuse supports environmentally conscious manufacturing and usage. Its country of origin is Taiwan, Province Of China. Rated current of 3.15A for accurate electrical protection.

250V AC operating voltage for compatible circuit applications. Fast acting fuse characteristic for enhanced safety. Durable thermoplastic body construction. Radial lead orientation optimized for PCB mounting. Compact size enables versatile design integration.

Wide operating temperature range from -55°C to 125°C. High breaking capacity of 35A for effective fault interruption. Complies with international RoHS standards.

This fuse is ideal for use in industrial, electrical automation, manufacturing, and instrumentation applications where precise, reliable circuit protection is critical. It supports safe and efficient electrical system operation, helping prevent damage and downtime associated with overcurrent events.

Explore our wide range of electrical Fuses and components at EnvMart for comprehensive industrial solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The fuse has a current rating of 3.15 amperes, ensuring appropriate protection for electrical circuits.

It operates at a voltage rating of 250 volts alternating current (AC), making it suitable for various applications.

The breaking capacity is 35 amperes, allowing it to safely interrupt fault currents in electrical systems.

The fuse is constructed with a thermoplastic body, providing mechanical strength and heat resistance.

It has a body length of 5.08 mm, a diameter of 8.35 mm, and a height of 7.7 mm, making it compact for PCB mounting.

This model features a radial lead orientation, which facilitates easy mounting on printed circuit boards (PCBs).

The operating temperature range is from -55°C to 125°C, ensuring reliable performance in diverse environments.

It is designed as a fast-acting fuse, which ensures rapid circuit interruption during overcurrent conditions.

Yes, it complies with RoHS standards, supporting environmentally conscious manufacturing and usage.

The fuse has a lead length of 22 mm and a lead diameter of 0.62 mm, suitable for PCB integration.

The country of origin for this fuse is Taiwan, Province Of China.

This fuse is ideal for use in industrial, electrical automation, manufacturing, and instrumentation applications requiring reliable circuit protection.
