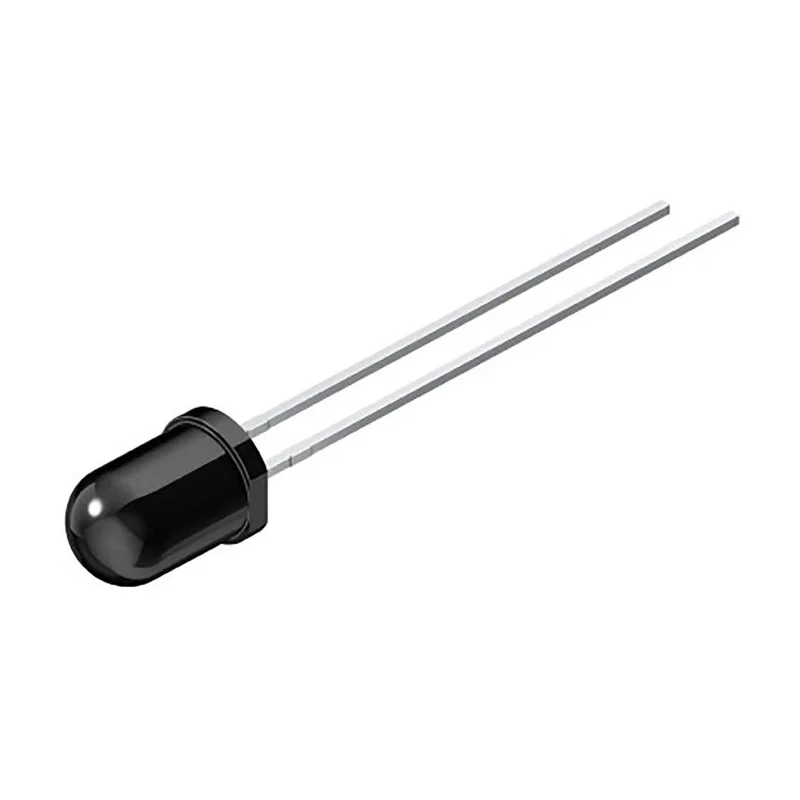

ams OSRAM 950 nm IR LED 5 mm Through Hole Dome Lens Package SFH 4546-AWBW

ams OSRAM SFH 4546-AWBW is a high-performance infrared LED emitting light at a peak wavelength of 950 nm. Packaged in a standard 5 mm (T-1 3/4) through-hole dome lens form factor, this IR emitter is designed to provide efficient and focused infrared radiation for a variety of electronic and optoelectronic applications.

The device boasts a radiant flux of 55 mW and radiant intensity up to 130 mW/sr, allowing for strong IR light output while maintaining a narrow emission beam with a half intensity angle of 20°. It is mounted easily onto printed circuit boards with its through-hole configuration and features a two-pin design for simple electrical connection.

This IR LED complies with international safety standards IEC 60825-1 and IEC 62471, ensuring safe operation for industrial and laboratory usage. With a maximum supply voltage rating of 5 V, it integrates well with typical low-voltage control systems and instrumentation.

Manufactured in Malaysia by ams OSRAM, a leader in optoelectronic components, this product suits numerous use cases including industrial automation, electronic component signaling, sensor systems, and IR communication devices.

The dome lens shape enhances light focusing, making it suitable for targeted IR illumination in laboratory equipment, manufacturing setups, and commercial electronics. Its compact and standardized form factor facilitates easy replacement or system design upon existing infrastructures.

The LED has a peak wavelength of 950 nm suitable for infrared applications. It features a radiant flux of 55 mW and radiant intensity of 130 mW/sr. The device includes a dome-shaped lens for focused IR light projection. Standard 5 mm (T-1 3/4) through-hole mounting type ensures compatibility with various circuit boards.

Its narrow half intensity angle of 20 degrees provides directed emission for precise optical uses. Maximum supply voltage is 5 V, supporting typical low-voltage electronic circuits. Single LED unit with two pins enables straightforward electronic integration.

Meets IEC 60825-1 and IEC 62471 standards for safety and reliability. Manufactured in Malaysia ensuring quality production standards. Ideal for applications in electronic components, power connectors, and optoelectronic devices.
